Specifications
Automatic uncoiler machine with hydraulic systemCapacity upon 30 MT
Used in slitting line and cut to length line
Slitting line can do uncoiling , slitting and recoiling works ,make coil steel to any need width coil steel .It mainly includes coil car, uncoiler , coil guide , straightener , cut to length machine ,slitter , scrap winder, tendion stood , recoiler ,hydraulic system ,electric system etc .
It mainly used in coil or hot rolling carbon steel ,selicon steel , stainless steel, galvanized sheet, color plate and other kinds of metal materials. This line can be adjusted to do rewinding or dividing work to meet customer`s demand .

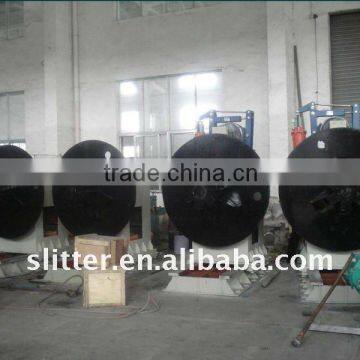

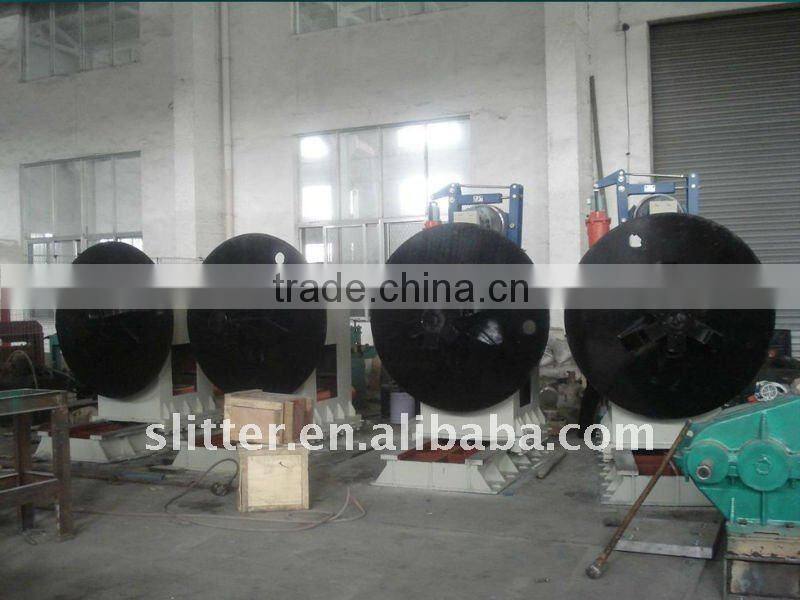

China automatic slitting line machine for thickness 4-8 mm metal plate uncoiler

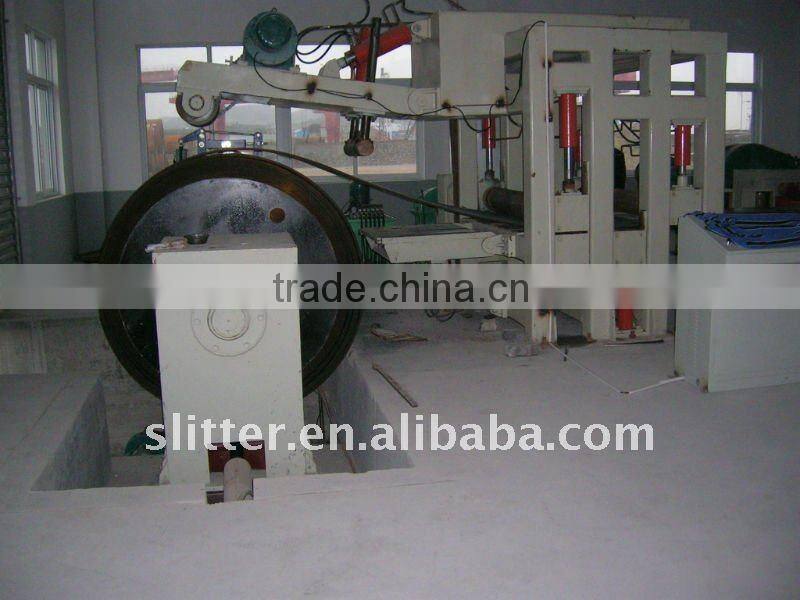

The decoiler can handle the coil and be capable of feeding the roil into the
slitting line, and also rewinding partially consumed roils, so they can be
re-strapped whilst still on the mandrel, before returning to Coil Storage Facility
for use at a later date.
Structure
The coil is handling and collapsed by double head. Steel fabricated duly machined, mounted on heavy duty shafts on antifriction bearings. The individual body of fabricated steel construction and the whole housing slide on sub ease frames on guides arrangement.
Pneumatic controlled braking system is provided to minimize over running of
the coil with tension. A brake is provided to stop the line whenever the line stops for any reason.
Main Technical Date
Model of operation sliding by hydraulic cylinder
Capacity 30MT (max)
Inner Daimeter Φ508 mmΦ610mmΦ760mmΦ850mm
Back tension hydraulic breake
Coil O.D 1000-2000mm
