Specifications
Straightener1.High flattening precise straightener
2.High efficiency Competitive price strightening line
3.Applied to CRS
4x1600 china sixfold stainless steel coil straightening machine
1. specifications
a. applied to :Carbon steel, Galvanized and prepainted steel, aluminum
b. material quality : first class steel coils of the international standard
c. Tensile strength:δb≤450Mpa
d. thickness:0.3-3 mm
e. width :1600(Max)
f. diameter of leveling rollers:φ65mm
g. distance of leveling rollers:70mm
h. material of leveling roller:GCr15,hardness:HRC55-60
i. weight of machine:around 15T
2. Finished products parameters:
a. diagonal tolerance:≤±2mm/2000mm
b. length tolerance:≤±1mm/2000mm
3. other parameters :
a. power :380V/50Hz/3Ph
b. line speed:0-30m/mi
Introduction of 4x1600 china sixfold stainless steel coil straightening machine:
1.It is designed as the six fold pre-leveling machine which can improve the leveling precision and the sheets surface quality.
2.Structure: It is consist of two rows leveling rollers, two rows middle upporting roller, two groups supporting rolling wheel, drive devices, two pinch roller and frame, etc. Both sides of each rolling wheels are driven by pinwheel bearing. 17 leveling rollers has the drive and the diameter of the rollers is 65mm and the distance between the rollers is 70mm. 19 pieces middle rollers’ diameter is 65mm. 2 pinch rollers surface is covered with polyurethane to prevent the sheets from being scratched. The supporting roller wheels are divided into three groups for both and up and down .
3.The function of the middle rollers are to balance the force on the leveling rollers and reduce the friction to the rollers and plate, ensure high quality leveling surface.
4.The supporting roller wheel is to support the supporting roller. It can adjust separately to adapt to the different material.
5.The working rollers can be adjusted the gap electrically; also it can be controlled by 2 hand wheels to ensure the leveling quality.
6.Driving model: all the independent rollers and gear box are driven by 30KW frequency control motor.
7.Roll process: raw material- rough machining - hardening HRC55-60 -finishing grinding- hard chromium plating
8.It is equipped with the electrical system .

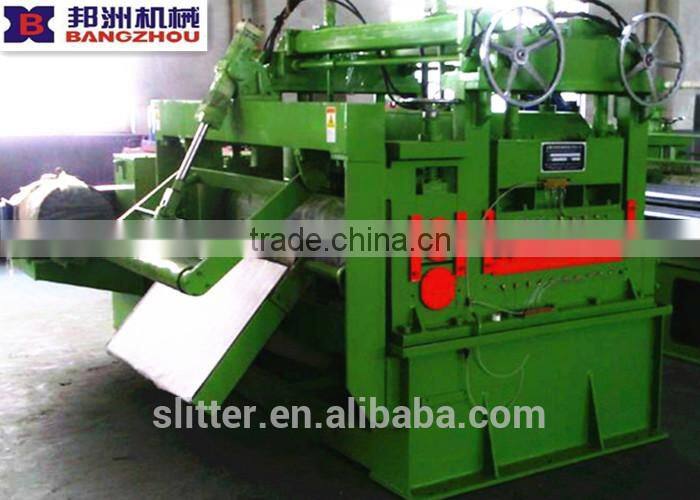

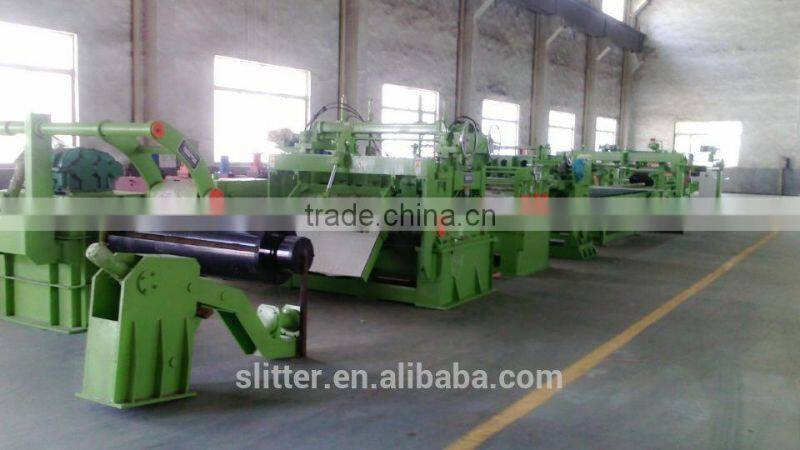

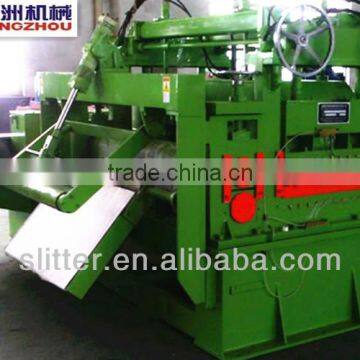

Pictures shows of 4x1600 china sixfold stainless steel coil straightening machine :
