Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | BZ |
Model Number: | ZJX 0.3-3X1600 | Voltage: | 380V | Rated Power: | 200KW |
Dimension(L*W*H): | 30mx8m | Weight: | 30T | Certification: | CE |
Warranty: | 1 YEAR | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Cold rolled steel roll Slitting line
Technical parameters of Cold rolled steel roll Slitting line :
1. | application | CRNGO, Galvanzied steel |
2. | Thickness of coiled plate | 0.3-3mm |
3. | Width of coiled plate | 1600mm |
4. | width tolerance | ±0.05mm/2M |
5. | Slitting speed | 0-120m/min |
6. | Loading capacity | 15T |
7. | Coil I.D | 480-510mm |
8. | Coil O.D | ≤1800mm |
9. | Knife pivot diameter of slitting | 200mm |
10. | Slitting blade | 200×340×20 |
11. | Material of slitting blade | 6CrW2Si |
12. | Hardness of blade | HRC58°—60° |
13. | Recoiler I.D | 508mm |
14. | Power | 380V three-phase 50Hz |
15. | Size | 30mx8m |

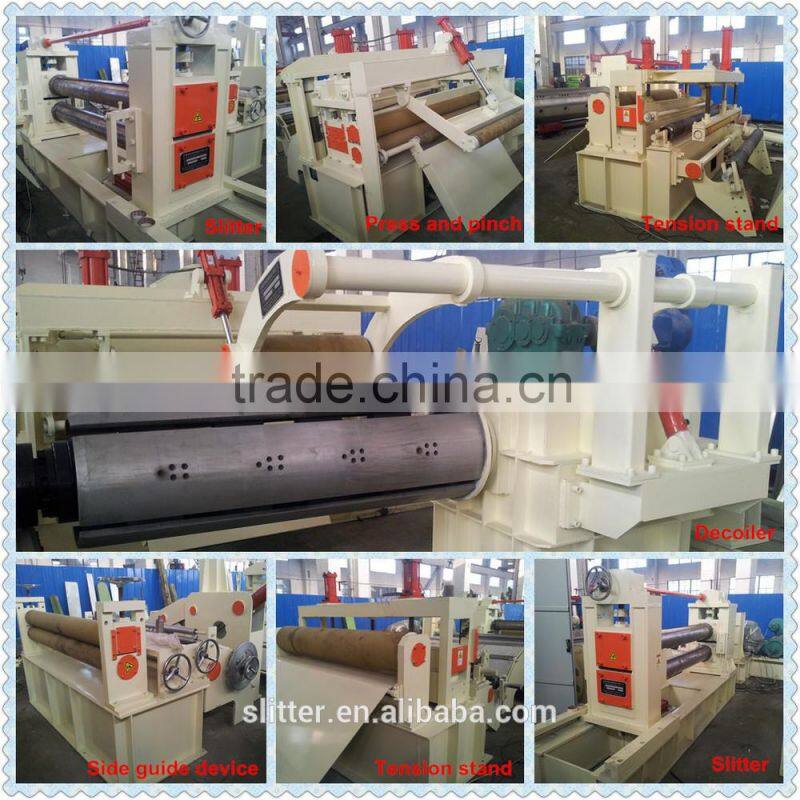

Composed device of Cold rolled steel roll Slitting line :
1.Hydraulic coil car
2.Hydraulic decoiler
3.Hydraulic guiding and press, pinch and pre-leveling device
4.Head-cutting machine
5.Looper I
6.Slitting machine
7.Scrap winder
8. Looper II
9.Tension stand---damping device for pre-dividing and pressing
10.Recoiler
11.Hydraulic unload car
12.Elecronic control system
13.Hydraulic system

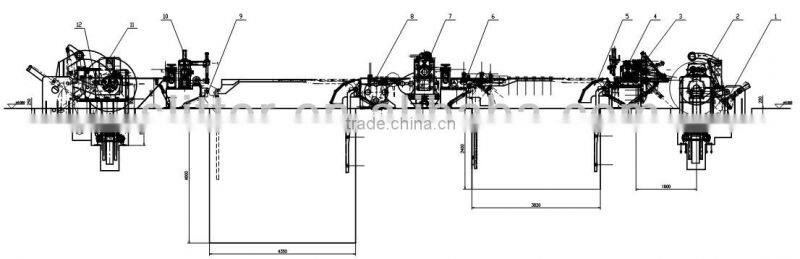

Sample layout of the slitting line
Characteristics:
1. Automatic procedure which is very easy to operate
2. High speed can make the high output amount to maximize the slitting machine's function and value.
3. Stable with the DC motors to make the whole line speed stable.

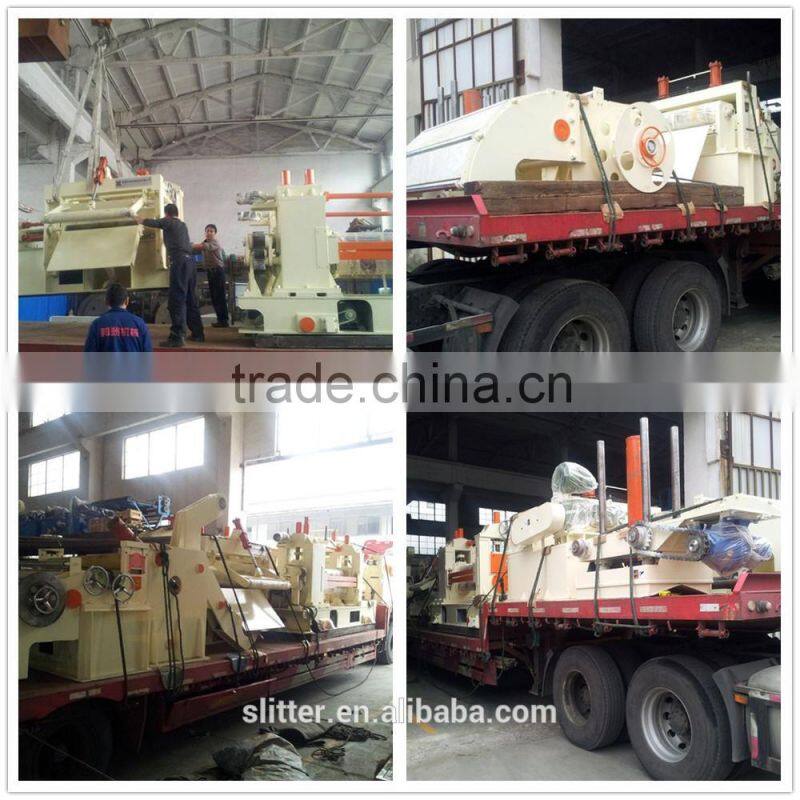

1. Package: Machine devices will be Naked and all the roller parts will be antirust treatment to
protect the rollers. All the spare parts will be collected into the homemade steel boxes
2. Delivery: 100 days
3. Container: 1x40OT and 2x40GP
4. Shipping: All the parts in the containers will be strengthened with the container to prevent
the deveices from being slipped
*****Wuxi Bangzhou Machinery Manufacturing Co.,Ltd can design the machine as per your specific requirements.
*****We can help you to deliver the machiens to your country.
***** We can make the engineers available to install the machines for you and also teach your workers how to operate the machine and fix the problems with the machine.

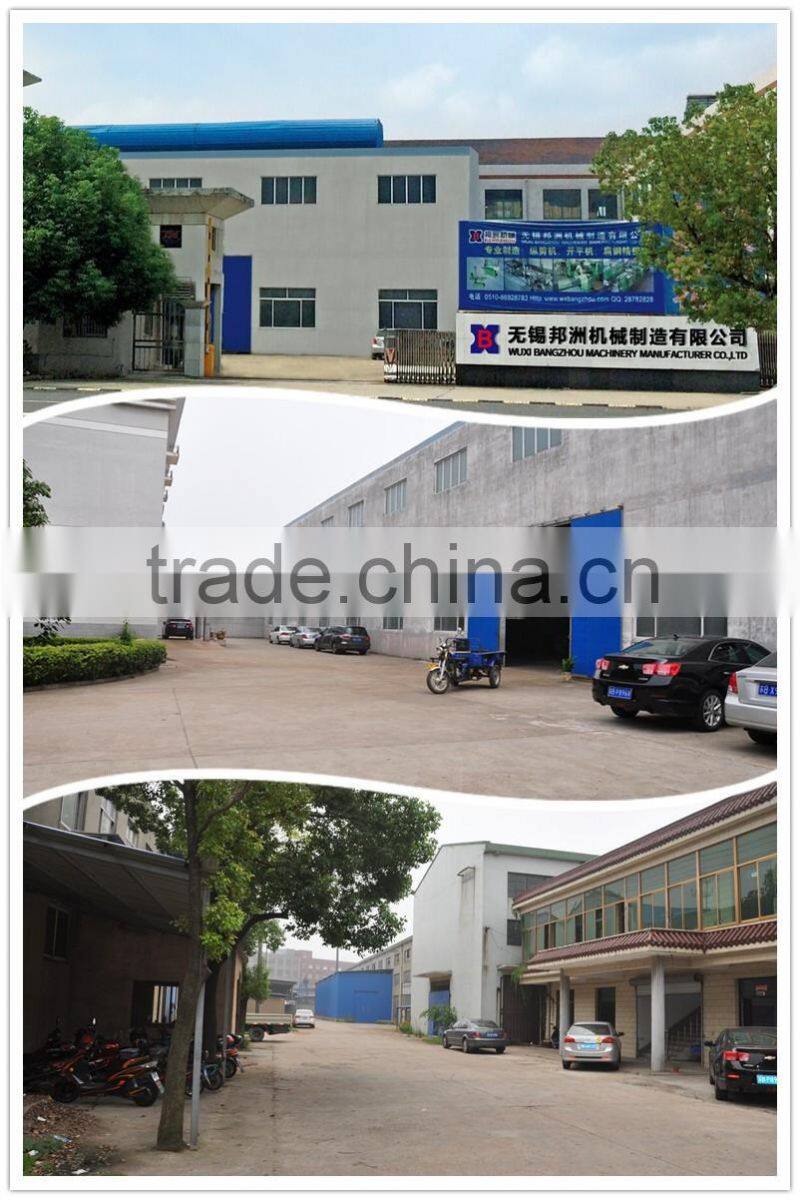

Wuxi Bangzhou Machinery Manufacturing Co., Ltd. is located in Changjing Industrial Park, Jiangyin, Wuxi with beautiful environment and very convenient transportation. We are one of the most professional machinery manufacturers in China, integrating design, production, sale and after-sales services.
Our main products are Steel coil slitting lines, cut to length lines, Straightening machines, Automatic crosscut units and Hydraulic shearing machines. Our products are supplied to cold rolling and pipe welding factories and our machine can be also applied to other industril field which connect to the metal material.
With our best service and machines' high quality,we have gained a great reputation in the field and our products are exported to many countries and regions, such as Southeast Asia, Europe, America and Africa.
We welcome all friends to visit us. We are sincerely looking forward to receive your guidance and business cooperation!
Characteristics:
1. Automatic procedure which is very easy to operate
2. High speed can make the high output amount to maximize the slitting machine's function and value.
3. Stable with the DC motors to make the whole line speed stable.
Welcome to our company, contact us, more details will send to you.
Contact Us
- Wuxi Bangzhou Machinery Manufacturing Co., Ltd.
- Contact nameDAVID SHEN
- Phone0086-0510-86928783
- AddressSouth Of Guanmiao, Changdong Rd., Changjing Town, Jiangyin
