16x2200 slitter-leveler- cut to length line
Technical process:
Loading–decoiler-pinch-feed-guide-slitting-scrap winder-transition table-guide-straightening-coded fixed-length device-cutting-unloading-stacker
parts of the line
No |
Name |
Quantity |
1 |
V shape base |
1UNIT |
2 |
Hydraulic coil car |
1UNIT |
3 |
Two head decoiler |
1UNIT |
4 |
Press and pinch and feed device |
1UNIT |
5 |
roller table |
2UNIT |
6 |
side guide |
2UNIT |
7 |
slitting machine |
1UNIT |
8 |
scrap winder |
1UNIT |
9 |
straightening machine |
1UNIT |
10 |
coded fixed-length device |
1UNIT |
11 |
Tail plate press and pinch device |
1UNIT |
12 |
cutter |
1UNIT |
13 |
swing-type press and pinch device |
1UNIT |
14 |
stacker |
1UNIT |
15 |
Hydraulic system |
1UNIT |
16 |
Electrical control system |
1UNIT |

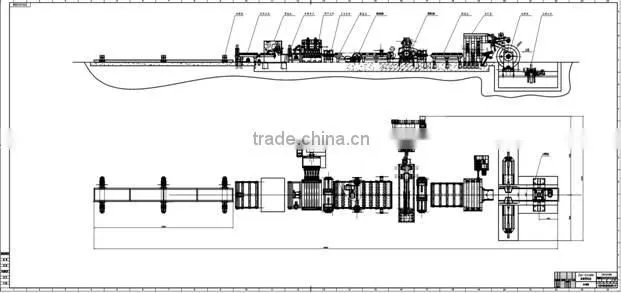

layout of the whole line
Main Technical parameters and Technical process
No |
Parameter name |
Unit |
parameter |
1 |
Control tape |
|
PLC control |
2 |
Application material |
|
carbon coil |
3 |
Thickness |
mm |
6-16 |
4 |
width |
mm |
800~2200 |
5 |
coil I.D |
mm |
Φ500-800 |
6 |
Coil O.D |
mm |
≤2200 |
7 |
weight |
Ton |
≤35 |
8 |
diameter of leveling rollers |
mm |
190 |
9 |
number of the leveling rollers |
|
11 |
10 |
material of leveling roller |
|
GCr15 |
11 |
material of the cutter |
|
9CrSi |
12 |
line speed |
m/min |
≤25 |
13 |
Direction |
|
from right to left ( face to the production line) |
14 |
Length tolerance |
|
L=2m≤±2 mm |
15 |
diagonal tolerance |
|
L=2m≤±3 mm |
Wuxi Bangzhou Machinery Manufacturing Co., Ltd. is located in Changjing Industrial Park, Jiangyin, Wuxi with beautiful environment and very convenient transportation. We are one of the most professional machinery manufacturers in China, integrating design, production, sale and after-sales services.
Our main products are Steel coil slitting lines, cut to length lines, Straightening machines, Automatic crosscut units and Hydraulic shearing machines. Our products are supplied to cold rolling and pipe welding factories and our machine can be also applied to other industril field which connect to the metal material. We welcome all friends to visit us. We are sincerely looking forward to receive your guidance and business cooperation!
<img src="/kf/HTB1Nj3MHpXXXXX6XpXXq6xXFXXXW/200854612/HTB1Nj3MHpXXXXX6XpXXq6xXFXXXW.jpg" width="689" height="689" style="margin: 0px; padding: 0px; width: 689px; height: 689px; color: transparent; line-height: inherit; font-size: 0px; font-style: inherit; font-weight: inherit; vertical-align: middle; display: inline;" ori-width="1000" ori-height="1000"><img src="/kf/HTB1Nj3MHpXXXXX6XpXXq6xXFXXXW/200854612/HTB1Nj3MHpXXXXX6XpXXq6xXFXXXW.jpg" width="689" height="689" style="margin: 0px; padding: 0px; font-size: 0px; font-style: inherit; font-weight: inherit; line-height: inherit; vertical-align: middle; color: transparent; width: 689px; height: 689px; display: inline;" ori-width="1000" ori-height="1000">
Our Advantages
1.we can do the designs according to the customers'requirement
2. We can give you the best suggestions to meet your machine requirements
3.we can offer you the high quality & reasionalble price
4.we can offer your a good after-sell service
5.we have strong professinal design and production team
6. promptly delivery. small order is welcome.
Welcome to our company like them
1. Package: Machine devices will be Naked and all the roller parts will be antirust treatment to
protect the rollers. All the spare parts will be collected into the homemade steel boxes
2. Delivery: 90 days
3. Container: 1x40OT and 2x40GP
4. Shipping: All the parts in the containers will be strengthened with the container to prevent
the deveices from being slipped
*****Wuxi Bangzhou Machinery Manufacturing Co.,Ltd can design the machine as per your specific requirements.
*****We can help you to deliver the machiens to your country.
***** We can make the engineers available to install the machines for you and also teach your workers how to operate the machine and fix the problems with the machine.
