Specifications
1. make the edging side become blunt and smooth;2. straightening-chamfeing-cutting 3 in 1;
3.can make the four angles round.

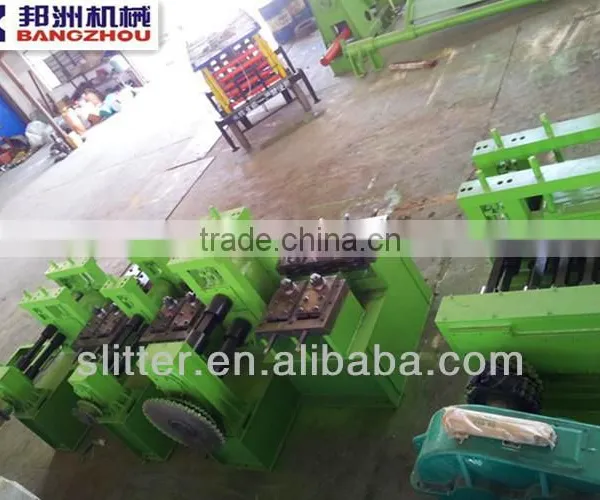

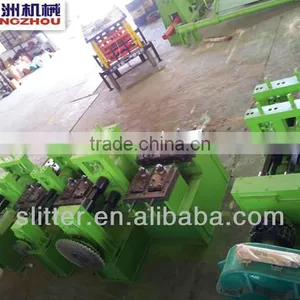

BG-6-12X200 flat bar leveling and cut to length line machine
1. Technical parameters
A. Applied to: carbon steel
B. Tensile strength:δb≤450Mpa,δS≤260Mpa
C. Flat bar thickness:6mm-12mm
D. Flat bar width: 25mm-200mm
2. Finished parameters
A. Precision of width: +0.3~-0.9mm
B. Precision of fixed length:0~+5mm
C. Bending:≤2.5mm/m
D. pitch of cutting: ≤2mm
3. Other parameters
I. Line speed: 30m/min
J. Production: incessantly.
K. Operation person: 1 technician and 1 common worker.
Composed devices of BG-6-12X200 flat bar leveling and cut to length line machine:
1. Simplified de-coiler
2. 7 roller-straightener with drive
3. Chamfering and extrusion machine
4. 2 roller-pinch and press device
5. Longitudinal straightener
6. Flat surface straightener
7. Hydraulic tracking cutting machine
8. Fixed length receive table
9. Electrical control system
The layout of BG-6-12X200 flat bar leveling and cut to length line machine:
BG-3-12X200 flat bar leveling and cut to length line machine :
