Help CenterBG12x200 Steel Flat Bar Straightening and Cutting Machine
Related Products
-
China Automatic Flat Bar Straightening and Cut to Length LineNegotiableMOQ: 1 Set -
Flat Steel Deburring, Straightening and Cut to Length MachineUS$ 20,000 - 22,000MOQ: 1 Set
-
Flat Bar Straightener and Cutting Machine /chamfering and Deburring MachineUS$ 20,000 - 40,000MOQ: 1 Set
-
Flat Steel Deburring, Straightening, Cutting MachineUS$ 20,000 - 22,000MOQ: 1 Set
-
Flat Steel Chamfering, Straightening and Cutting MachineUS$ 20,000 - 22,000MOQ: 1 Set
Specifications
Steel flat bar straightening and cutting machine1. Chamfering
2. deburring
3. straightening
4. Cutting(coil to strips)
BG12x200 steel flat bar straightening and cutting machine
1. Technical parameters of steel flat bar straightening and cutting machine:
A. Applied to: stainless steel
B. Tensile strength: δb≤450Mpa,δS≤260Mpa
C. Flat bar thickness: 6-12mm
D. Flat bar width: 25-200mm
2. Finished parameters of steel flat bar straightening and cutting machine :
A. Precision of width: +0.3~-0.9mm
B. Precision of fixed length: 0~+5mm
C. Bending: ≤2.5mm/m
D. pitch of cutting: ≤2mm
3. Other parameters of steel flat bar straightening and cutting machine :
A. Line speed: 30m/min
B. Production: incessantly.
C.Operation person: 1 technician and 1 common worker
4.Composed devices of steel flat bar straightening and cutting machine :
1. Simplified decoiler
2. 7 roller-straightener
3. Deburing and extrusion machine
4. 2 roller-pinch and press device
5. Longitudinal straightener
6. Flat surface straightener
7. Hydraulic tracking cutting machine
8. Fixed length receive table
9. Electrical control system

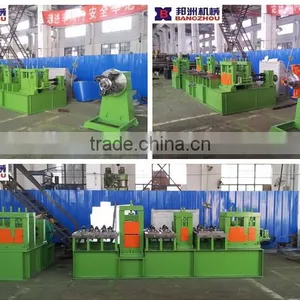

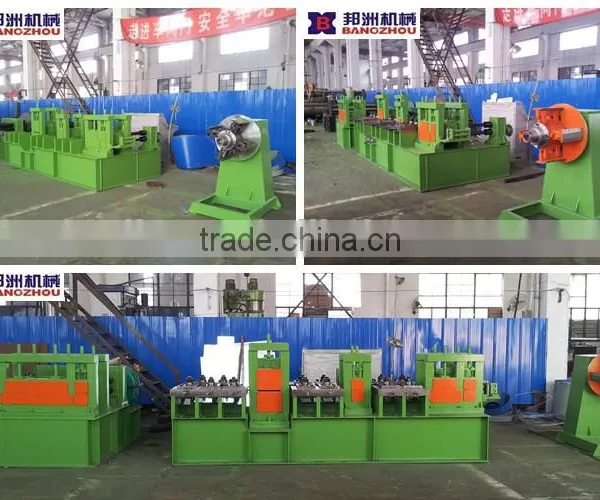

The layout of steel flat bar straightening and cutting machine
1. Container: The whole line needs one 40GP container
2. Packing: it is nude. But all the rollers are covered with the oil to anti-rusty.
3. Delivery time: 70 days after the down payment
4. Shipping: We will keep informing you about the production schedual and when the machine can be deliveryed.
5. We do Your care, Machine Loading
Because of the long trip and your super trust, we will make sure the machine can be appeared in front of you in fully good condition, you will fall in love with it with first glimpse.
For this BG12x200 steel flat bar straightening and cutting machine
1.we can do the designs according to the customers'requirement
2. We can give you the best suggestions to meet your machine requirements
3.we can offer you the high quality & reasionalble price
4.we can offer your a good after-sell service
5.we have strong professinal design and production team
6. promptly delivery. small order is welcome.
Wuxi Bangzhou Machinery Manufacturing Co., Ltd. is one of the most professional machinery manufacturers in China, integrating design, production, sale and after-sales services.
Our main products are Steel coil slitting lines, cut to length lines, Steel Flat bar chamfering, deburring and straightening machines, . Our products are supplied to roll forming machine and pipe welding factories and can be also applied to other industries which connect to the metal material.
With our best service and machines' high quality,we have gained a great reputation in the field
We welcome all friends to visit us. We are sincerely looking forward to receive your guidance and business cooperation!
Why Wuxi Bangzhou?
1), Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2), Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3), Q: How does your factory do regarding quality control?
A: Quality is priority. Wuxi Bangzhou People always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
4), Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name
components
5), Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. Wuxi Bangzhou is ALIBAB's Gold supplier with BV assessment. If you check with ALIBABA, you will see that we have never got any complaint from our customers.
Thank you for your visiting. Any questions, please feel free to contact us.
Exhibition
Every year, 15th -19th April and 15th-19th October, our company will be in the Canton Fair 7.1 C03
Welcome to visit our booth!!!!!!
