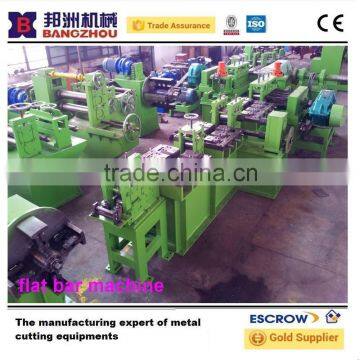

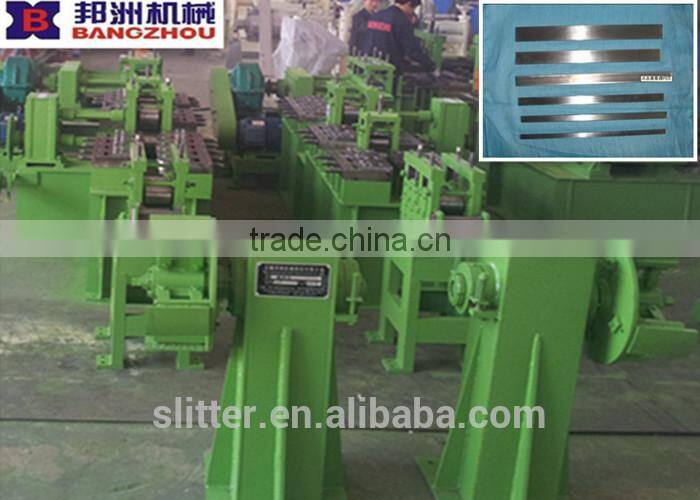

hot rolled steel flat bar chamfering and straightening machine
Technical parameters:
| 1. | Application | hot rolled steel, galvanized, etc |
| 2. | Thickness of coil plate | 1-6mm |
| 3. | Width of coil plate | 10-100mm |
| 4. | Precision of width | +0.3~-0.9mm |
| 5. | Precision of fixed length | 0~+5mm |
| 6. | Bending | ≤2.5mm/m |
| 7. | Pitch of cutting | ≤2mm |
| 8. | Line speed | 30m/min |
| 9. | Production | incessantly |
| 10. | Operation person | 1 technician and 1 common worker |
| 11. | Power | 380V three-phase 50Hz |
| 12. | Size | 12mx4m |
| 13. | Color | green, as your require |

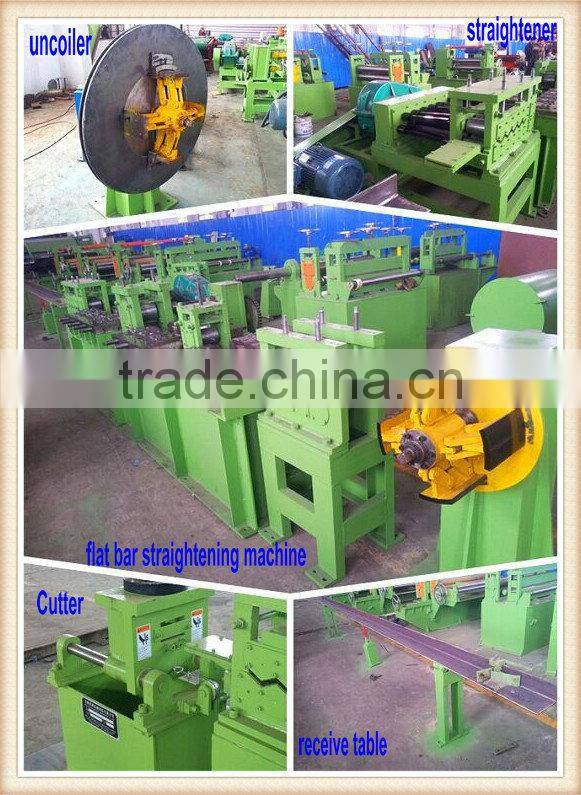

Composed device:
1. Simplified decoiler
2. 7 roller-straightener
3. Deburing and extrusion machine
4. 2 roller-pinch and press device
5. Longitudinal straightener
6. Flat surface straightener
7. Hydraulic tracking cutting machine
8. Fixed length receive table
9. Hydraulic system
10. Electrical control system

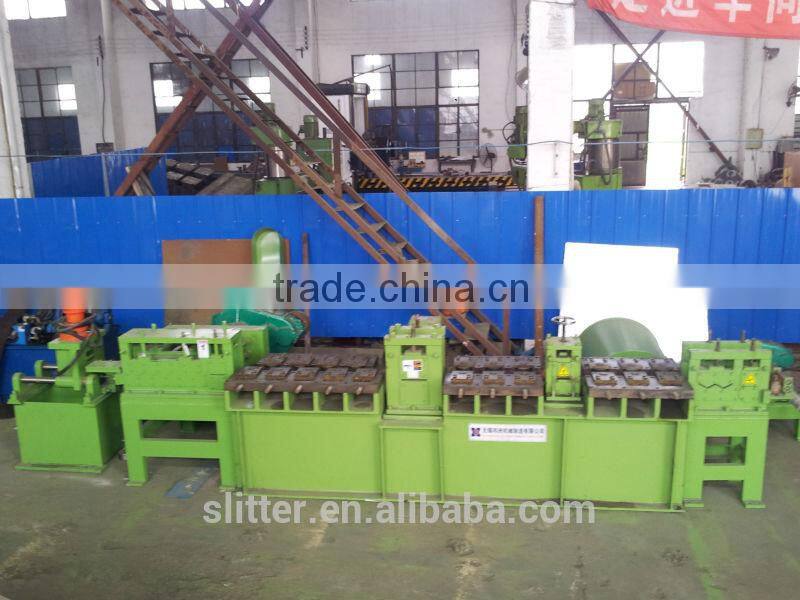

Sample layout of the flat bar straightening machine
Characteristics:
1. Automatic procedure which is very easy to operate
2. Incessantly production can make the high output amount to maximize the flat bar straightening machine's function and value.

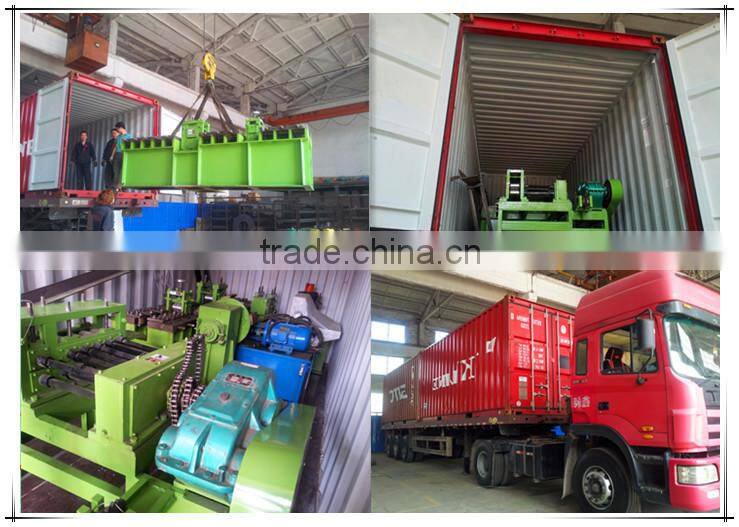

1. Package: Machine devices will be Naked and all the roller parts will be antirust treatment to
protect the rollers. All the spare parts will be collected into the homemade steel boxes
2. Delivery: 45-60 days
3. Container: 1x20GP
4. Shipping: All the parts in the containers will be strengthened with the container to prevent
the deveices from being slipped.
*****Wuxi Bangzhou Machinery Manufacturing Co.,Ltd can design the machine as per your specific requirements.
*****We can help you to deliver the machiens to your country.
***** We can make the engineers available to install the machines for you and also teach your workers how to operate the machine and fix the problems with the machine.
Wuxi Bangzhou Machinery Manufacturing Co., Ltd. is located in Changjing Industrial Park, Jiangyin, Wuxi with beautiful environment and very convenient transportation. We are one of the most professional machinery manufacturers in China, integrating design, production, sale and after-sales services.
Our main products are Steel coil slitting lines, cut to length lines, Straightening machines, Automatic crosscut units and Hydraulic shearing machines. Our products are supplied to cold rolling and pipe welding factories and our machine can be also applied to other industril field which connect to the metal material.
With our best service and machines' high quality,we have gained a great reputation in the field and our products are exported to many countries and regions, such as Southeast Asia, Europe, America and Africa.
We welcome all friends to visit us. We are sincerely looking forward to receive your guidance and business cooperation!
Characteristics:
1. Automatic procedure which is very easy to operate
2. High speed can make the high output amount to maximize the slitting machine's function and value.
3. Stable with the DC motors to make the whole line speed stable.
Welcome to our company, contact us, more details will send to you.
