1,Overview
ST3203 CuteOTDR combines the industry’s leading OTDR technology with visible laser source in one hand-held unit. Optimized for point-to-point testing of passive optical networks (PON), it offers several wavelength configurations and a wide range of options, for first-class flexibility and full coverage of short-haul OTDR test applications.
The ST3203 CuteOTDR offers a smart software option that provides pass/fail status at all wavelengths, as well as span loss, ORL, fiber length and macro bend locations in a single window.
2,Main functions and features
-- Test smart, accurate, and direct fiber link given event type, location and loss information
-- Simple, fast, without complex training, suitable for field operation
-- Event dead zone less than 5m
-- Attenuation dead zone less than 10m
-- USB-based OTDR, large data storage
-- 650nm visible light output
-- Hand-held design, compact and lightweight
-- Anti-seismic, shockproof protective
-- 2.5mm universal connector, FC / ST / SC exchangeable
-- Low-power design, suitable for AA-size alkaline batteries
-- Auto shutdown power saving design
3,Specifications
Regular OTDR Specifications | |
Available wavelength |
1310 or 1550nm |
Fiber type |
Single mode fibers |
Photo detector |
InGaAs |
Pulse Duration |
20,50,100,200,500,1000ns |
Max. Measurement Distance |
60km |
Dead Zone |
5m(Reflective Event) <10m(Non-reflective Event) |
Loss Measurement Accuracy |
0.1dB/dB |
Visual Light Output |
650nm |
Distance Accuracy |
+/-2(m)+3×10-3×distance+/-2(m)+3×10-3×Distance |
Power Supply |
1.5V Battery×3 |
Data storage |
100 event information |
General Specifications | |
Fiber Connector |
FC/PC |
Operating Temperature |
0℃~+50℃ |
Storage Temperature |
-20℃~+60℃ |
Operating Humidity |
0~90% R.H. Non-condensing |
Dimensions(L×W×H) |
210×120×54mm |
Weight |
500g |

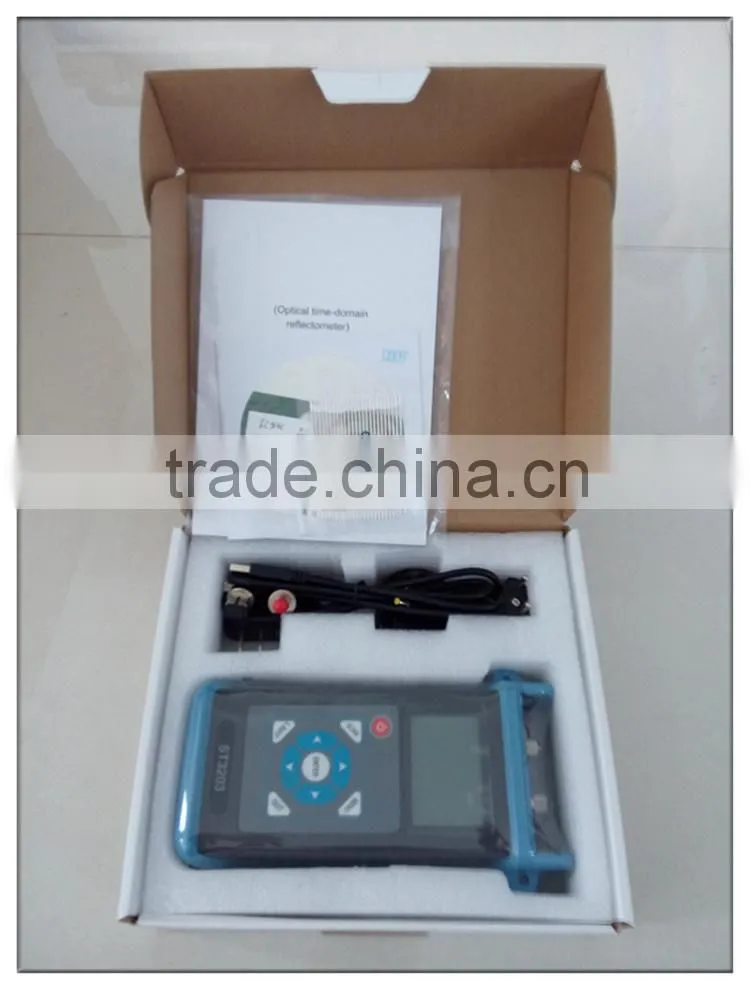

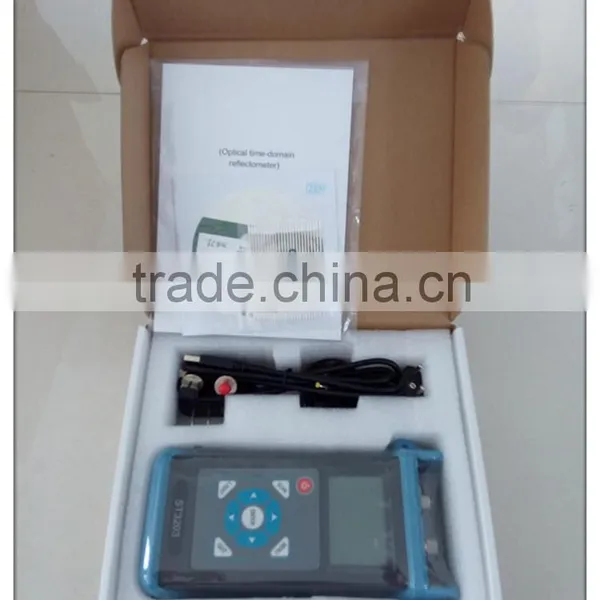

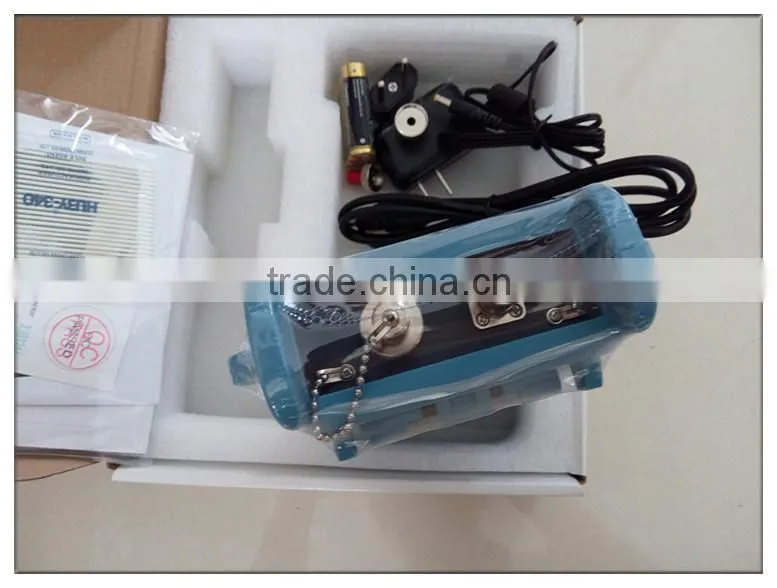

4,Ordering Information
NO. |
Items |
Quantity |
1 |
ST3203 OTDR |
1 |
2 |
FC Adapter |
1 |
3 |
User Manual |
1 |
4 |
USB Data Cable |
1 |
5 |
CD |
1 |
6 |
1.5V AA-size alkaline batteries |
3 |
7 |
Power Adapter |
1 |
8 |
Quality Certificate |
1 |
9 |
BB-002 Clean Cotton Stick |
1 |
