I. Brief Introduction
As fiber optics plays more and more important role in modern telecommunication and CATV networks, the requirements to the construction, test and maintenance of fiber optics links also become more prominent.

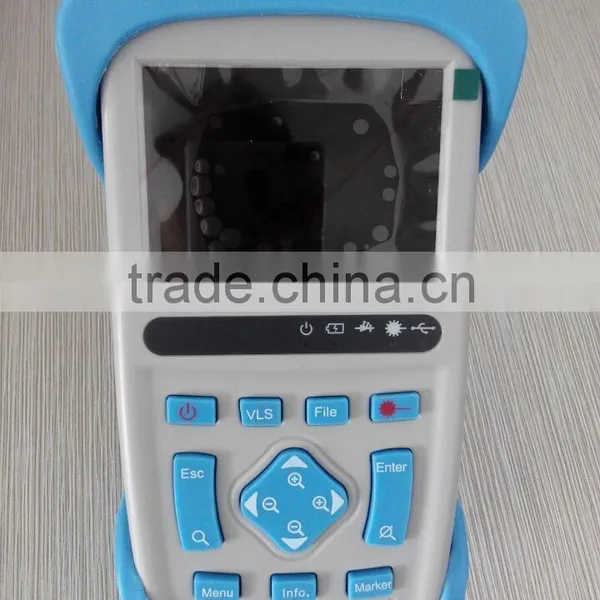

ST3300-1625 is a unique product mainly designed for construction and maintenance of telecommunication and CATV networks. ST3300-1625 can be widely used in engineering construction, maintenance test and emergency repair of all fiber optics related systems. Comparing with a regular OTDR, ST3300 is more compact in size and easier for field use.
ST3300-1625 has handheld design, compact and lightweight, easy to carry. Event information through TFT color display and data storage capabilities. Through the USB interface, the test data can be uploaded to the PC, to facilitate the post-processing, archiving and printing.
II. Main Features
-- Hand-held design, compact and lightweight;
-- Anti-seismic, shockproof and appropriate for field operation.
-- 1625nm wavelength,with belt filter, support FTTx online test
-- Starting in 3 seconds measuring immediately
-- 1.8m event blind zone, simple test of fiber patch cord
-- The maximum measure distance is 160km
-- Can store more than 10000 curve information
-- Can choose various test mode: automatic / manual / average / real time
-- High Capacity SD card
-- Low-power design, optical lithium battery
-- VFL (Visual Fault Location) function
-- Multiple light outputs, FC as standard ST/SC optional and exchangeable
-- OTDR Viewer software for data analysis,edit and printing.
III. Specification
Sub-Model |
ST3300-1625A |
ST3300-1625B |
Wavelength |
1625nm |
|
Sensing Fiber |
Single mode fibers |
|
Dynamic Range (dB) |
30 |
33 |
Pulse Duration(ns) |
10/20/50/100/200/500/1us/2us/5us/10us/20us |
|
Even Dead Zone(m) |
≤1.8m |
|
Attenuation Dead Zone |
≤10m |
|
Attenuation Detect Accuracy(dB/dB) |
±0.05 |
|
Loss Threshold |
0.01 |
|
Loss Resolution(dB) |
0.01 |
|
Sampling Resolution(m) |
0.16-5(0.16 0.32 0.64 1.28 2.56 5.08) |
|
Distance Measure Accuracy(m) |
±(1m+5×0.005%×distance+sampling space) |
|
Max Measuring Distance (km) |
1-160Km |
|
Data Storage |
>10000 records |
|
Storage Format |
.sor bellcore file |
|
Averaging Time |
5s,15s,30s,1min,2min,3min |
|
General Specifications | ||
Dimensions(H×W×T) |
210*112*67mm |
|
Weight |
1kg |
|
Screen resolution |
320*240,3.5 inch. |
|
Temperature |
Operating Temperature 0℃-50℃ |
|
Storage Temperature -20℃-60℃ | ||
Relative Humidity |
0%-95%(non-condensing) |
|
Battery life |
>10 hours |
|
Interface Type | ||
Connector |
FC(ST/SC Interchangeable)/PC |
|
Connectivity |
USB/SD card |
|
Matching Function Modules | ||
Visible Fault Locator |
Wavelength: 650nm; Farthest distance test:5Km |
|
|
Notes: The Specification describes the guaranteed performance with the typical PC type connector when measuring; not consider the uncertainty because the refractive index of the fiber. The dynamic range is SNR =1 the maximum pulse width within averaging time of 3 minutes Conditions for dead zone measurement: reflection strength beleow-45dB, Event Dead Zone with 10ns pulses width measurement, Attention Dead Zone 50ns pulse width measurement. Not include the uncertaint due to refraction of the fiber. The products with different specifications, sampling rate will be different | ||
IV. Applications
Telecommunication construction and maintenance
CATV construction and maintenance
Cabling system
Optical components production and research
Other fiber-optics projects
