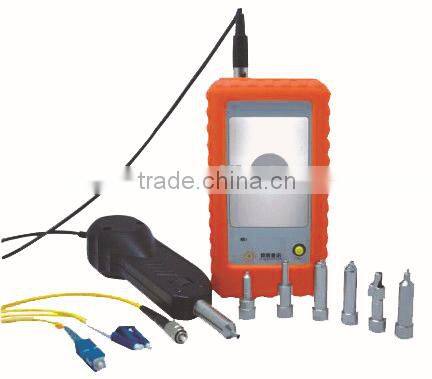

Help CenterSTS824 Video Fiber Optic Connector Inspection Probe/Microscope
Related Products
-
STS822 Fiber Optic Connector Cleaner Cassette Tape Cleaner Cleaning CassetteUS$ 1 - 30MOQ: 1 Set -
STS822 Fiber Optical Tape Connector Cleaning Cassette 800+ CleansUS$ 1 - 30MOQ: 1 Set
-
STS822 Optical Fiber Clean Cassettes Cleaner BoxUS$ 1 - 30MOQ: 1 Unit
-
STS822 Optical Fiber Connector Cleaner Tool Cassette Fiber TapeUS$ 1 - 30MOQ: 1 Unit
-
STS822 Optic Fiber Connector Cleaner Tape Connector Cleaning CassetteUS$ 1 - 30MOQ: 1 Unit
I. Brief Introduction
This product is a portable video microscope used to inspect all kinds of fiber optic terminations, especially for the female ones. It eliminates the need to access the backside of patch panels or disassemble hardware devices prior to inspection.
II. Features
1 Convenient using both for male and female adapters;
2 Widely used in DWDM, SDH, SONET etc.
3 Magnification: 250* via 3.5’’ 220,000 pixels TFT LCD;
4 Available for USB 2.0 interface on PC and data saving
III. Specifications
Magnification |
400x (9’’ Monitor) 250x (3.5’’ Monitor) |
Resolution Ratio |
0.5 um |
Display Screen |
3.5’’ TFT-LCD, 960x240 pixels |
Video Output |
NTSC / PAL |
Other Parts
Power Supply |
3.7V 4500mA / 5V 1A Li Battery |
Weight |
1.5kg |
Work/Storage |
-20°C~+50°C -30°C~+60°C |
Applications
Tips Type |
Function Description |
25-U-M |
FC/SC/ST/E2000 patch cord UPC connector |
125-U-M |
LC/MU patch cord UPC termination |
25-A-M |
FC/SC/ST/E2000 patch cord APC connector |
125-A-M |
LC/MU patch cord APC termination |
25-U-F |
FC/SC/ST/E2000 UPC bulkhead |
LC-U-F |
LC UPC bulkhead |
SC-A-F |
SC APC bulkhead |
FC-A-F |
FC APC bulkhead |
LC-A-F |
LC APC bulkhead |
IV. Ordering Information
|
Standard Accessories |
Inspection Probe x1 3.5'' monitor x1 25-U-M x1 125-U-M x1 25-U-F x1 LC-U-F x1 Recharger ; Manual ; Carrying bag ; Li Battery |
Optional Accessories |
25-A-M ; 125-A-M ; SC-A-F ; FC-A-F ; LC-A-F AV-USB 2.0 Converter |
