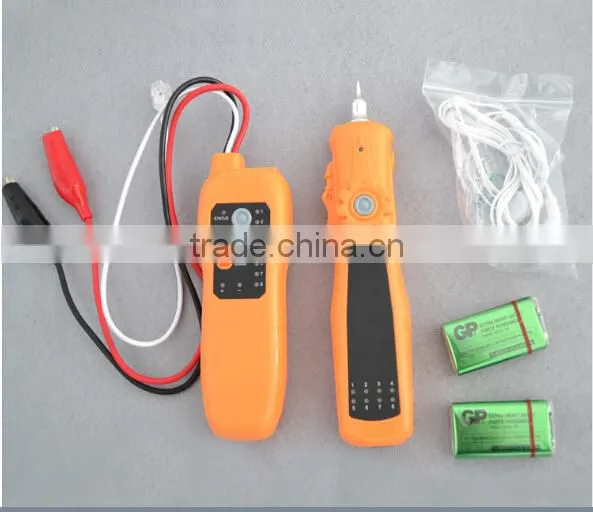

SENTER ST206 MULTIFUNCTION lineman test sets with RJ45 telephone test cable tracer set

SENTER ST206 MULTIFUNCTION lineman test sets with RJ45 telephone test cable tracer set

I. Overview

ST206 cable tracker can scan line, test line, voltage polarity detection and short circuit indication function. It is an assistant of line installation and maintenance engineer. This product is applied to the communication lines and the ordinary family wiring. It can improve the wiring efficiency of engineers and also can improve the line working progress.

II. Features

1. Scan line function: ST206 can quickly find the needed line among many disordered lines.

2. Test cable type: network cable, twisted pair cable, telephone line, USB cable, coaxial cable.

3. When switchboard is with weak electricity, ST206 can also check the line.

4. Test line function: easy to accurately test the RJ45 line sequence.

5. You can use earphone to scan line under noisy environment.

6. Flashlight function on receiver is convenient to scan in the dark environment.

7. Line status test: ST206 can determine the open or short circuit status.

8. Voltage polarity detection: ST206 can test the positive and negative of DC voltage in the line.

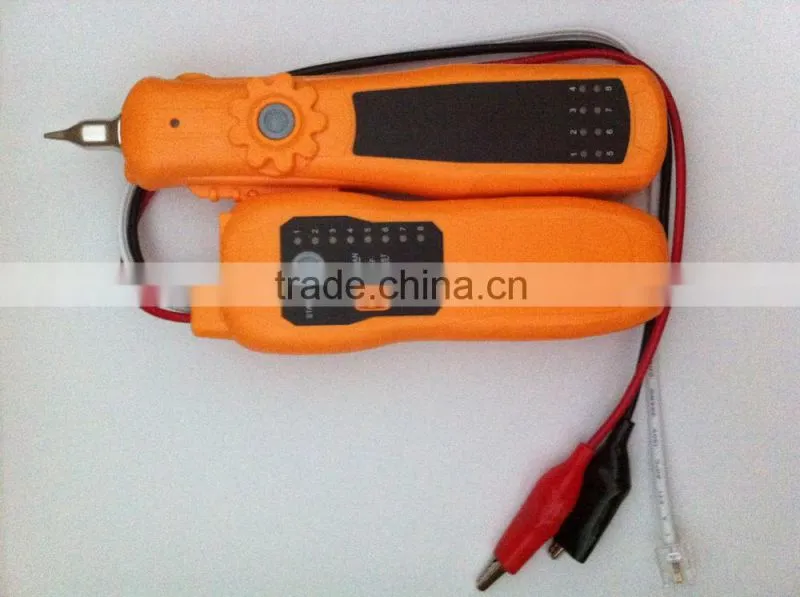

III. Structure

1. Status indicator

2. Function switchover button

3. Voltage test positive polarity indicator

4. Voltage test and negative polarity indicator

5. Function switchover touch button

6. Probe

7. Scanning indicator

8. Scanning button

9. Testing indicator of emitter

10. Testing indicator of receiver

11. Earphone socket

12. Flashlight button

13. Volume adjust button

14. RJ45 socket of receiver

15. Flashlight

16. RJ45 socket of emitter.

IV. Specifications
