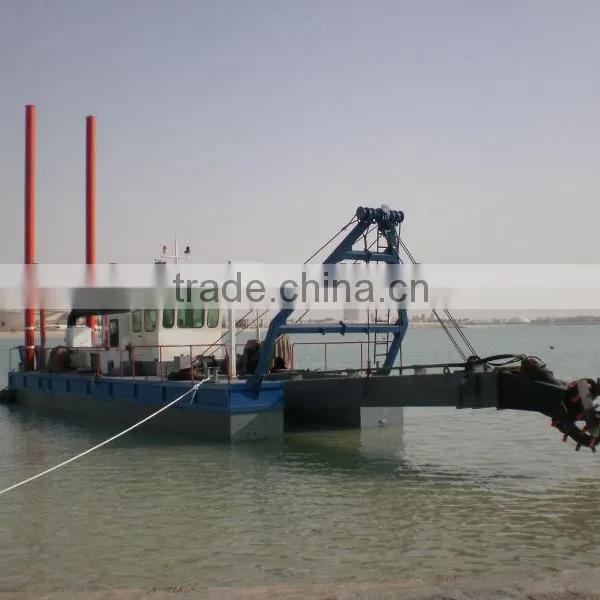

Help Center8 Inch 200m3/h Cutter Suction Dredger
Related Products
-
Cutter Suction Dredger ManufactureUS$ 60,000 - 120,000MOQ: 1 Set -
Small Cutter Suction Dredger SaleUS$ 50,000 - 1,200,000MOQ: 1 Set
-
SJCSD200 Cutter Suction Sand Dredger for SaleUS$ 180,000 - 1,000,000MOQ: 1 Set
-
Cutter Suction Sand DredgerUS$ 60,000 - 120,000MOQ: 1 Set
-
SJCSD350 Hydraulic Cutter Suction Desilting DredgerUS$ 580,000 - 800,000MOQ: 1 Set
Specifications
world ruputed diesel engine and pumpnew designed structure
advanced PLC System and Mechanical Operation System
The SJWNC 10/8, 12/10, 14/12, 16/14, 20/18, 22/20 series dredgers can apply to all kinds
of soils, which are widely used in port, waterway dredging and reclamation works. This series
of dredgers, absorbing advanced technology of Dutch and American related products,have
advantages of totally hydraulic control system, simple operation, easy maintenance, rational
design, novel layout and strong power. The maximum dredging depth can reach 25m and
discharge distance 3000m.
Features:
· Highly efficient fuel consumption and minimum overall operational costs
· Effective cutter drive system with direct hydraulic drive in flexible suspension
· Heavy duty side winches, ladder winch and spuds
· Hull consists of multiple pontoons connected by proven coupling system
· Very simple and fast assembly and dis-assembly, afloat or onshore
· Standard world-wide available gearboxes and hydraulic components
· Operation by one man from spacious and low noise operating cabin
· Controls and instruments mounted in ergonomic dash board
· Good access to all parts, especially the dredge pump wearing parts
· Fresh water cooling system
· Standard design, allowing short delivery times
· Standard spare parts available from stock.
· Optional equipment available
Parameters:
Types |
SJWNC 8/6 |
SJWNC 10/8 |
SJWNC 12/10 |
SJWNC 14/12 |
SJWNC 16/14 |
SJWNC 20/18 |
SJWNC 22/20 |
output(m3/h) |
100 |
200 |
250 |
300 |
350 |
450 |
500 |
Dredging depth |
6 m |
9 |
10.0 |
14.0 |
14.0 |
15 |
15 |
Full Length |
16 m |
21.0 |
25.0 |
35.0 |
36.6 |
40.0 |
44.0 |
Hull Length |
12 m |
14 |
18.0 |
25.0 |
26.0 |
30.0 |
35 |
Hull Height |
1.5 m |
1.6 |
1.6 |
1.8 |
1.8 |
2.2 |
2.2 |
Hull Width |
4.2 m |
4.6 |
5.2 |
6.0 |
6.0 |
7.5 |
8.0 |
Main Engine |
200 kw |
300 |
450 |
720 |
1000 |
1200 |
1200 |
Auxiliary Engine |
24 kw |
24 |
24 |
24 |
30 |
380 |
380 |
Cutter Diameter |
0.8 m |
1.0 |
1.3 |
1.5 |
1.5 |
1.65 |
1.8 |
|
Suction pipe/ Discharge pipe |
200/150 mm |
250/200 mm |
300/250 |
350/300 |
400/350 |
500/450 |
550/500 |
|
Rate of Fresh Water Flow |
500 (m3/h) |
800 |
1200 |
2000 |
2800 |
4500 |
4500 |
|
Operation system |
Electrical, Mechanical Operation system |
PLC control System, Mechanical Operation system |
PLC control System, Hydraulic Operation system |
PLC control System, Hydraulic Operation system |
PLC control System, Hydraulic Operation system |
PLC control System, Hydraulic Operation system |
PLC control System, Hydraulic Operation system |
The parameters are for reference only. Customized specification is available.
