180m3/h belt conveyor concrete central mix plant hzs180
Model |
HZS180 concrete central mix plant |
Rated productivity |
180m3/h concrete central mix plant |
Batching machine type |
PLD4800 |
Mixing engine |
MAO3000 |
Max. aggregate diameter |
150/100mm |
Motor power |
2*55kw |
Model |
Belt Type |
Aggregate bin |
25m3/single bin |
Aggregate metering accuracy |
±2% |
hopper volume |
3.3m3 |
powder metering accuracy |
±1% |
powder metering range |
60-2000kg |
Water metering |
±1% |
Total power |
240Kw |
Total weight |
53T |
Floor Area(L*W) |
55×20(m) |
Discharging height |
4.0 m |
Silo (optional-parts) |
200T/Φ3500 |
Features of belt type HZS180 concrete central mix plant
Adopt combined structure and modular unit, convenient to install and remove;

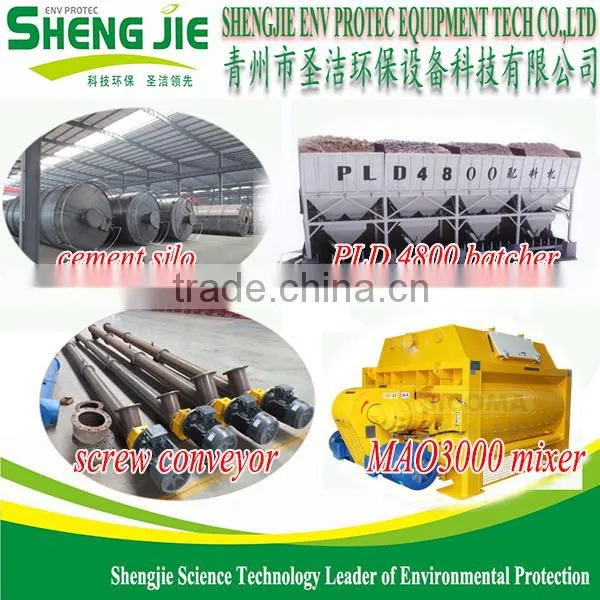

• Mixing and aggregate lifting system adopt MAO3000 double-shaft compulsory concrete
mixer which offers high quality and efficient mixing;
• Aggregate batching system adopts PLD4800 concrete batcher which offers efficient
and accurate measurement;
• Powder lot is electronic measured, highly accurate dosing;
•Water is flow-metering, simple and practical, highly accurate dosing.
For more details of our related HZS Conrete Batching Plant, Pls click link below.
| HZS25 Concrete Batching Plant | HZS35 Concrete Batching Plant |
| HZS50 Concrete Batching Plant | HZS60 Concrete Batching Plant |
| HZS75 Concrete Batching Plant | HZS90 Concrete Batching Plant |
| HZS120 Concrete Batching Plant | HZS180 Concrete Batching Plant |
If you have any further Questions,pls contact us at anytime.
We do our best to response our customers immediately.
It would be our pleasure to have long-term cooperation with you,thanks in advance.
