1.3megapixel Cmos 720p(hd) Real Dahua Poe Water-proof hd Network Small Ir-bullet Camera Ipc-hfw4100s

1.3megapixel Cmos 720p(hd) Real Dahua Poe Water-proof hd Network Small Ir-bullet Camera Ipc-hfw4100s thumbnail-1
1.3megapixel Cmos 720p(hd) Real Dahua Poe Water-proof hd Network Small Ir-bullet Camera Ipc-hfw4100s photo-1
US$ 60 - 60 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Type:
IP Camera
Style:
Bullet Camera
Contact Supplier Request Quote Chat Now
Shenzhen Obdo Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SZ
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Type IP Camera
Style Bullet Camera
Sensor CMOS
Technology Infrared
Special Features Waterproof / Weatherproof
Product Description



Feature

• 1/3” 1.3Megapixel progressive scan Aptina CMOS
• H.264&MJPEG dual-stream encoding
• 25/30fps1.3M(1280×960)&25/30fps720P(1280×720)
• DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC

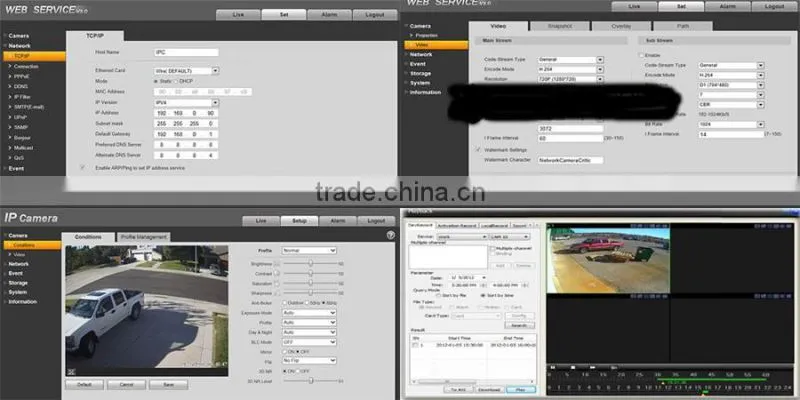

• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
• 6mm fixed lens (3.6mm,8mm optional)
• Max. IR LEDs Length 30m
• IP66, PoE



Overview

• 1/3” 1.3Megapixel progressive scan Aptina CMOS
• H.264&MJPEG dual-stream encoding
• 25/30fps1.3M(1280×960)&25/30fps720P(1280×720)
• DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
• 6mm fixed lens (3.6mm,8mm optional)
• Max. IR LEDs Length 30m
• IP66, PoE

Specifications

Model DH-IPC-HFW4100SP DH-IPC-HFW4100SN
Camera
Image Sensor 1/3” 1.3Megapixel Aptina CMOS
Effective Pixels 1280(H) ´ 960(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/10000s  Auto/Manual, 1/4~1/10000s
Min. Illumination 0.01Lux/F1.2 (Color), 0.005Lux/F1.2(B/W);0Lux/F1.2(IR on)
S/N Ratio >50dB
Video Output N/A
Camera Features
Max. IR LEDs Length 30m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 6mm (3.6mm,8mm)
Max Aperture F1.6
Focus Control Manual
Angle of View H: 64.5°(90°/49°)
Lens Type Fixed lens
Mount Type Board-in Type
Video
Compression H.264/ MJPEG
Resolution 1.3M(1280x960)/720P(1280×720)/D1(704×576)/CIF(352×288) 1.3M(1280x960)/720P(1280×720)/D1(704×480)/ CIF(352×240)
Frame Rate 1.3M/720P(1 ~ 25/30fps)(Main Stream)
D1/CIF(1 ~ 25/30fps)(Sub Stream)
Bit Rate H.264: 32K ~ 8192Kbps
Audio
Compression N/A
Interface N/A
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,
ONVIF ONVIF Profile S
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot N/A
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
General
Power Supply DC12V, PoE (802.3af)
Power Consumption <5W
Working Environment -20°C~+60°C, Less than 95% RH
Ingress Protection IP66
Vandal Resistance N/A
Dimensions 70mm×66mm×160mm
Weight 0.5kg
