Help CenterFTTH/FTTX Compatible 10G Single Fiber LR 1310nm 10km 10g Sfp
Related Products
-
LC Connector High Quality 850nm 300m Sfp sr 10G SFP+ 850nm 300mUS$ 13.5 - 14.5MOQ: 1 Piece -
LC Connector Telecom Equipment Sfp lr 10G SFP+ 1310nm 10kmUS$ 34.5 - 35.5MOQ: 1 Piece
-
LC Connector OEM 1550nm 40km Sfp Optical Transceiver 10G SFP+ 1550nm 40kmUS$ 117.5 - 121MOQ: 1 Piece
-
RoHS Compliant Sfp Transceiver Manufacturers 155M SFP 1310nm 40kmUS$ 8 - 8.5MOQ: 1 Piece
-
1000base-lx Sfp High Performance 1.25G SFP 1310nm 20kmUS$ 6.5 - 7.5MOQ: 1 Piece
Features
♦ Compliant with SFF-8431,SFF-8432 and IEE802.3ae
♦ 10GBASE-ZR, and 2G/4G/ 8G/10G Fiber Channel applications.
♦ Wavelength selectable to ITU-T standards covering CWDM grid wavelengths
♦ Cooled EML transmitter and APD receiver
♦ Link length up to 100km (with amplifier)
♦ Low Power Dissipation 1W Typical (Maximum:2W)
♦ -5ºC to 70ºC Operating Case Temperature
♦ Single 3.3V power supply
♦ Diagnostic Performance Monitoring of module temperature, supply
Voltages, laser bias current, transmit optical power, receive optical power
♦ RoHS compliant and lead free
Applications
♦ 10G Ethernet
♦ 10G Fiber Channel (with/without FEC)
♦ CWDM PON networks
♦ SONET OC-192/SDH STM-64
Guarantee
High quality is our life. We promise all the advertised products are brand new. We absolutely never use old and refurbished materials. Any faulty items can be returned during the warranty time.
What we supply

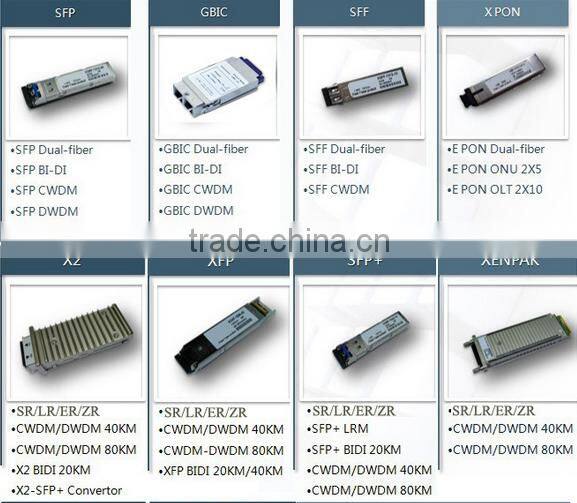

We supply wide range of high quality optical transceivers and passive CWDM/DWDM Mux/Demux modules. Our products are compatible with Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.
Shenzhen OlinkPhotonics Inc., Ltd established in the year of 2011, is a professional manufacturer of optical transceiver. We are dedicated in design, develop, production and distribute the optical transceivers to fulfill customer’s requirement on optical communication.Olink is able to offer a vast range of optical modules from 155Mbps ~ 100Gbps, including CFP2, QSFP+, XFP, SFP+, SFP, PON and CWDM, DWDM solutions, to support various protocols and meet with different requirement on Fiber Channel, Ethernet, SONET/SDH, FTTx, Data Center etc. And all product quality are backed by our strong R&D ability, rigorous quality control procedure and rich production experience. Our modules exported to China domestic market, Asia, Southeast Asia, Europe and American market etc,.With the concept of “Quality First, Service Oriented, Realistic and Innovative, Continuous Improvement”, Olink keep developing and optimizing product design solution, to provide our valued customers with most cost efficient product and service, as well as some customized products.
For more information, welcome to contact us:
