JETYOUNG Acrylic Polisher Diamond Edge Polishing Machine Shinny Smooth Effect

JETYOUNG Acrylic Polisher Diamond Edge Polishing Machine Shinny Smooth Effect photo-1
JETYOUNG Acrylic Polisher Diamond Edge Polishing Machine Shinny Smooth Effect photo-2
JETYOUNG Acrylic Polisher Diamond Edge Polishing Machine Shinny Smooth Effect photo-3
JETYOUNG Acrylic Polisher Diamond Edge Polishing Machine Shinny Smooth Effect photo-4
JETYOUNG Acrylic Polisher Diamond Edge Polishing Machine Shinny Smooth Effect photo-5
US$ 4,700 - 5,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Type:
Surface Grinding Machine
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Surface Grinding Machine
CNC or Not Normal
Place of Origin Guangdong, China
Brand Name Jetyoung
Model Number JMEP
Dimension(L*W*H) 74mm*0.51mm*0.91
Weight 95
Certification CE Certification
After-sales Service Provided Overseas service center available

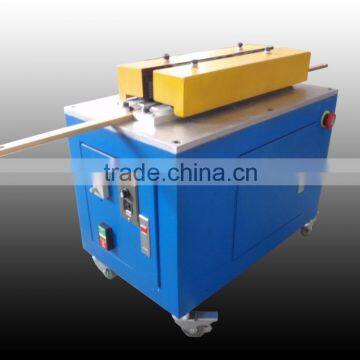

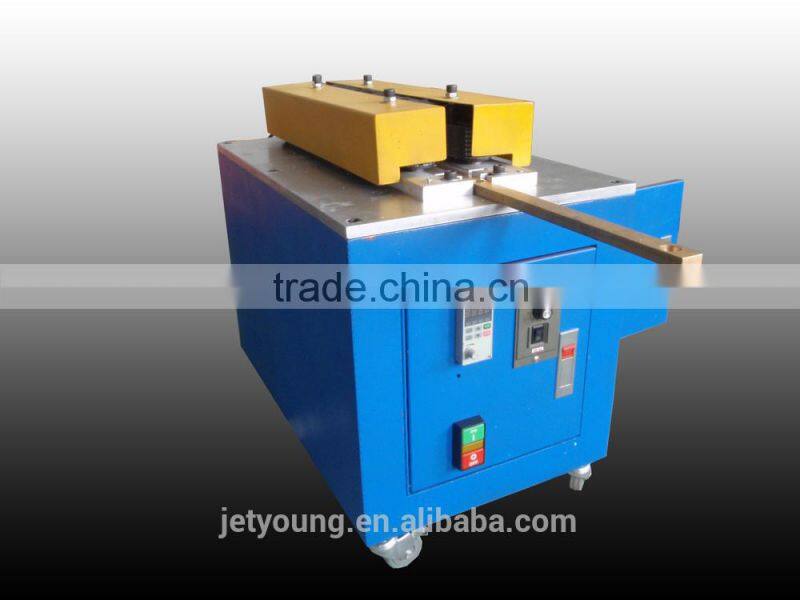

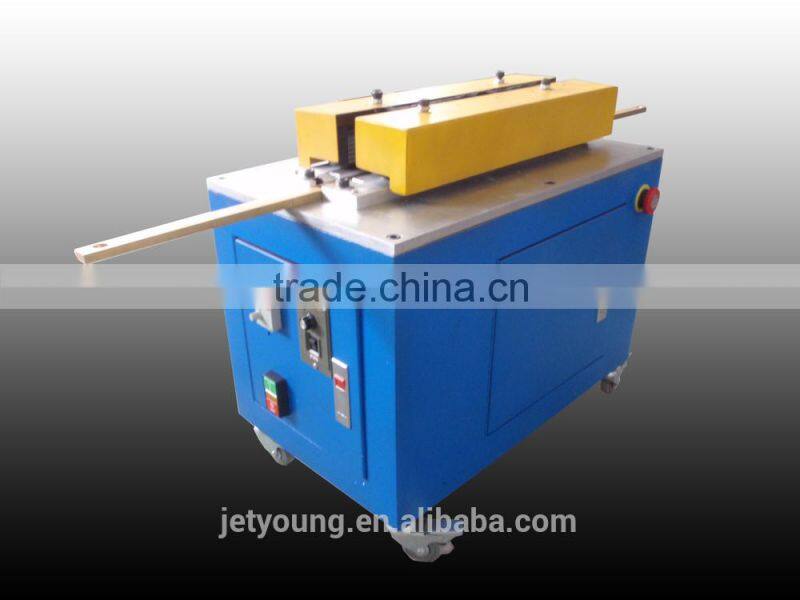

Jetyoung Diamond Edge Polishing Machine



The JY Diamond Edge Polisher removes saw marks and produces a clear, polished edge on acrylic parts, all in a single pass through the machine. Single or multiple work pieces are fed by two constant - tension gear driven belt assemblies across a special diamond cutter, mounted on a high speed, super precise 22,000 rpm spindle. The feed rate is infinitely variable from 0 to 10 ft per minute, via a DC speed control. The feed belt assemblies can swing out to permit easy access to the cutter and are completely protected by safety guards. A complete set of tools for set-up, adjustment and operation is furnished with each machine, along with a depth indicator and base for setting cutter height.



Specification



Machine table size

460mm x 580mm

Total available track length

1040mm

Max. work piece dimensions

610x2440x20mm

Spindle speed

24,000 rpm

Spindle drive motor

1500 W

Constant tension, Dual belt feed

0-3m per min

Feed Speed(infinitely adjustable)

Standard

Feed belt motor

150 W

Electrical requirements

220V, 1ph, 5Amp, 60Hz

Machine dimensions



Length (side to side)

560 mm

Width (front to back)

330 mm

Height

550 mm

Shipping weight

48 Kg

Shipping dimensions

660x406x508 mm

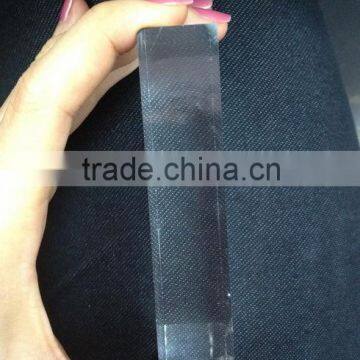

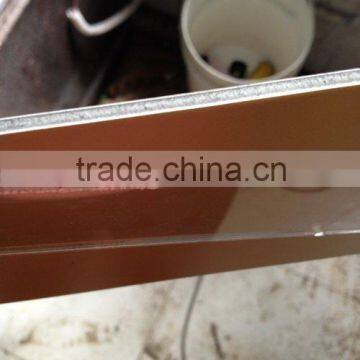

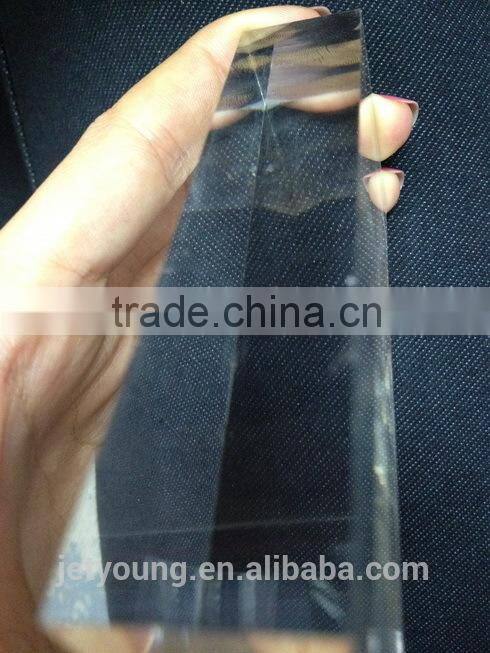

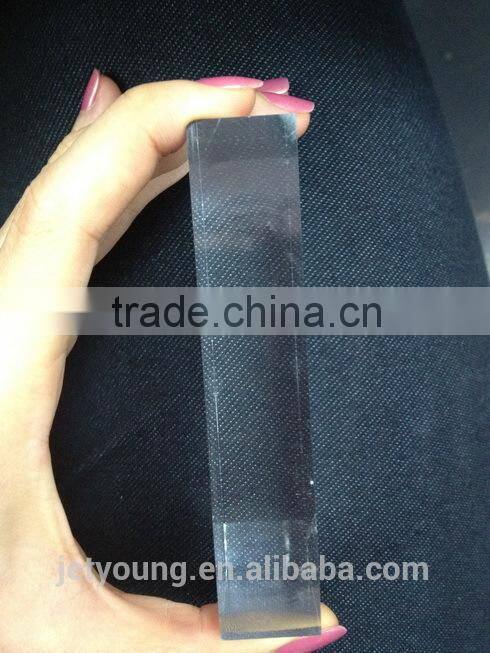

Polishing effect:



JETYOUNG Acrylic polisher Diamond Edge polishing machine shinny smooth effectJETYOUNG Acrylic polisher Diamond Edge polishing machine shinny smooth effectJETYOUNG Acrylic polisher Diamond Edge polishing machine shinny smooth effectJETYOUNG Acrylic polisher Diamond Edge polishing machine shinny smooth effect



Thickness up to 10-50mm



JETYOUNG Acrylic polisher Diamond Edge polishing machine shinny smooth effect

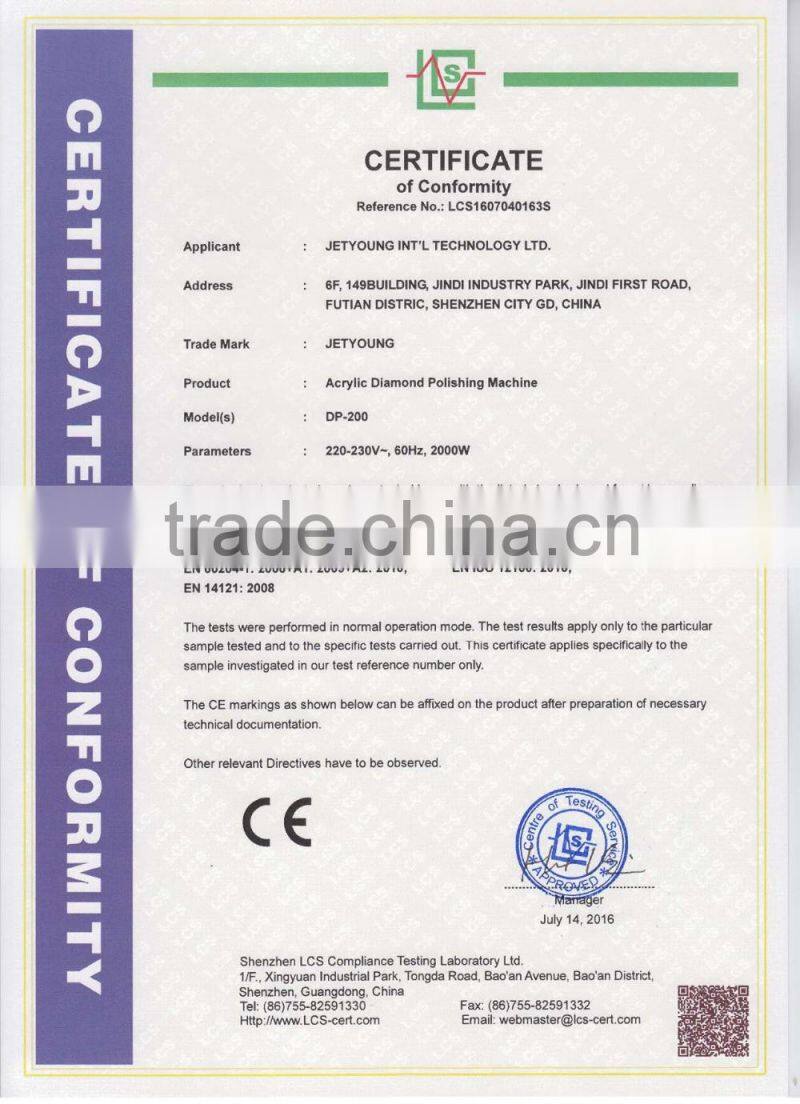

 Certification :

JETYOUNG Acrylic polisher Diamond Edge polishing machine shinny smooth effect

acryl polishing machine smooth mat diamond Edge acrylic
