JETYOUNG Acrylic polisher-Diamond Edge Acrylic polishing machine shinny effect
- 100 Piece / Pieces per Month
- Shenzhen
- Credit Card PayPal
-
Second-hand sweeper second-hand mobile phone curved glass sweeper tablet computer curved glass sweeper
-
Automatic Ultrafine Powder Grinder with Ceramic Mortar
-
Automatic Powder Grinder with Ceramic Mortar
-
Pneumatically-lifted Laboratory Grinder (Special grinding equipment for scientific research in Colleges and Universities)
-
Pneumatically-lifted Grinder with Double Pestle and Ceramic Mortar (manual discharging)
-
Pneumatically-lifted Grinder with Ceramic Mortar (Large grinder for chemical material and new material)
Product Details
| Condition: | New | Type: | Surface Grinding Machine | CNC or Not: | Normal |
| Place of Origin: | Guangdong, China | Brand Name: | Jetyoung | Model Number: | JMEP |
| Voltage: | 220V/380V | Power(W): | 1.5KW | Dimension(L*W*H): | 74mm*0.51mm*0.91 |
| Weight: | 95 | Certification: | CE Certification | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

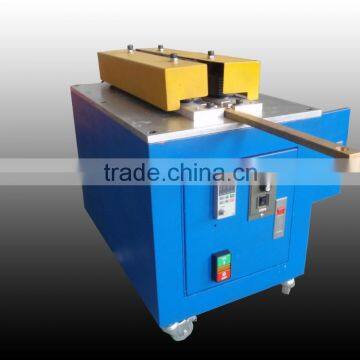

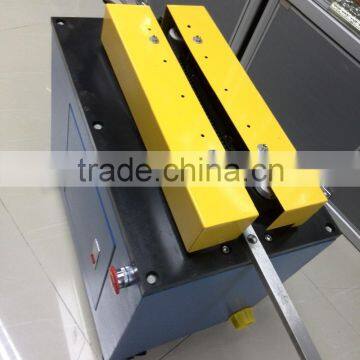

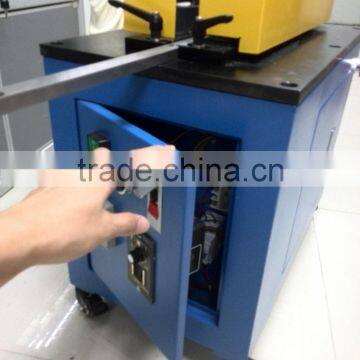

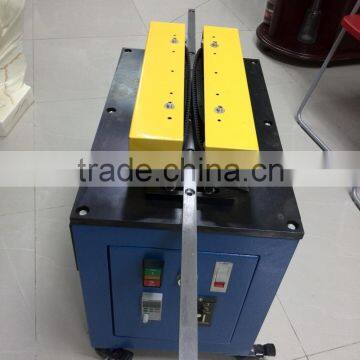

Jetyoung Diamond Edge Polishing Machine
The JY Diamond Edge Polisher removes saw marks and produces a clear, polished edge on acrylic parts, all in a single pass through the machine. Single or multiple work pieces are fed by two constant - tension gear driven belt assemblies across a special diamond cutter, mounted on a high speed, super precise 22,000 rpm spindle. The feed rate is infinitely variable from 0 to 10 ft per minute, via a DC speed control. The feed belt assemblies can swing out to permit easy access to the cutter and are completely protected by safety guards. A complete set of tools for set-up, adjustment and operation is furnished with each machine, along with a depth indicator and base for setting cutter height.
Specification |
|
Machine table size | 460mm x 580mm |
Total available track length | 1040mm |
Max. work piece dimensions | 610x2440x20mm |
Spindle speed | 24,000 rpm |
Spindle drive motor | 1500 W |
Constant tension, Dual belt feed | 0-3m per min |
Feed Speed(infinitely adjustable) | Standard |
Feed belt motor | 150 W |
Electrical requirements | 220V, 1ph, 5Amp, 60Hz |
Machine dimensions |
|
Length (side to side) | 560 mm |
Width (front to back) | 330 mm |
Height | 550 mm |
Shipping weight | 48 Kg |
Shipping dimensions | 660x406x508 mm |
Polishing effect:
Thickness up to 10-50mm
Certification :
acryl polishing machine smooth mat diamond Edge acrylic
