Specifications
1.electric worm gear actuator2. Torque:40-250Nm
3.input/output 4-20mA
4.Voltage:220V/380V
5.ISO,CE

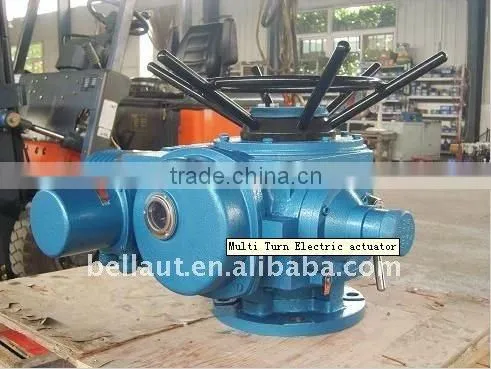

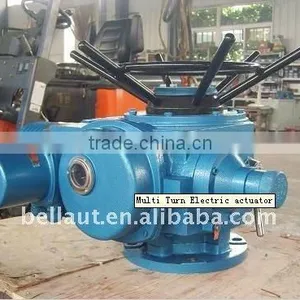

Multi-turn Electric Actuator for Gate Valve

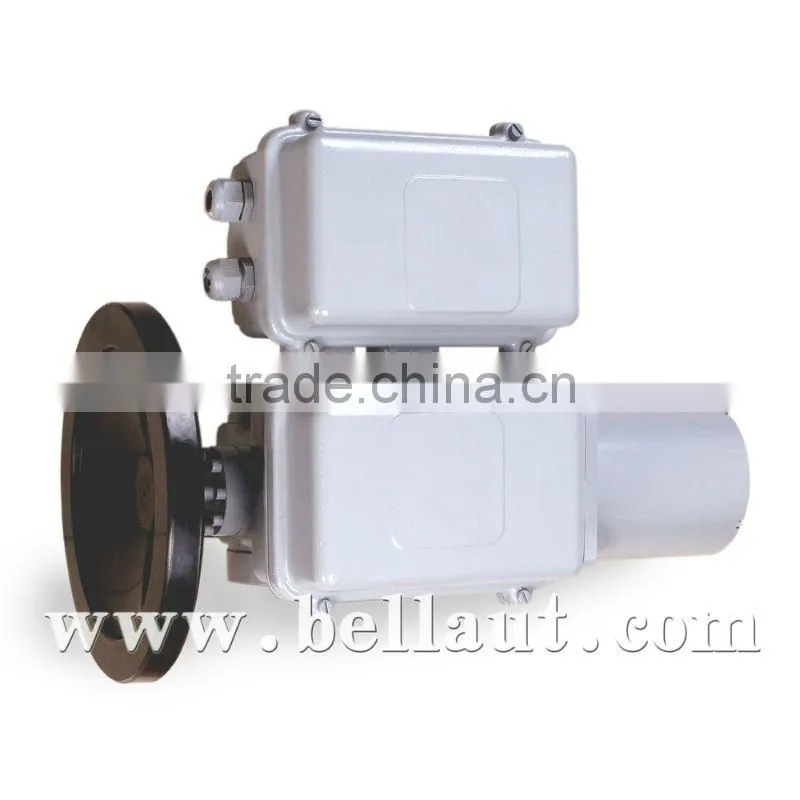

electric worm gear actuator
Summary
The electric actuators we manufactured are the products by using the introduced advanced technology from BERNARD Company of France.
It has various kinds of protection function and control mode. It can be divided into the quarter-turn series, linear-turn series and multi- turn series. There are more than hundred kinds of specifications. Its control main board is continuously upgrading and updating and the new products appear rapidly in order to satisfy the needs of modern industrialization.
The electric actuator has already widely applied in the large and medium-sized project which is the newly built and was highly appraised by users.
At the same time, we also accumulate rich technology and scene experiences in the process of updating and upgrading DKJ or other actuators to the introduced series.
Stronger anti-interference function
With the imported main chip of control panel and stable performance, the actuator has the stronger anti-interference capability. The input and output signal adopt the shielded wire.
Demonstration: OA-10/ voltage travel time mounted model control model
Supply voltage: K: 220VAC, F: 380VAC,
Travel time: Sees the table
Mounted model: Z: Direct-mounted, H: foot-plate,
Control model: L: Two types, switch, switch quantity input, abbreviation: Integral-model and proportional modulating type,4---20mA input
S: Separated-model and proportional modulating type, 4---20mA input
Y: Remote-control type, the switch quantity input
Multi-turn
SD series type |
Torque Nm |
Rated speed r/mm |
Rated travel mm |
A-4/volt rotate speed travel control type |
40 |
4.8 |
5,7 |
9.6 |
10,16 |
||
17.5 |
17.5,26 |
||
A-6/ |
60 |
3.3 |
3.3,5 |
4.8 |
5,7 |
||
9.6 |
10,14 |
||
17.5 |
17.5,26 |
||
A-10/ |
100 |
3.3 |
3.3,5 |
4.8 |
5,7 |
||
9.6 |
10,14 |
||
A-16/ |
160 |
3.3 |
3,3.5 |
4.8 |
5,7 |
||
B-4/ |
40 |
18.8 |
15,22.5,34.5,50 |
B-6/ |
60 |
13 |
15,22.5,34.5,50 |
18.8 |
15,22.5,34.5,50 |
||
B-10/ |
100 |
7 |
8.5,15,22.5,34.5,50 |
13 |
15,22.5,34.5,50 |
||
18.8 |
15,22.5,34.5,50 |
||
B-16/ |
160 |
4.4 |
5,7.5,11.5,17.5 |
7 |
8.5,15,22.5,34.5,50 |
||
13 |
15,22.5,34.5,50 |
||
18.8 |
15,22.5,34.5,50 |
||
B-25/ |
250 |
2.3 |
3.5,7.5,11.5,17.5 |
4.4 |
5,7.5,11.5,17.5 |
||
B-25/ |
6000 |
7 |
3.5,15,22.5,34.5,50 |
