Specifications
1.Introduce France Bernard technology2.Input,output 4-20mA
3.Voltage 220V/380V
4.ISO,CE
multi actuator

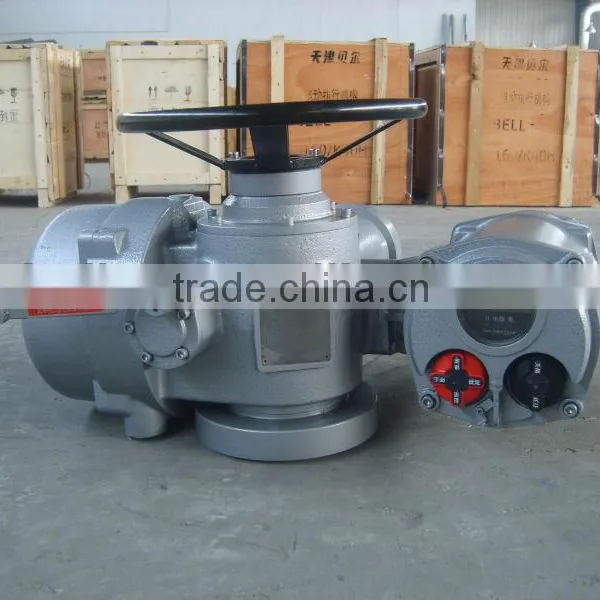

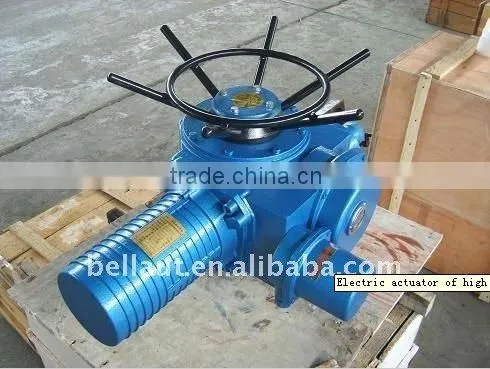

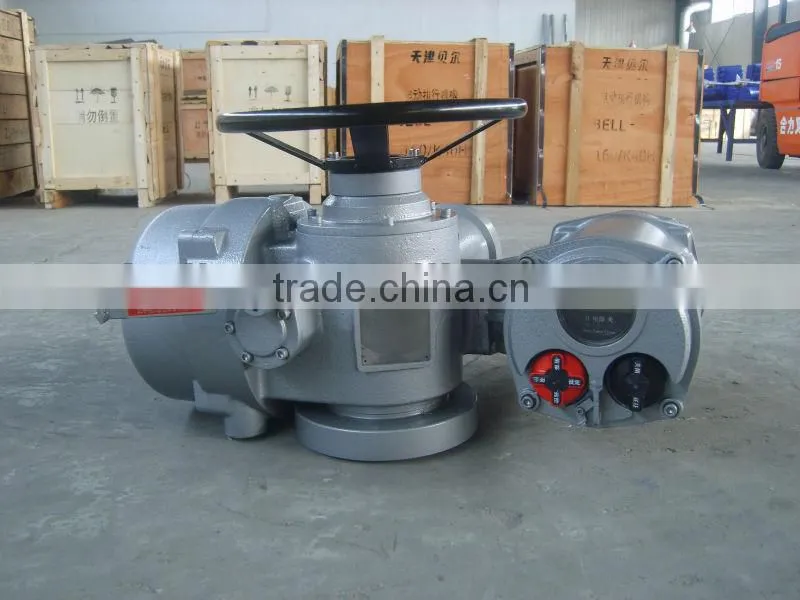

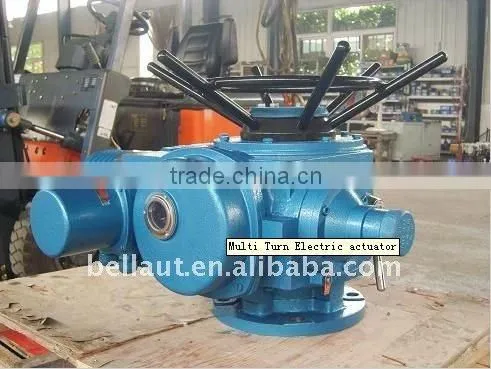

Multi turn Actuator
Specifciation:
The main technical parameters of the electric actuator
The following technical parameters are mainly applied to the proportional modulating type electric actuator.Item1,2,3,4,5and 6 are not suitable for the remote-control type electric actuator and switch type electric actuator.
1.The input signal: 4--20mA DC
2.The input resistance: 250 ohm
3.Input passage: 1
4.Basic error: 1%, 2.5%
5.Deviation: 1.5%
6.Deadline: 0.5%--3% continuously adjustable
(according to the indication of system)
7.Damping characteristic: No-oscillating
8.power supply: three-phase 380V~50Hz, single-phase 220V~50Hz for selected
9.Working conditions: Temperature: Integral-type -10°C-- +55°C, separate-type -25°C -- +70°C
Humidity: ≤85%The surrounding air does not have the corrosive elements
10.Protection rank: it conforms to the IEC145 IP65 standards. (Excluding the separate-type GAMX with waterproofing and dustproof functions fixed in rooms), bus type and intelligent type IP67.
11.The cut-off signal protection: It can be divided into all-on, all-off and home position according to your instructions.
Generally it is set into the home position when it is manufactured.
Multi-turn
SD series type |
Torque Nm |
Rated speed r/mm |
Rated travel mm |
A-4/volt rotate speed travel control type |
40 |
4.8 |
5,7 |
9.6 |
10,16 |
||
17.5 |
17.5,26 |
||
A-6/ |
60 |
3.3 |
3.3,5 |
4.8 |
5,7 |
||
9.6 |
10,14 |
||
17.5 |
17.5,26 |
||
A-10/ |
100 |
3.3 |
3.3,5 |
4.8 |
5,7 |
||
9.6 |
10,14 |
||
A-16/ |
160 |
3.3 |
3,3.5 |
4.8 |
5,7 |
||
B-4/ |
40 |
18.8 |
15,22.5,34.5,50 |
B-6/ |
60 |
13 |
15,22.5,34.5,50 |
18.8 |
15,22.5,34.5,50 |
||
B-10/ |
100 |
7 |
8.5,15,22.5,34.5,50 |
13 |
15,22.5,34.5,50 |
||
18.8 |
15,22.5,34.5,50 |
||
B-16/ |
160 |
4.4 |
5,7.5,11.5,17.5 |
7 |
8.5,15,22.5,34.5,50 |
||
13 |
15,22.5,34.5,50 |
||
18.8 |
15,22.5,34.5,50 |
||
B-25/ |
250 |
2.3 |
3.5,7.5,11.5,17.5 |
4.4 |
5,7.5,11.5,17.5 |
||
B-25/ |
6000 |
7 |
3.5,15,22.5,34.5,50 |
