Smc Series Solnoid Valve for Natural Gas, Liquefied Petroleum Gas, Purity Coking Gas

Smc Series Solnoid Valve for Natural Gas, Liquefied Petroleum Gas, Purity Coking Gas thumbnail-1
Smc Series Solnoid Valve for Natural Gas, Liquefied Petroleum Gas, Purity Coking Gas photo-1
US$ 50 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Control
Pressure:
Medium Pressure
Contact Supplier Request Quote Chat Now
Tianjin Bell Automatic Instrument Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Control
Pressure Medium Pressure
Power Solenoid
Material Casting
Temperature of Media Medium Temperature
Media Gas
Port Size 1/2''--12''
Place of Origin Tianjin, China
Model Number RQDF
Brand Name BELL

Specifications

1. smc solnoid valve
2. for natural gas, liquefied petroleum gas, purity coking gas
3. with advanced technology
4. ISO, CE

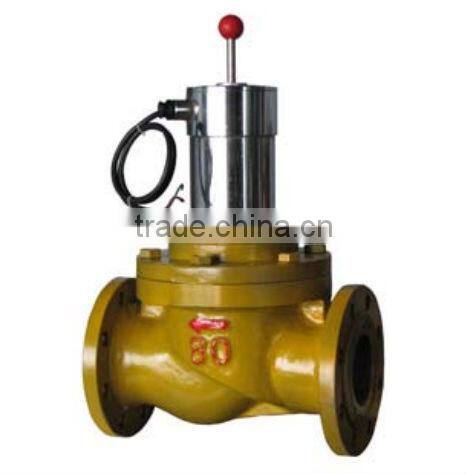

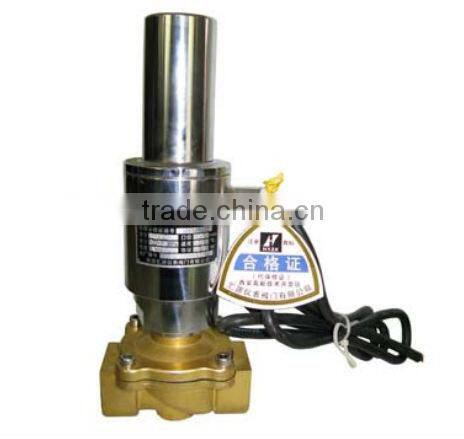

Smc series solnoid valve for natural gas,  liquefied

petroleum gas, purity coking gas



Introduction:



The solenoid valve especially designed for gas manufactured by our company is widely

used in almost every field of gas industry, such as the automatic cut-off and remote

control of city gas, coking gas, natural gas pipelines, gas boiler safety protection,

furnace heating, etc automatic control system.





Features:

  1. Adopt unique streamlined spherical body, small flow resistance, pressure loss is small.
  2. Coil adopts compound high-quality enameled wire, good insulation effect, low temperature rise.
  3. With corrosion resistant high permeability core material, aerodynamic torque, fast speed, no magnetic remnant phenomenon.
  4. Diaphragm adopts excellent corrosion resistance of nitrile butadiene rubber or fluorine rubber, outer lining protection ring set, can effectively extend the service of the product.
  5. Built-in energy-saving control coil cooling module, it can reduce the coil temperature rise and save energy.



Technical Parameters:

  1. Working medium: natural gas, city gas, liquefied petroleum gas, purity coking gas
  2. Connection method: <=DN50  inch pipe thread or flang;      >=DN65  standard flange
  3. Medium temperature: diaphragm type: <=80C      piston type: <=80C
  4. Environment temperature: -20C~40C
  5. Supply voltage: 220VAC/DC   24VAC/DC ( special voltage can be customed )
  6. Optional function: contact feedback, manual operation, explosion-proof type
  7. Explosion level: ExIICT4 ( IIC only include H2 )
  8. Protection class: IP65

Smc series solnoid valve for natural gas, liquefied petroleum gas, purity coking gasSmc series solnoid valve for natural gas, liquefied petroleum gas, purity coking gasSmc series solnoid valve for natural gas, liquefied petroleum gas, purity coking gas
