Specifications
high quality wafer butterfly valveprofessional manufacture
wafer type
center lined

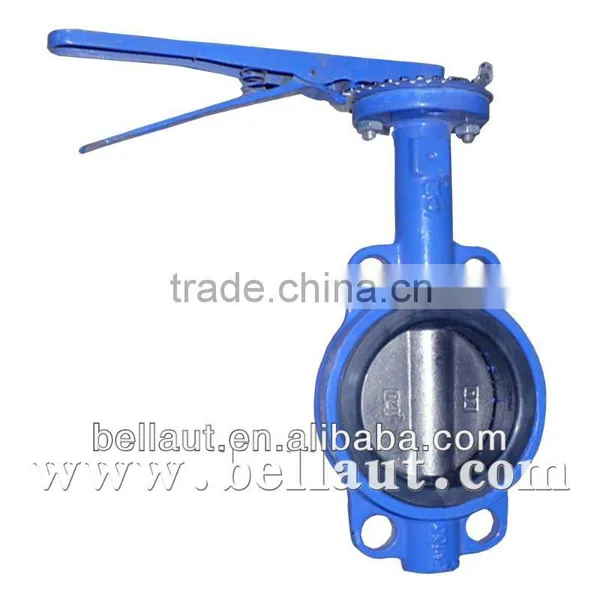

Manual-operated wafer butterfly valve
Type: D7A1X-10 D7A1X-16
D7L1X-10 D7L1X-16
Nominal diameter:
40(1/1/2”)—1000(40”)mm
50(2”)—600(24”)mm
Nominal pressure:1.0 MPa ,1.6MPa
Operating temperature range:-15—+150°C
Suitable mediums: fresh water, sewage, seawater, air, steam, food, medicine, various kind of oils,acids, alkali and salt.
Features:
1. small-size, convenient, easy to assemble and disassemble, maintenance, fix at any positions
2. simple-structure,compact, quick 90 degrees on-off operation, small operating torque, light and handy.
3. more than then thousand times of on-off experiment, longer operating life.
4. almost linear flow characteristic, better regulating performance.
5. full sealed, zero gas leakage.
6. different materials in every parts, suitable to different mediums.
