Specifications

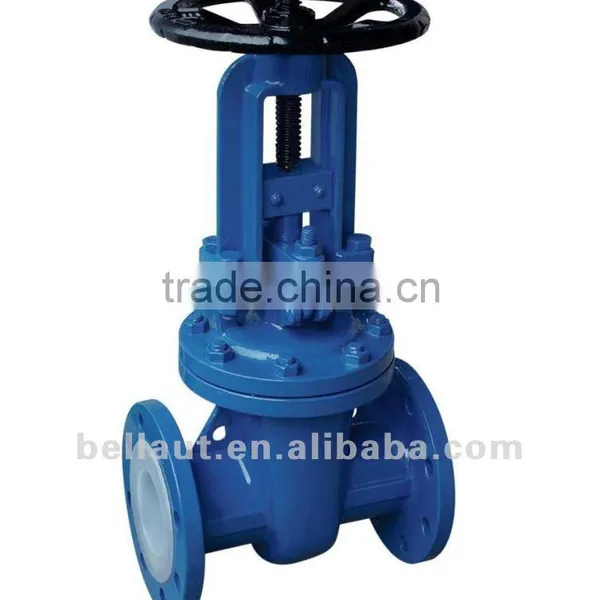

high quality manual fluorine gate valveManual operated gate valve
flanged type
Fluorine gate valve
Specifications of the fluorine gate valve
Casting Fluorinated Gate Valve
1.Size: NPS2"-24",DN50-600mm
2.Pressure: Class150-2500LB,PN6-25
3.Material: Casting
Casting Fluorinated Gate Valve
1.Size: NPS2"-24",DN50-600mm
2.Pressure: Class150-2500LB,PN6-25
3.Material: Cast Iron,Carbon steel,Stainless Steel
4.Operation: Hand wheel, gear, square head.
Technique performance:
Design and manufacture: ANSI B16.34 or ANSI E101
Face to face: ANSI B16.10 or E101
Inspect and test: ANSI B16.34
Structure:P.B,OS&Y
Material:
1,BodyBonnet: Spheroidal graphite cast iron ,carbon steel, stainless steel.
2,Lining : Unlined, fluorine plastic
3,Stem:WCB:Stainless steel ,
4,Diaphragm: fluorine plastic
5,Disc: Cast Iron,stainless steel
6,Cylinder: Spheroidal graphite cast iron
7,Piston: carbon steel
8,Stem: carbon steel
9, Handwheel :Cast iron
The main structure features include:
1,Both design and manufacture are carried out strictly according to GB/T12234,API1600 and API1602.Reliable sealing,good performance and nice modeling.
2,Co hard alloy welded sealing surface ,which is wearing resistant,erosion proof,abrasion proof and long service life.
3,The surface and the adjusting media of the valve shaft are nitrogenized so that it is erosion and abrasion resistant.
4,There is no backward sealing structure in the valve,so the sealing is reliable.
5,The material of the filling and the flange size can be chosen and matched according to the customers requirments.
