Health Class Plastic Ball Valve by Mini Motor Control

Health Class Plastic Ball Valve by Mini Motor Control thumbnail-1
Health Class Plastic Ball Valve by Mini Motor Control photo-1
US$ 50 - 200 MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Contact Supplier Request Quote Chat Now
Tianjin Bell Automatic Instrument Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin xingang port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Ball
Pressure Medium Pressure
Power Other, electric
Material Plastic
Temperature of Media Medium Temperature
Media Other, the food industry of chemical solvents compatibled with PVC
Port Size 10~65mm
Place of Origin Tianjin, China
Model Number BLPAQ
Brand Name BELL
Application General

health class plastic ball valve by mini motor control

Product Description



Feature



BLPAQ series electric PVC valve with light weight,strong corrosion resistance.



Compact structure, beautiful appearance, light body weight, easy installation, disassembly and maintenance.



Material is health non-toxic and resistant to wear and tear.



Usually used in many industries like General water & raw drinking water piping systems,drainage and sewerage piping systems, brine and seawater piping systems, Alkali and chemical solution systems.





Main parameters



Nominal diameter( DN)

10~65mm

Nominal pressure( PN)

1.0MPa

applicable temperature

0°~+60°

connect type

flange,thread,union

body&trim material

UPVC,CPVC,PP

seal material

EPDM,FPM

medium

the food industry of chemical solvents compatibled with PVC

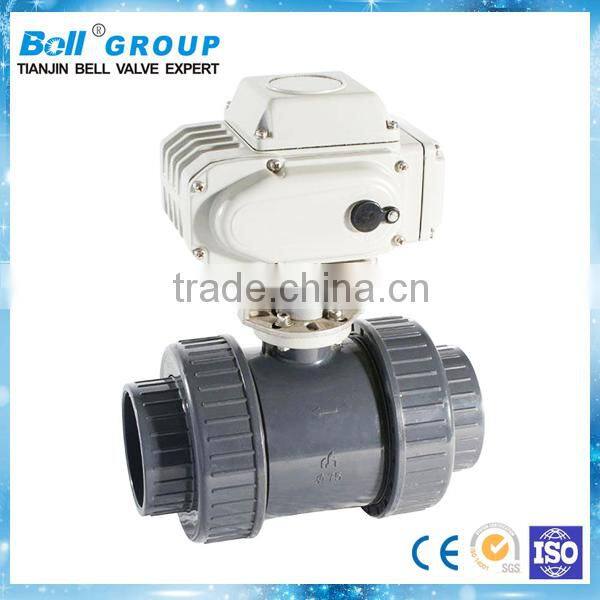

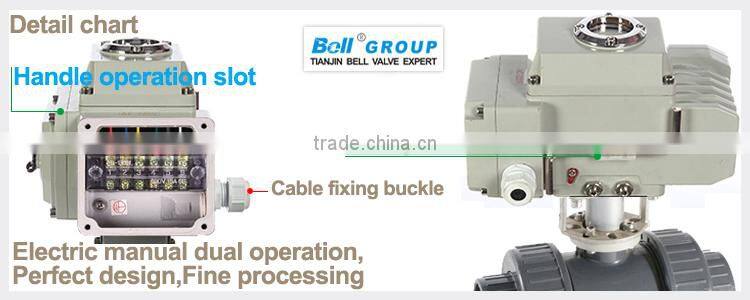

Main picture



 health class plastic ball valve by mini motor control





health class plastic ball valve by mini motor control

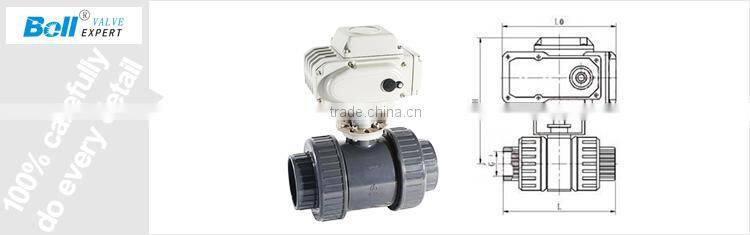

Outline Dimensions



health class plastic ball valve by mini motor control



Nominal diameterDN(mm)

10

15

20

25

32

40

50

65

female threadG(″)

3/8″

1/2″

3/4″

1″

1″1/4

1″1/2

2″

2″1/2

L0    (mm)

162

162

162

162

162

208

208

208

L     (mm)

103

112

132

144

165

171

200

273

H     (mm)

225.5

225.5

230.5

239

246

250

271.5

322.5

weight (kg)

5.6

5.7

5.8

6

6.3

6.5

7.3

7.8





Company Information

 health class plastic ball valve by mini motor controlhealth class plastic ball valve by mini motor control













Production Process

 health class plastic ball valve by mini motor control



health class plastic ball valve by mini motor control



Test&Certifications



health class plastic ball valve by mini motor control



health class plastic ball valve by mini motor control



CE security certificate awarded by EU appointed Britain certificate authority

The ISO9001 quality certification

China famous brand certificate

China AAA level credit enterprise certificate

Tianjin Enterprises Association Member

China quality assurance certificate

The Qualified Supplier Certificate Issued by Beijing Capital Iron & Steel Group



Packaging & Shipping



health class plastic ball valve by mini motor control



FAQ

 1. How about your price?

Although we are brand-name products,  but our prices are very favorable and competitive.

Customer from all over the world to purchase our products, because our best price.



 2. How long is your warranty?

   Our Warranty is 12 month



 3. What’s your payment?

Our Payment could be

(1) 100% T/T

(2) 30% in advance, others before shipment.

(3)Advance, others letter of credit.



 4. What’s your beneficiary bank?

Our beneficiary bank have :

(1)Alibaba one touch account

(2) Alibaba Trade Assurance account

(3) Bell Group's bank account

(4)Tianjin Bell company bank account

(5)Paypal

(6)Western Union

(7) China's domestic use RMB remittance

Specific accounts can be found on our website.



 5. Could you special design and produce for you?

  Sure, we have all kinds of professional engineers,

  Could design and produce special product according to customer requested.

  Such as: special Size, special control, or OEM, etc.



 6. Do you looking for Agent?

   Yes, we're looking for the agent all over the world, please contact us for further discussion.
