Stainless Steel Plate Electric Gate Valve Equipped With Multi-turn Actuator

Stainless Steel Plate Electric Gate Valve Equipped With Multi-turn Actuator photo-1
US$ 50 - 200 MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Gate
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin xingang port
Delivery Detail:
Delivery time depends on order quantity.
Standard or Nonstandard Standard
Structure Gate
Pressure Medium Pressure
Power Other, electric
Material Casting
Temperature of Media Medium Temperature
Media Other, water,gas,steam,oil etc
Port Size DN25~DN400
Place of Origin Tianjin, China
Model Number BZ941
Brand Name BELL
Application General

stainless steel plate electric gate valve

equipped with multi-turn actuator

Product Description

Feature

· Its a linear motion valve, general match with on-off type Multi-turn actuator.

· Simple operation, is one of the most common on-off valve, which uses gate plate up and down movement to

  turn on and turn off the fluid medium in the pipe.

·Widely used in electric power, metallurgy, petroleum, chemical, paper, sewage treatment and other industries.



Valve body parameters

design standard

GB/T12234

body material

cast steel

Drive mode

electric

packing

Asbestos and flexible graphite

sealing face

 alloy steel or hard alloy

nominal pressure

PN1.6~20.0MPa

medium

water,oil,steam etc

temperature

≤425℃



Electric Actuator data:

Voltage: 380V AC

Frequency: 50Hz

Type:On-off/Modulating

Input signal: switching value/4~20mA

Output signal: switching value/4~20mA

Fieldbus: Profibus

Over heat protection

Torque switch / limit switch



Main picture

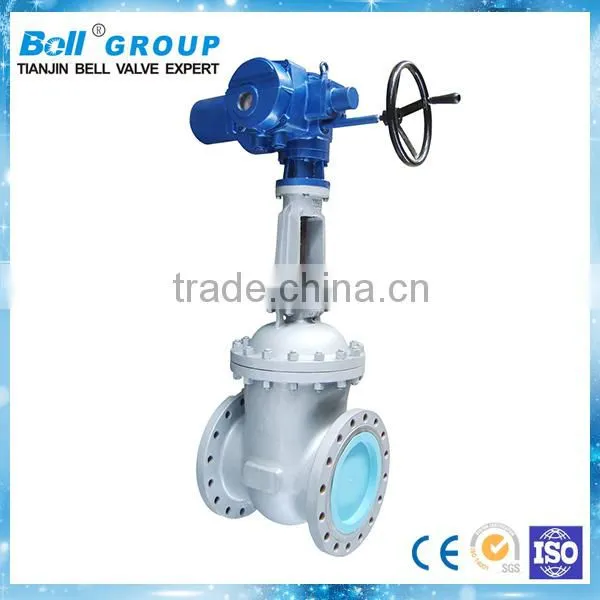

 stainless steel plate electric gate valve equipped with multi-turn actuator
