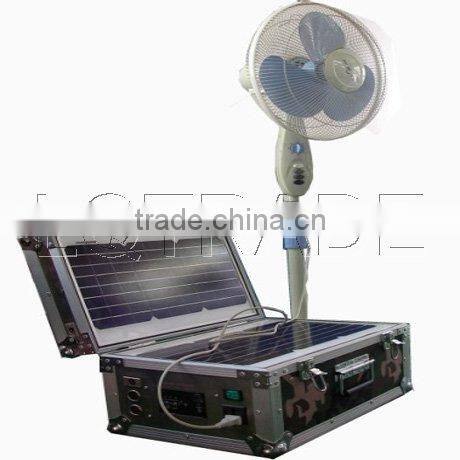

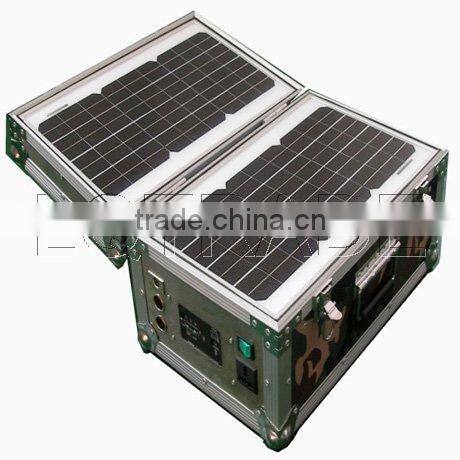

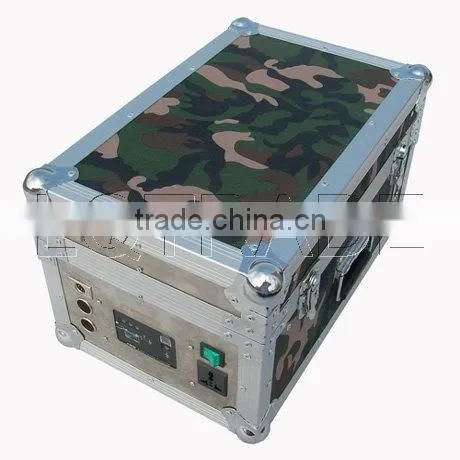

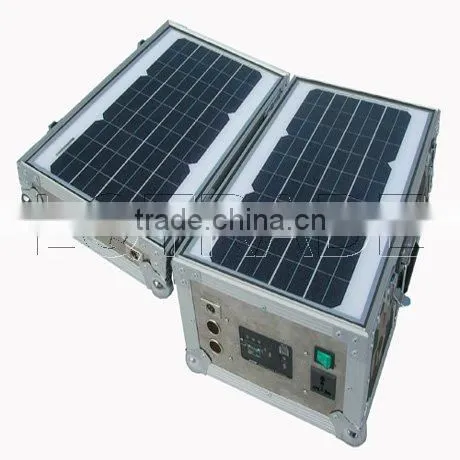

Newest products 30 W rod type solar power system /solar mobile power factory direct sale

Specifications

Newest products 30 W rod type solar power system /solar mobile power factory direct sale

Newest products 30 W rod type solar power system /solar mobile power factory direct sale





Introduction:

Solar home system is a small ac, dc power supply system designed and manufactured for remote areas agriculture herdsman. Post. Field operation, tourism camping.

Solar charge and discharge controller, inverter and battery fixed in power control box.

Technical parameters

Parts Name	Specifications	Parameters	Quantity
Solar Module	Polysilicon	15W	2 set
Solar energy battery	Sealed lead-acid battery	12AH	3set
Solar control system	controller	10A	1set
	inverter	500W	1set
	Control system box		1set
Solar panels stents, solar panels wiring			1set

Power box shape size: 495 mm*315 mm*282mm
Solar panel contour size: 468 mm*288 mm*25 mm
Working time: full battery, ac load and 20V/50W can work continuously eight hours



Product information:



1) Output control (dc) : the battery voltage is lower than 10.5 V, stop output (the red light); More than 12.8 V began to output (red light out)
2) Output control (ac) : inverter, battery voltage is lower than 10.5 V, stop output (open to turn off the lights out), more than 12.6 V began to work (switch light)
3) Working time: full battery, the dc load 7 w / 12 v two lamp can continuous lighting 30 hours
4) ac load 10 w to 80 w can work continuously ten hours to 3.2 hours
5) Status indication: green LED light: the power indicator. Yellow LED light: charging indicator. Red LED light: cut-off output
