Adjustable solar panel 14 inch 20W roof mounted industrial exhaust fan
adjustable solar panel 14 inch 20W roof mounted industrial exhaust fan is detailed as follows:
Feature:
A: High efficacy air draft design
B:Product using turbine wind lamina
C:360 degree venting hot air from roof level
D:No any dead angle
H:Because shelter no any block, this structure is good for no affect by any outside interfere
I:At daytime good for venting
G: At the raining or windy situation this structure prevents wind and rain converse
Functions & Characteristics
1.Powered by clean & free solar energy
2.Operating at ZERO commericial electronic costs
3.Installed easy & Flexible ,fan host can mount to any building wall

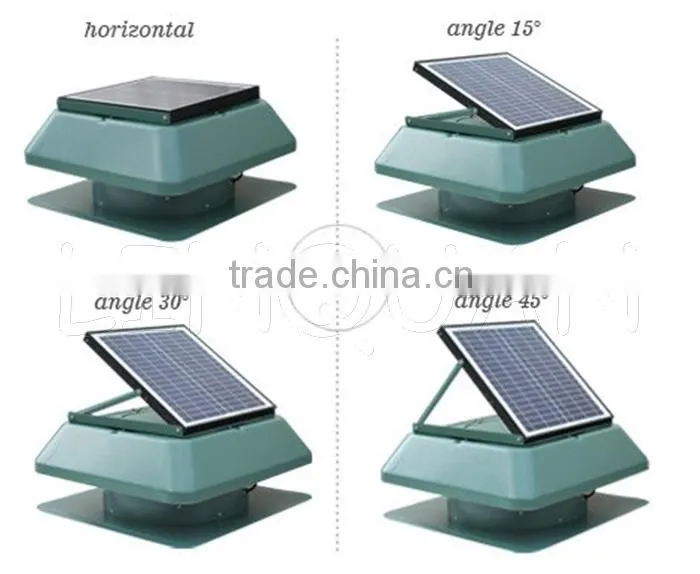

4.Solar panel is adjustable to capture most direct sunlight for stronger venting efficiency
5.Oncy pay,benefit forever and no maintenance!
6.Remove harmful elements like excess heat,moisture,dust,toxic mould to prolong indoor appliances' lifespan.
7.Quiet and safely enhance indoor air circulation to provide a more cozy living/working environment.
8.Power can be storable & rechargeable for ventilation fan working all-day-round!
Technical parameters :
Item |
Part name |
12W Model |
15W Model |
Part description |
Part description |
||
1 |
Solar panel |
12W, 17.4V, 0.689A |
15W, 17.4V, 0.689A |
2 |
Angle adjustment bracket |
Galvanization steel,δ2.0 |
Galvanization steel, δ2.0 |
3 |
About regulating |
Galvanization steel,δ1.0 |
Galvanization steel, δ1.0 |
4 |
Cover |
Galvanization steel, δ1.0 |
Galvanization steel, δ1.0 |
5 |
Wind guide cone |
Galvanization steel, δ1.0 |
Galvanization steel, δ1.0 |
6 |
Fan blade |
Galvanization steel, δ1.0 |
Galvanization steel, δ1.0 |
7 |
Air duct |
12”, Material: Galvanization steel, δ1.0 |
14”, Material: Galvanization steel, δ1.0 |
8 |
Fan blade |
Aluminum |
Aluminum |
9 |
Motor |
24-Volt DC Motor |
24-Volt DC Motor |
10 |
Motor bracket |
Galvanization steel, δ2.0 |
Galvanization steel, δ2.0 |
11 |
Bottom board |
Galvanization steel, δ1.2 |
Galvanization steel, δ1.2 |

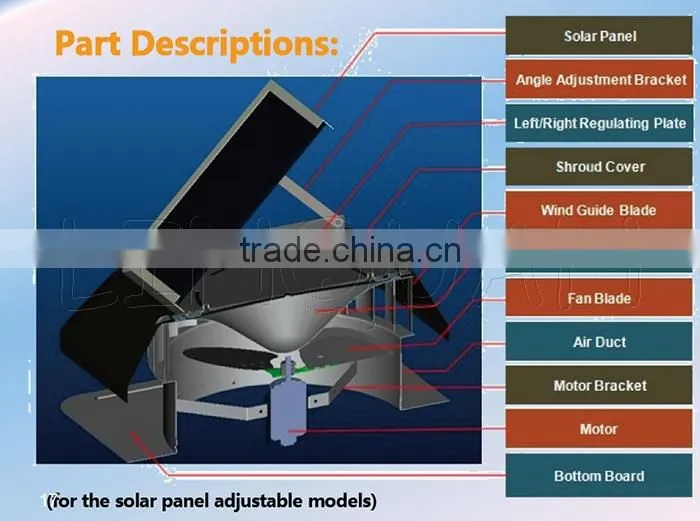

Structure:
Specification:
|
Solar powered roof exhaust fan (solar panel adjustable) |
20 watt polycrystalline solar panel (365x410x25mm), |
| 14 inch Aluminum fan blade (air duct dia. 368mm), | |
| brush / brushless DC motor, | |
| air flow: 2805CMH (1650CFM), | |
| square shroud cover, host size: 530x530x250mm, | |
| gross weight: 18KGS |
The adjustable solar panel 14 inch 20W roof mounted industrial exhaust fan can be packed as follows:
Standard package of product is 1 set per brown carton
Loading capacity:around 216sets/20 feet; 516 sets /40 feet HC
The adjustable solar panel 14 inch 20W roof mounted industrial exhaust fan can be used widely for the agricultural application,civilian application,industrial application
inan Linquan is a high-tech enterprise specialized in power products researching, manufacturing and marketing in Shangdong. We provide products including solar module, adjustable solar panel 14 inch 20W roof mounted industrial exhaust fan ,solar charge controller, off- grid inverter, LED driver and special power units etc., as well as design and supply relevant solar systems. We have passed the ISO9001 – 2008, and our products have passed CGC-SOLAR certification and CE certification as well as other domestic and international authoritative certification and a number of patents

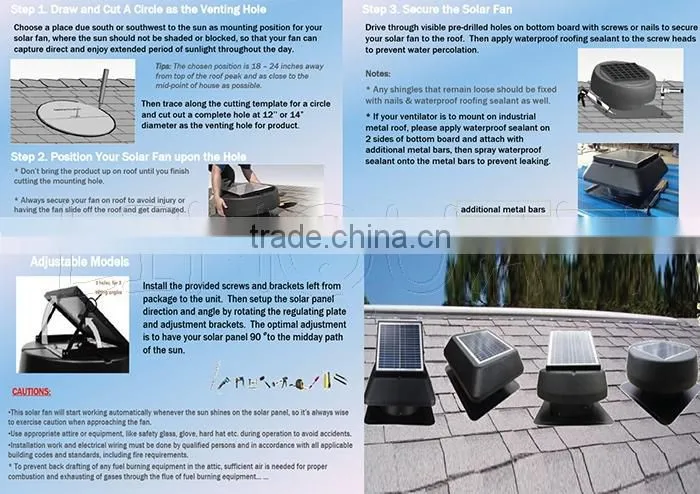

The adjustable solar panel 14 inch 20W roof mounted industrial exhaust fan can be installed as follows:
