20A DC12V/24V Waterproof Solar Controller Regulator

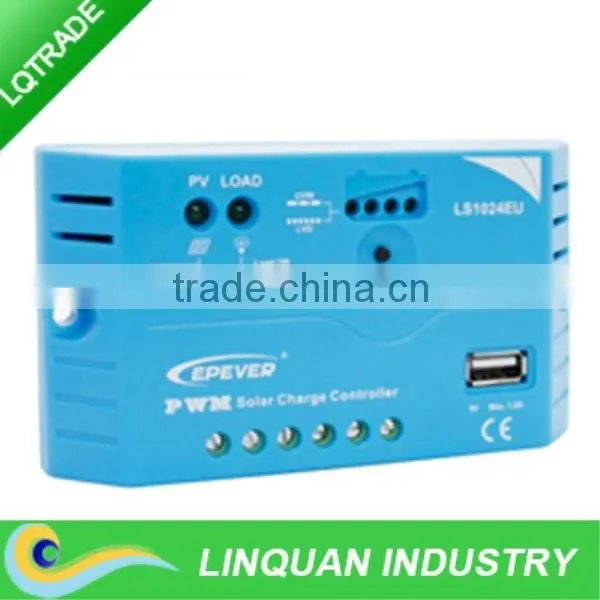

- LS0512EU / LS1012EU / LS1024EU / LS2024EU
LS - EU is newly launched an economical solar charge controller of LandStar series,For the system of nominal voltage of 12/24VDC,the controller can identify them automatically. Based on the LS-E series, LS-EU series add a +5V/1.2A USB terminal output, various unique functions and quite easy to use.
Features
·High efficient Series PWM charging, increase the battery lifetime and improve the solar system performance·Use MOSFET as electronic switch, without any mechanical switch
·LED indicators indicate battery voltage state
·The USB will provide 5VDC which can charge for electronic equipment
·Adopt temperature compensation, correct the charging and discharging parameters automatically and
improve the battery lifetime
·Electronic protection: over charging, over discharging, overload, and short circuit
·Reverse protection for battery
Electronic Protections
·Load overload protection
·Load short circuit protection
·Battery over discharge protection
·Battery reverse polarity protection
| Model | LS0512EU | LS1012EU | LS1024EU | LS2024EU |
| Nominal system voltage | 12VDC | 12/24VDC | ||
| Rated battery current | 5A | 10A | 10A | 20A |
| Max. battery voltage | 16V | 32V | ||
| Max. PV open circuit voltage | 30V | 50V | ||
| Equalize charging voltage | Gel: ----, Sealed: 14.6V, Flooded: 14.8V | |||
| Boost charging voltage | Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V | |||
| Float charging voltage | Gel / Sealed / Flooded:13.8V | |||
| Low voltage reconnect voltage | Gel / Sealed / Flooded:12.6V | |||
| Low voltage disconnect voltage | Gel / Sealed / Flooded:11.1V | |||
| USB output | 5VDC/1.2A | |||
| Charge circuit voltage drop | ≤0.26V | |||
| Discharge circuit voltage drop | ≤0.15V | |||
| Self-consumption | ≤6mA | |||
| Temp. compensation | -5mV/℃/2V (ref) | |||
| Overall dimension(mm) | 109.7x65.5x20.8 | 120.3x67x21.8 | 120.3x67x21.8 | 148x85.6x34.8 |
| Mounting dimension | 100.9mm | 111.5mm | 111.5mm | 138mm |
| Mounting hole size | Φ4.5 | Φ4.5 | Φ4.5 | Φ4.5 |
| Terminal | 2.5mm² | 4mm² | 4mm² | 6mm² |
| Weight | 95g | 103g | 102g | 179.6g |
| Working temperature | -35℃~+55℃ | |||
| Storage temperature | -35℃~+80℃ | |||
| Humidity | ≤95% N.C. | |||
| Enclosure | IP20 | |||
