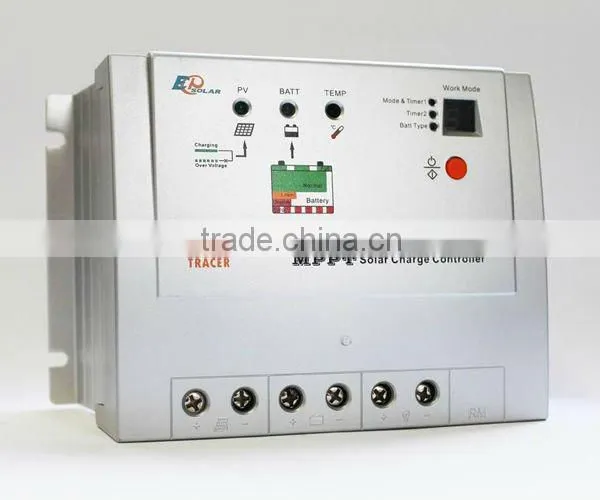

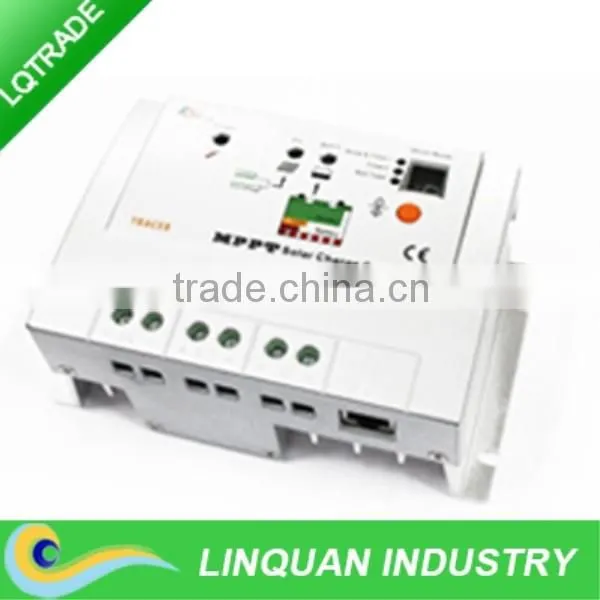

MPPT 10A Tracer-1215RN Solar Charger Controller max solar input 150VDC
Tracer series solar controller is an advanced Maximum Power Point Tracking (MPPT) controller for off-grid photovoltaic (PV) systems. The MPPT controller features a smart tracking algorithm that maximizes the energy harvest from the PV by rapidly finding the solar array peak power point based on varied temperature. The MPPT controller provides higher efficiency up to 97% with lower power loss.
Tracer is specially designed to work with all established PV modules and is optimized for thin film and grid –tied modules.
Features:
·MPPT technology
·Peak conversion efficiency of 97%
·High Tracking efficiency of 99%
·Several seconds tracking speed
·4-Stage charge with PWM output
·Nature convection cooling
·Full power output in ambient temperature up to 45 ℃
·Temperature compensation
·Sealed, Gel and Flooded battery option
·Widely used, automatically recognize day/night
·Diversified load control
·RJ45 interface &optional meter
·2 years warranty
·CE certificate
Electronic Protections:
·PV short circuit protection
·PV reverse polarity protection
·PV overvoltage alarm protection
·PV over current protection
·Battery overcharge protection
·Battery over discharge protection
·Battery reverse polarity protection
·Load short circuit protection
·Load overload protection
Specification:
| Model | Tracer-1210RN | Tracer-1215RN | Tracer-2210RN | Tracer-2215RN | Tracer-3215RN | Tracer-4210RN |
| Rated system voltage | 12/24V auto work | 12/24V auto work | 12/24V auto work | 12/24V auto work | ||
| Rated battery current | 10A | 20A | 30A | 40A | ||
| Rated load current | 10A | 20A | 20A | 20A | ||
| Max.battery voltage | 32V | 32V | 32V | 32V | ||
| Max.PV open circuit voltage | 100VDC | 150VDC | 100VDC | 150VDC | 150VDC | 100VDC |
| Max.PV input power | 12V 130W; 24V 260W | 12V 260W, 24V 520W | 12V 390W, 24V 780W | 12V 500W, 24V 1000W | ||
| Self-consumption | <10mA(24V) | <10mA(24V) | <10mA(24V) | <10mA(24V) | ||
| Charge Circuit Voltage Drop | ≤0.26V | ≤0.26V | ≤0.26V | ≤0.26V | ||
| Discharge Circuit Voltage Drop | ≤0.15V | ≤0.15V | ≤0.15V | ≤0.15V | ||
| Communication | TTL232 / 8 pin RJ45 | TTL232 / 8 pin RJ45 | TTL232 / 8 pin RJ45 | TTL232 / 8 pin RJ45 | ||
| pensation | -5mV/℃/2V | -5mV/℃/2V | -5mV/℃/2V | -5mV/℃/2V | ||
| Working temperature | -35℃~+55℃ | -35℃~+55℃ | -35℃~+55℃ | -35℃~+55℃ | ||
| Storage temperature range | -35℃~+80℃ | -35℃~+80℃ | -35℃~+80℃ | -35℃~+80℃ | ||
| Humidity | 10%-90% NC | 10%-90% NC | 10%-90% NC | 10%-90% NC | ||
| Enclosure | IP30 | IP30 | IP30 | IP30 | ||
| Altitude | ≤3000m | ≤3000m | ≤3000m | ≤3000m | ||
| Dimension | 156mm x 97mm x 68mm | 169mm x 118mm x 83mm | 242mm x 169mm x 91mm | 242mm x 169mm x 91mm | ||
| Mounting holes | 147mm x 60mm | 160mm x 80mm | 180mm x 160mm | 180mm x 160mm | ||
| Mounting hole size | Φ5 | Φ5 | Φ5 | Φ5 | ||
| Terminal | 4mm2 | 10mm2 | 25mm2 | 25mm2 | ||
| Weight | 0.55kg | 0.95kg | 2kg | 2.05kg | ||
Our solar charge controller can be packed as follows:
| Model | Product size(cm) | PCS/CTN | Carton size(cm) |
| Tracer-1210RN | 15.6*9.7*6.82 | 24 | 49.0*38.5*26.5 |
| Tracer-1215RN | 15.6*9.7*6.82 | 24 | 49.0*38.5*26.5 |
| Tracer-2210RN | 16.9*11.8*8.3 | 12 | 44.0*41.0*21.0 |
| Tracer-2215RN | 16.9*11.8*8.3 | 12 | 44.0*41.0*21.0 |
| Tracer-3215RN | 24.2*16.9*9.1 | 6 | 39.5*28.5*32.5 |
| Tracer-4210RN | 24.2*16.9*9.1 | 6 | 39.5*28.5*32.5 |
