Specifications
1)Flexible, durable2)High performance under low light
3)Shadow tolerance
4)Peel and stick install
5)No roof penetration

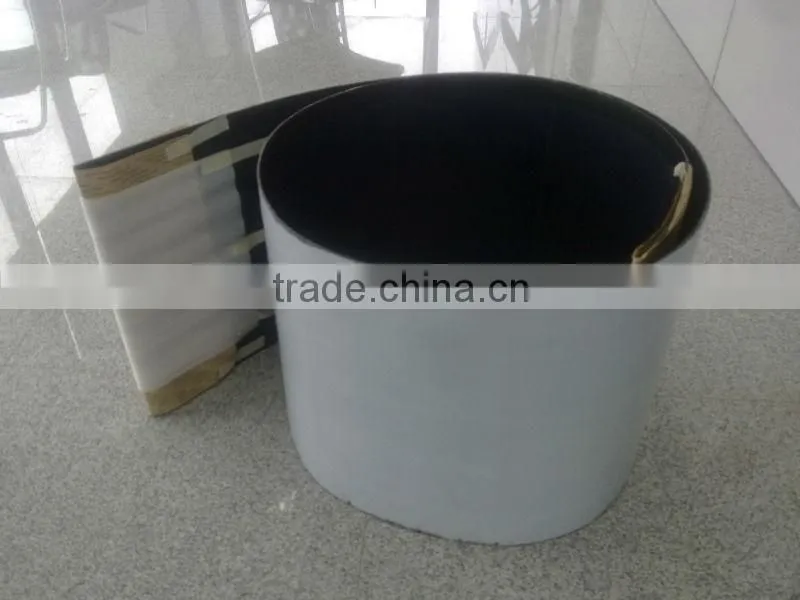

72W Peel and stick adhesive film back flexible solar panel

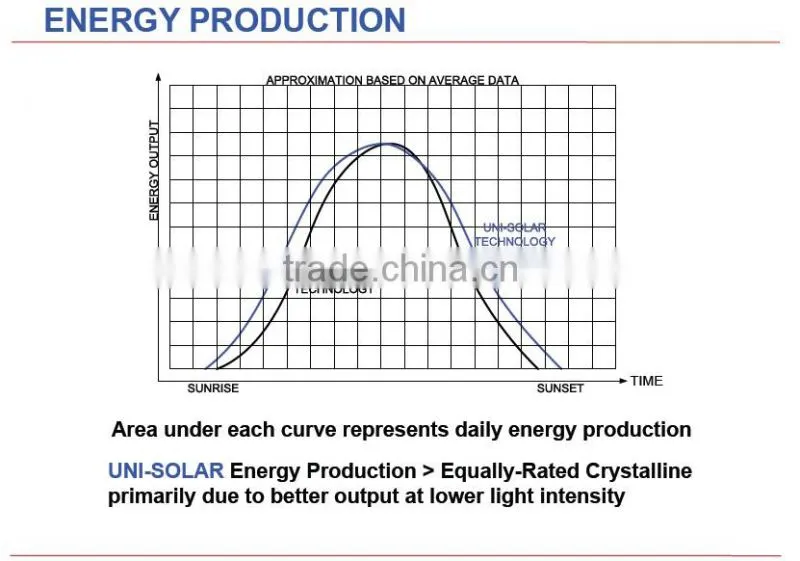

• High temperature and low light performance.
• 25 year warranty for power output 80%.
• Quick-Connect Terminals* and Adhesive Backing.

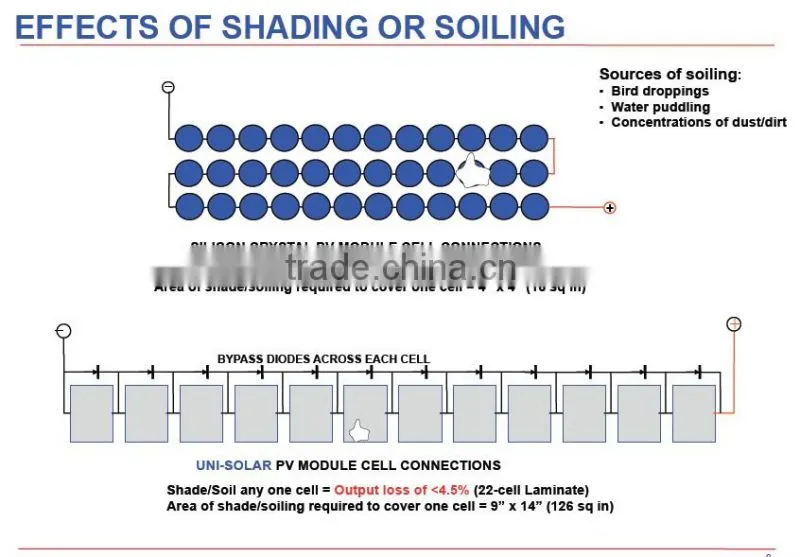

• Bypass Diodes for Shadow Tolerance.
• UL 1703 Listed to 600 VDC
• IEC 61646 v1 certified.
• IEC 61646 v2 and 61730, TUV certification pending
Performance Characteristcs.
Rated Power (Pmax): 72 Wp.
Production Pmax Tolerance: ± 5 %.
Construction Characteristics .
Construction characteristics:
Length: 2849 mm , Width: 394 mm , Depth: 4 mm ,16 mm including potted terminal housing assembly
Weight: 3.9 kg

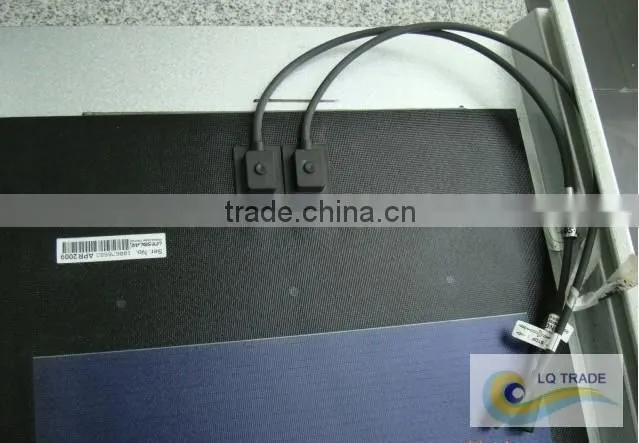

Output Cables: 2.5 mm2 cable with weatherproof DC-rated quick-connect terminals 560 mm length
Bypass Diodes: Connected across every solar cell
Encapsulation: Durable ETFE high light-transmissive polymer
Adhesive: Ethylene propylene copolymer adhesive sealant with microbial inhibitor .
Cell Type: 11 triple junction amorphous silicon solar cells 356mm*239mm .

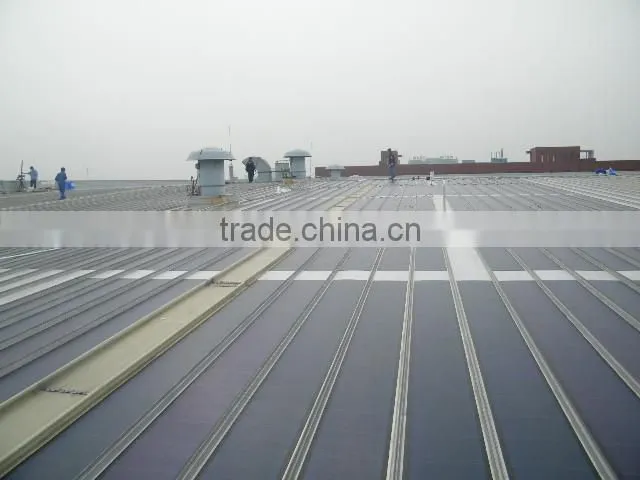

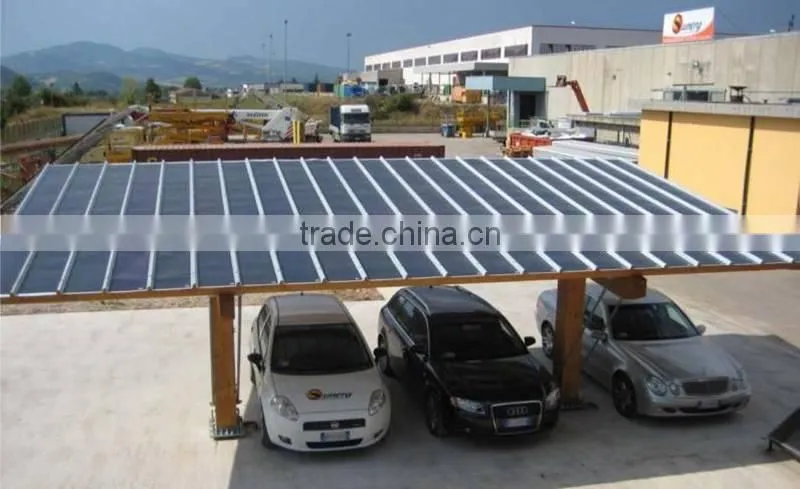

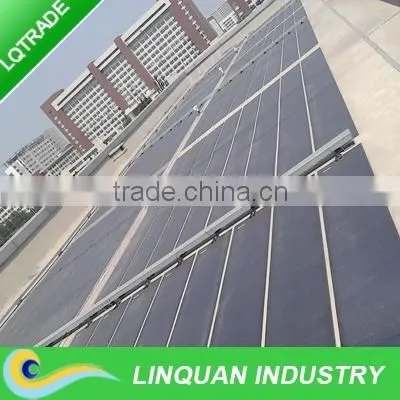

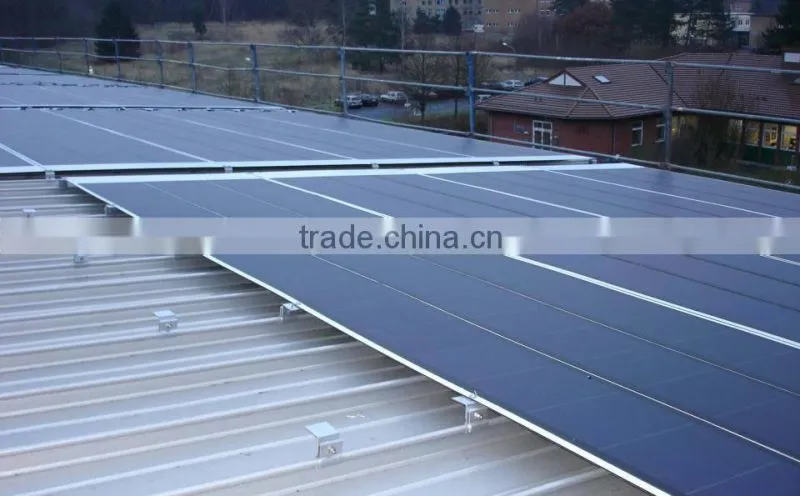

Projects for 72W Peel and stick adhesive film back flexible solar panel:

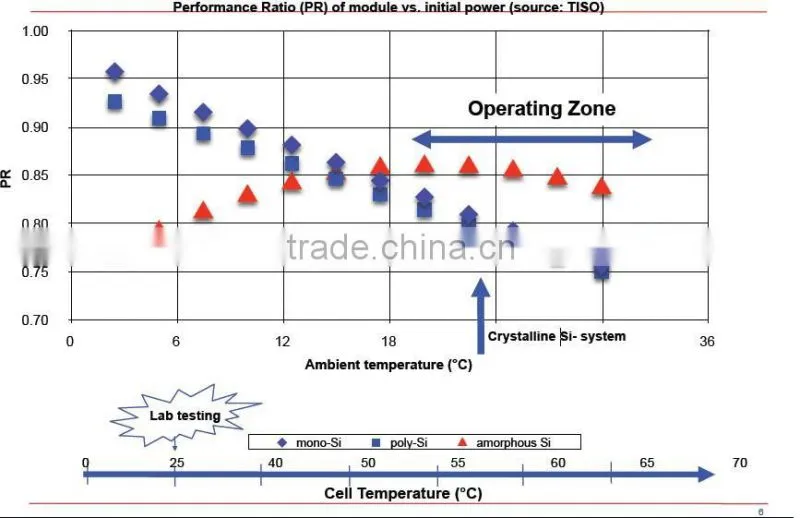

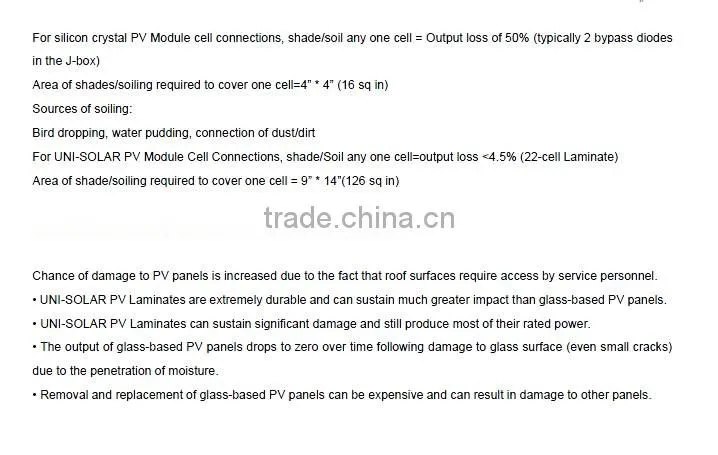

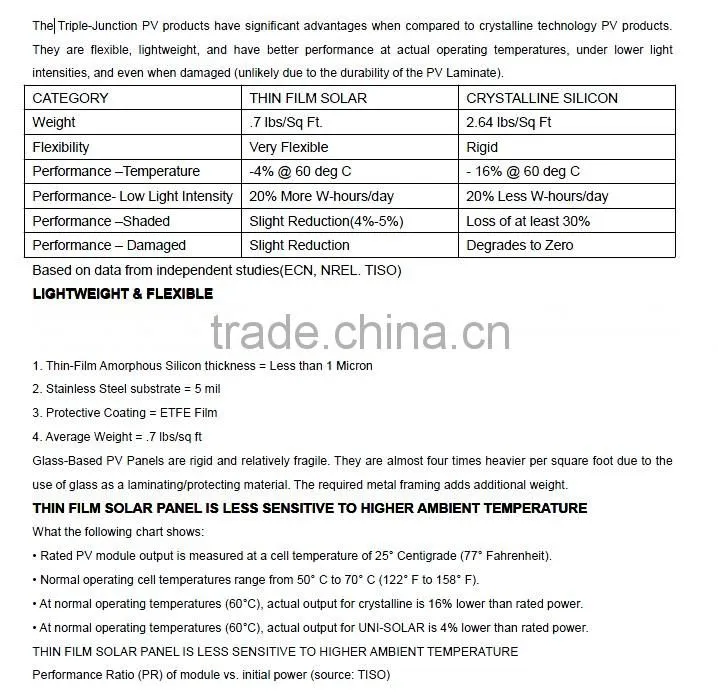

Technology introduction for 72W Peel and stick adhesive film back flexible solar panel:

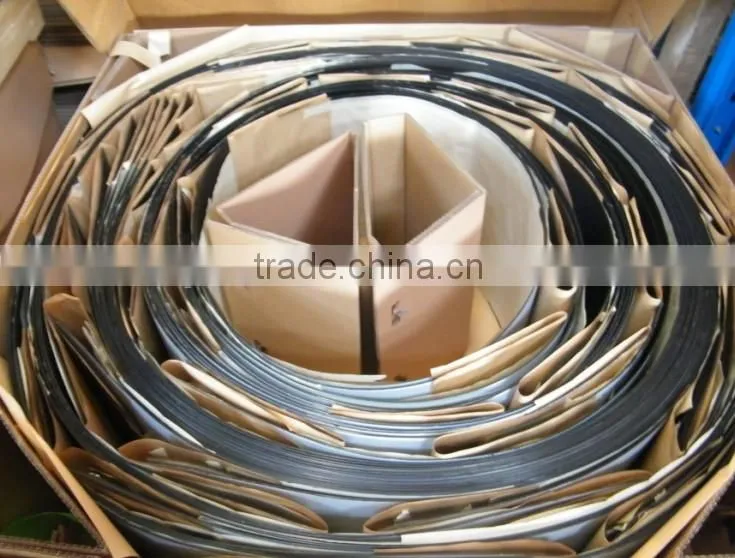

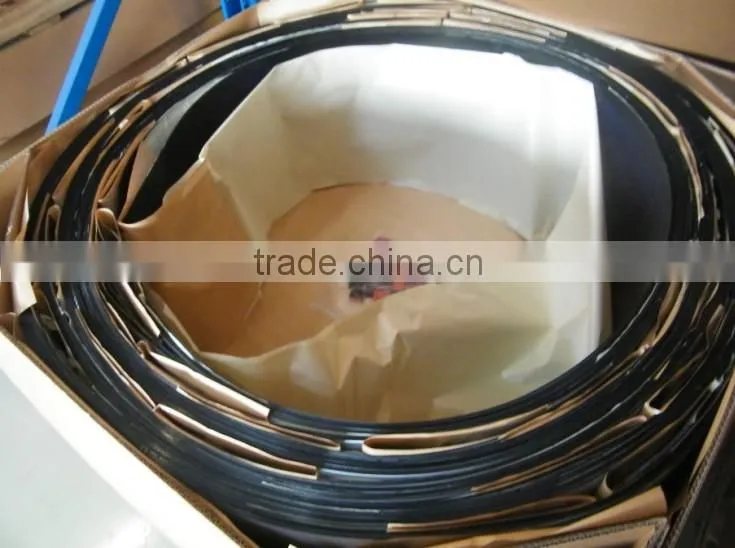

Packing detail:
