Specifications
Monocrystalline silicon solar panelWe can supply all kinds of solar panels which range from 2W to ***with competitive price

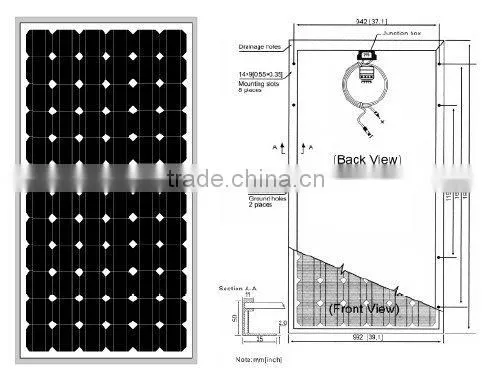

Monocrystalline silicon solar panel
Model |
Maximum power at STC(pm) |
Open cirxuit voltage(Voc) |
Optimum operating voltage(Vmp) |
Short circuit current(lsc) |
Optimum operating current(lmp) |
|
LQ200-60M |
200W |
36.10V |
29.10V |
8.10A |
6.87A |
|
LQ210-60M |
210W |
36.30V |
29.40V |
8.17A |
7.14A |
|
LQ220-60M |
220W |
36.60V |
30.00V |
8.27A |
7.33A |
|
LQ230-60M |
230W |
36.80V |
30.06V |
8.36A |
7.52A |
|
LQ240-60M |
240W |
37.10V |
31.20V |
8.42A |
7.69A |
|
LQ250-60M |
250W |
37.20V |
31.80V |
8.52A |
7.86A |
|
Parameter
Cell : Polycrystalline silicon solar cells156MM*156MM
No.of cells and connections : 60(6*10)
Dimension of module(mm) : 1640*990*40
Weight(kg):15.5
Operating temperature(°C) :-40 to +85
Maximum system voltage :1000 V DC
Temperature and coefficients
NOCT :45°C±2°C
Current temperature coefficient :%0.06±0.01/k
Voltage temperature coefficient :-(155±10) mv/k .
Limited Warranty
5 –year--products workmanship warranty .
90% --output power within 10 years after delivery
80% --output power within 25 years after delivery
Certification: CE, ISO, TUV, IEC.
