LQ-series Q80 burned Al-Zr-C slide gate plates for ladle refractory
1. Type of production design
1) High Temperature Burnt Slide Gate Plate
High preformance ladle slide gate refractories adopts tabular alumina, carbonaceous material and zirconia-containing material as main raw materials, adds in high performance antioxidants, uses phenolic resin as binder, formed under high-pressure and burned under high temperature. Mainly used in large and medium-sized ladles.
2) Low Temperature Burnt Slide Gate Plate
Tabular alumina, zirconia-containing material and spinel as major raw materials, adding in special metal, using phenolic resin as binder, being burned under low temperature to produce the products, Mainly used in small and medium-sized ladle.
3) Unburned Slide Gate Plate
Without the process of burned, tar impregnated and distilled, simple processing. Mainly used in small and medium-sized ladle.
2. Simiple production introduction
Our Slide Gate Plate refractory adopts HIgh quality bauxite materiao , also takes tabular alumina, carbonaceous material and zirconia-containing material as main raw materials, adds in high performance antioxidants, uses phenolic resin as binder, formed under high-pressure and burned under high temperature. The Slide Gate Plates have the advantages of high strength, good erosion resistance, thermal shock resistance and good stability etc., mainly used in large and medium-sized ladle.
Chemical and Physical Properties |
LQ-Series Ladle Slide Gate Plate (General) |
||
Magnesia material |
Al-C |
Al- Zr-C |
|
apparent porosity % max |
10 |
8 |
8 |
Bulk Density g/cm3 min |
3.0 |
3.05 |
3.1 |
|
Compressive strength MPa min |
120 |
120 |
120 |
Al2O3 % min |
8 |
85 |
85 |
ZrO2 % min |
|
|
4 |
C % min |
3 |
3 |
3 |
MgO % |
65 min |
|
|
Service Life heats |
1-2 |
1-3 |
1-5 |
1. Service life depends on steel-making condition, refractory slide gate and different operation mode. The above service life we supply is based on the condition of more than 100 Tons ladle.
2. For composited slide plate, we can mark different material in different part and detailed index according to the drawings.
3. Delivery time depends on the drawings. If it needs to make new mould, then we will decide then. In general it is 35-50 days.

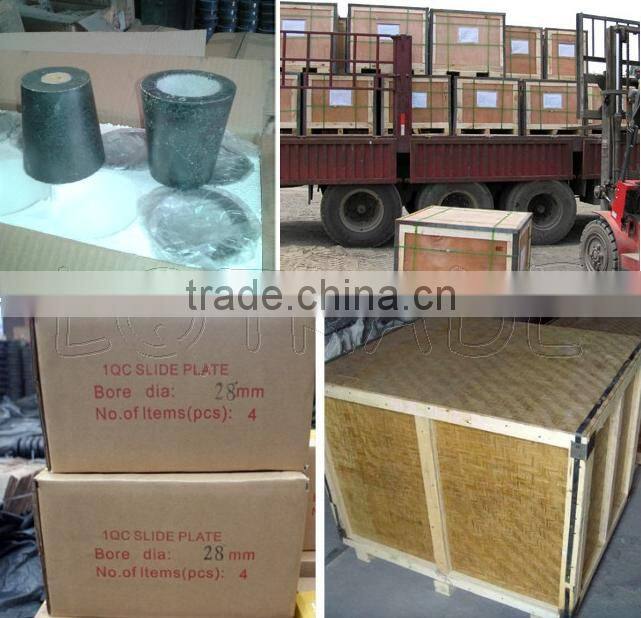

Packaging: carton+ wooden case+pallet.
Transportation&storage:Keep dry and handle with case.
To be kept upright.
1) Location advantages
Jinan is one of the hub cities in China, in the east with the west's position in Shandong province. China's cross-center of Beijing-Shanghai Railway with Beijing-Guangzhou Railway, is an important cities of logistics nodes, the usual port for the export of Qingdao
Port, Tianjin Port; it is also the gateway connecting East and North of China, and one of the most dynamic economic development
cities in China today.
2) Scale advantages
Our company is the largest professional production base for sliding gate in china, with a total area of 300,000 square meters, more
than 2000 employees,including over 180 R&D personnel,grants and identified,by provincial and municipal,with the"leading enterprise
for technology""private Technology Enterprise","high-tech enterprise" and "Shandong Famous Brand","quality Trustworthy Enterprise
", has five subsidiaries and production base, 37 high-quality suppliers, and 19 international distributors.
3) Technical advantages
The company has domestic leading production technology and production equipment, is a national high-tech enterprise for three
decades of growth. Provide with high quality, efficient industrial and service quality for customers. More than 95% of R&D personnel
are among the metallurgical industry leaders, with good work experience and high technical level. We are the patent owner of the
sliding gate, is a pioneer of contracting services in steel. In strict accordance with ISO9001-2000 quality system standards and is
certified. Have the leading position in the peer.
4) Service advantages
Our company is the largest supplier of refractory material in China, providing all in one stop service of scientific research,production,
development,import and export, customer needs, providing customers with solutions to problems is always our goal.

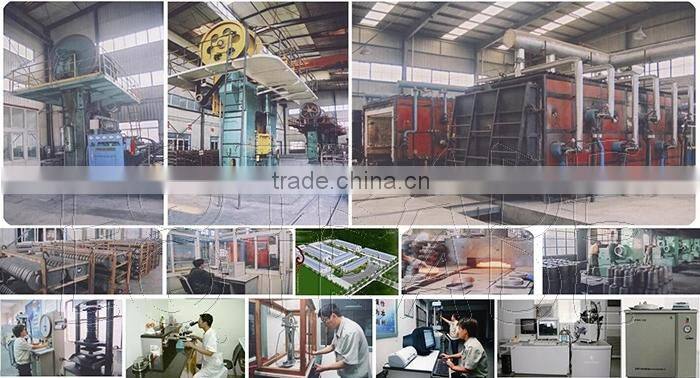

Main Production Equipment:
Friction brick press 400t 1 units
Friction brick press 500t 2 sets
Friction brick press 630t 5 sets
Friction brick press 1000t 4 sets
Vacuum composite PRESS 1000t 3 sets
Hydraulic press 630t 2 sets
Wet grinding machine 8 sets
The mixing machine 4sets
Tunnel kiln 8 sets
Shuttle kiln 3 sets
Well-know customer cases:
Linquan has established reputable cooperation with markets in Russia, India, Turkey, Italy, United-stated, South Africa, etc. Our domestic clients include Shougang Group, Baosteel, the mountain of steel, sand and other most popular steel companies. Linquan is the direct suppliers to world-famous companies such as Arcelor Mittal steel mill, Tata etc.
