Specifications
underfloor carbon heating film1)quick temparature rising
2)longer transfer of heat
3)No space for a boiler
China supplier underfloor carbon heating film
China supplier underfloor carbon heating film is detailed as follows:

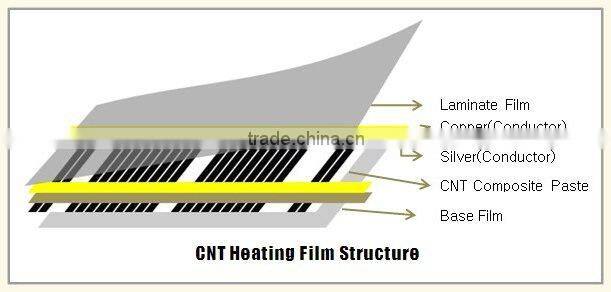

1.Structure:
It is an innovative heating system that is made with gravure printing of heat generating carbon tissue on PET Film and opper busbar. Since it emits far infrared rays and anions,warm radiant heat can be felt for a well-being life.
2.Benefits Heating film
1) Energy can be saved more than 65%.(On regular basis)
2) No need space for boiler
3) Far infrared radiation (90.3%) and anions (250cc) are emitted to improve health.
4) Don’t worry about smoke, noise, fueling, freezing.
5) Convinient control such as sectional heating, central heating and sectional control.
6) One day installation and immediately usable
7) Free to choose of finishing materials
8) Fast installation without taking off the existing floor
9) It can lower the height of ceiling and the weight of building.
3. Heating film
1. Burning resist PET application : The ivory PET Film is used the XB-65 with VTH-2 chip in for heat defying insulation which has the UL Certificate and is manufactured by Doraysaeghan.

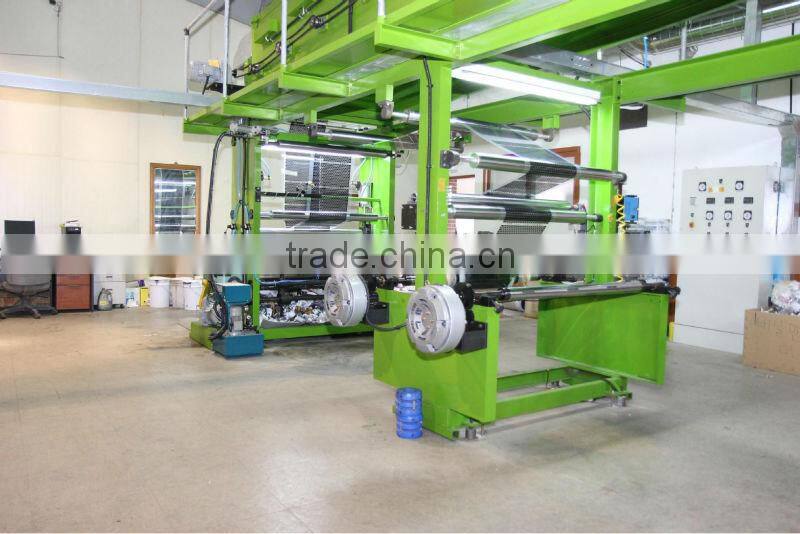

2. Gravure printing : As screen printing cannot print carbon tissue evenly, it is inappropriate for
the heat generating plate. It can be partially overheated to cause fire and short circuit. We,
however, have chosen the gravure rotary printing press to pursue to the safety by giving electric
resistance evenly to the Heat Generating Plate.
3. Wide silver space : The silver space is for the space between carbon and copper busbar where
the electrical energy is converted to thermal energy. This space prevent spark, and is important
part related to product life and safety. We broadened this space for safety.
4. Copper busbar with 12mm of width and 10amp : Wide copper busbar to restrain overheating.
The thinner PET has superior adhesive strength and keeps air cut.

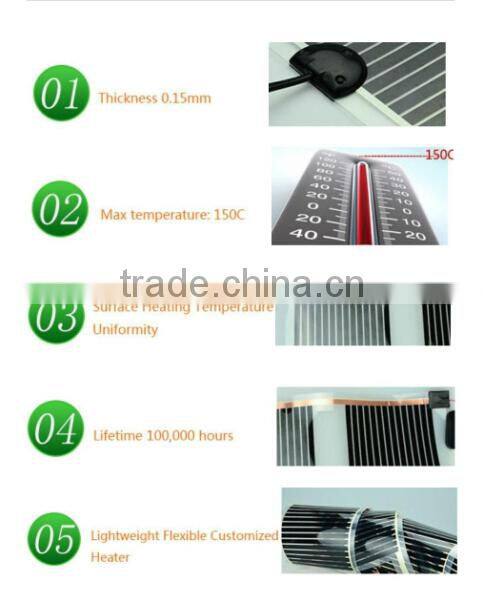

4.Product Feature:
1)Ideal for installation under any type of floating floor, including laminates.
2)Provides radiant floor heat with a level of comfort that no other heating method can match
3)Benefits the human body by applying for infrared heat .
4)No electromagnetic waves emitted from the heating film.
5)With its slim design, it is simple to install and ready to use.
6)Able to select desired temperature level for your own comfort .
7)Small or partial application is possible.
8)Extremely energy efficient
9)Produces negative ions.

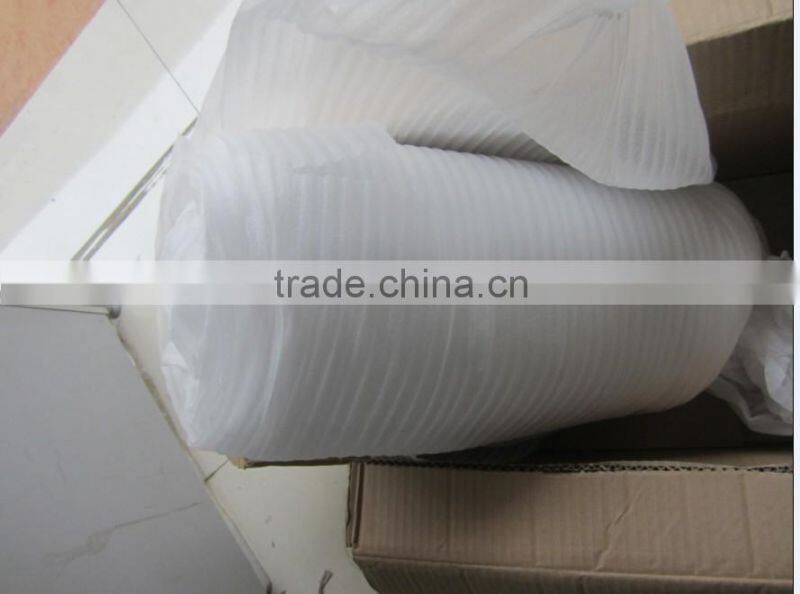

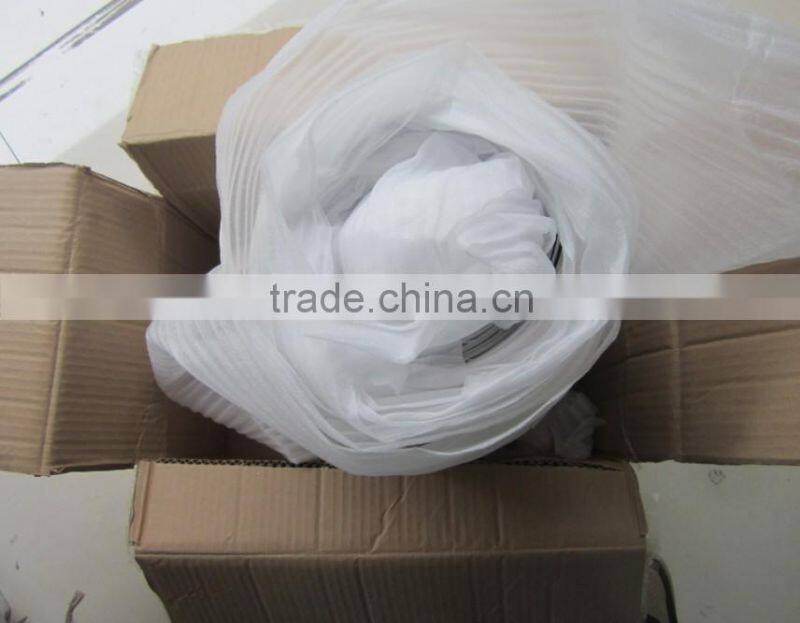

China supplier underfloor carbon heating film can be packed as follows:

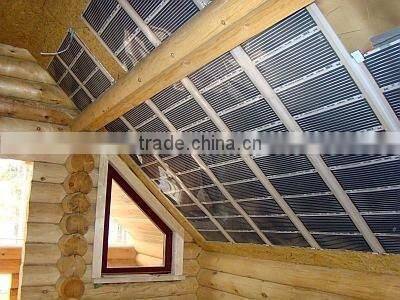

China supplier underfloor carbon heating film is ideal for during the certain time for the sectional space that needs to be heated because it requires a short period of time to make heat so suitable for customer, accommodation, office, church, restaurant, and stairs. For stable use, we recommend you to use the hardwood as the finishing material. If you are using for the linoleum finishing or humid environment, you need to consult with a construction company.can be used widly.
1)Hotel, Motel, Condo, Institute and School dormitory
2)Office, building
3)Restaurant
4)Pension, Bungalow
5)Kindergarten
6)Hospital
7)Church, Temple, Training Institute
8)Container, Steel house
9)Balcony of apartment, Remodeling

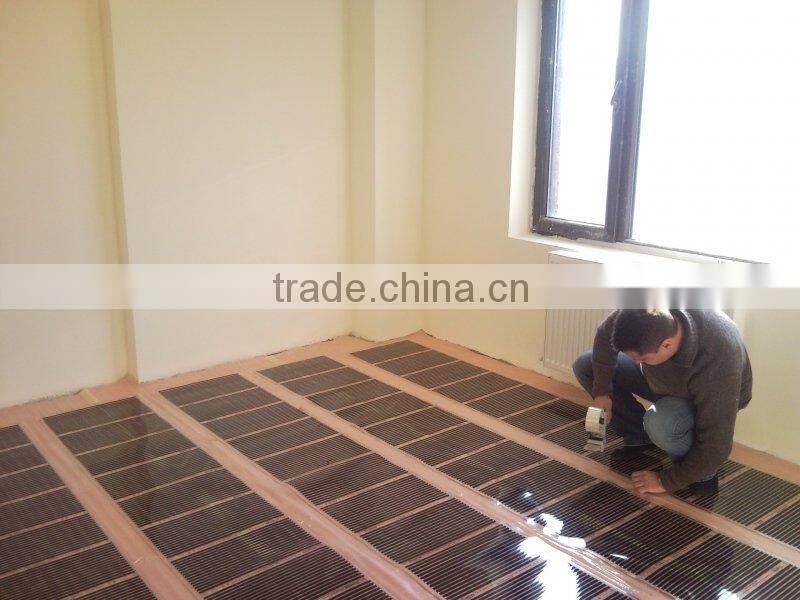

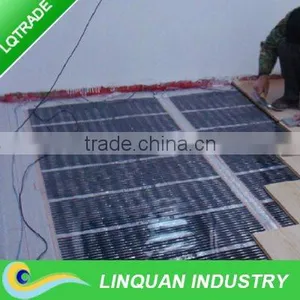

China supplier underfloor carbon heating film can be installed as follows:

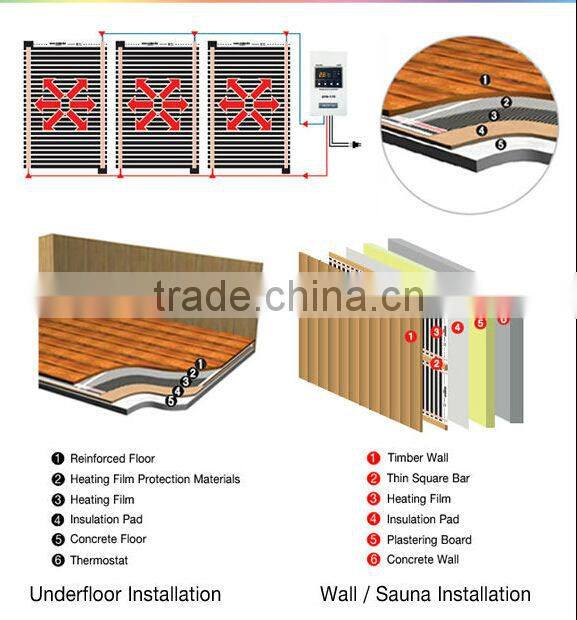

1.Structure of installation
Caution
Because film heating is a dry method, cement mortar finishing (wet) may cause defect.
Use compression protective board when applying tecotile or monoleum.
2. Insulation steps:

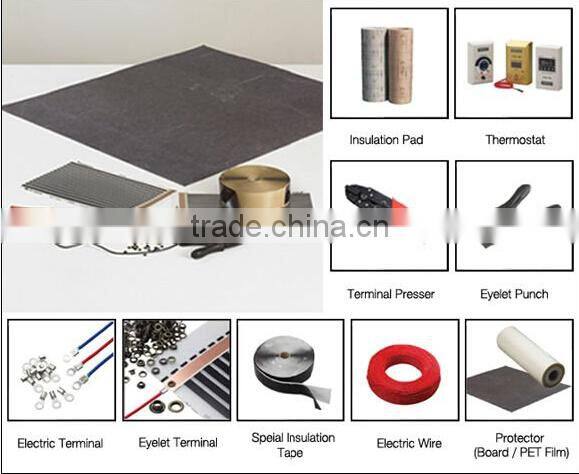

3. Installation tools and materials:
Jinan Linquan produce the best quality heating film specialized for PTC heating film.Our product ranges is from insulation pad,infrared heating film ,PTC KS-25%,saving & saftey PTC KS-50% heating film and latest model third generation PTC heating film called PTC ks-ST 30% heating film which can be used in wet conditons.Our company development for new technology is on dally base,attention to the application development,scientific and technological achievement. We aslo hope to cooperate with companies ,who have advanced need to use heating technology of 21st century in order to realize sucess in heating markets. Linquan production ability is heating film in any size and power by customer's market request.
