Friendly to environment Infrared heating film for Japan

Specifications

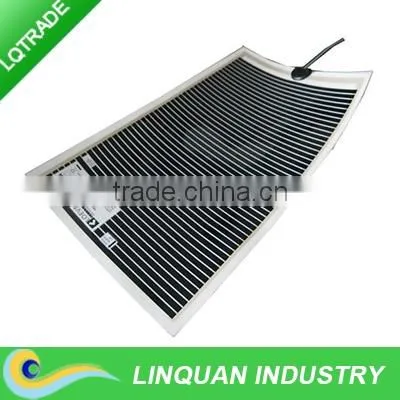

Infrared film heater carbon
1)quick temparature rising
2)longer transfer of heat
3)No space for a boiler

Friendly to environment Infrared heating film for Japan





2.Benefits Heating film

1) Energy can be saved more than 65%.(On regular basis)

2) No need space for boiler

3) Far infrared radiation (90.3%) and anions (250cc) are emitted to improve health.

4) Don’t worry about smoke, noise, fueling, freezing.

5) Convinient control such as sectional heating, central heating and sectional control.

6) One day installation and immediately usable

7) Free to choose of finishing materials

8) Fast installation without taking off the existing floor

9) It can lower the height of ceiling and the weight of building.



3. Heating film

1. Burning resist PET application : The ivory PET Film is used the XB-65 with VTH-2 chip in for heat defying insulation which has the UL Certificate and is manufactured by Doraysaeghan.

2. Gravure printing : As screen printing cannot print carbon tissue evenly, it is inappropriate for

the heat generating plate. It can be partially overheated to cause fire and short circuit. We,

however, have chosen the gravure rotary printing press to pursue to the safety by giving electric

resistance evenly to the Heat Generating Plate.

3. Wide silver space : The silver space is for the space between carbon and copper busbar where

the electrical energy is converted to thermal energy. This space prevent spark, and is important

part related to product life and safety. We broadened this space for safety.

4. Copper busbar with 12mm of width and 10amp : Wide copper busbar to restrain overheating.

The thinner PET has superior adhesive strength and keeps air cut.

4.Product Feature:

1)Ideal for installation under any type of floating floor, including laminates.

2)Provides radiant floor heat with a level of comfort that no other heating    method can match

3)Benefits the human body by applying for infrared heat .

4)No electromagnetic waves emitted from the heating film.

5)With its slim design, it is simple to install and ready to use.

6)Able to select desired temperature level for your own comfort .

7)Small or partial application is possible.

8)Extremely energy efficient

9)Produces negative ions.







1.Structure of installation





Caution
Because film heating is a dry method, cement mortar finishing (wet) may cause defect.
Use compression protective board when applying tecotile or monoleum.



2. Insulation steps:



3. Installation tools and materials:
