72W amorphous silicon flexible solar panels
- 100000 Watt / Watts per Month
- SHENZHEN/SHANGHAI
- T/T Credit Card
- 12V Portable Mini Air Pump
- DC 12V Portable Heavy Duty Plastic Shell Air Compressor with Light Quality Choice
- Electric Portable Heavy Duty Plastic Shell Air Compressor -30mm 2 Cylinder
- 12V Heavy Duty Plastic Shell Air Compressor with Light
- 12V Mini Heavy Duty Plastic Shell Air Compressor Price
- 12V Heavy Duty Car Air Compressor /Tire Inflators with light - 30mm Cylinder
Product Details

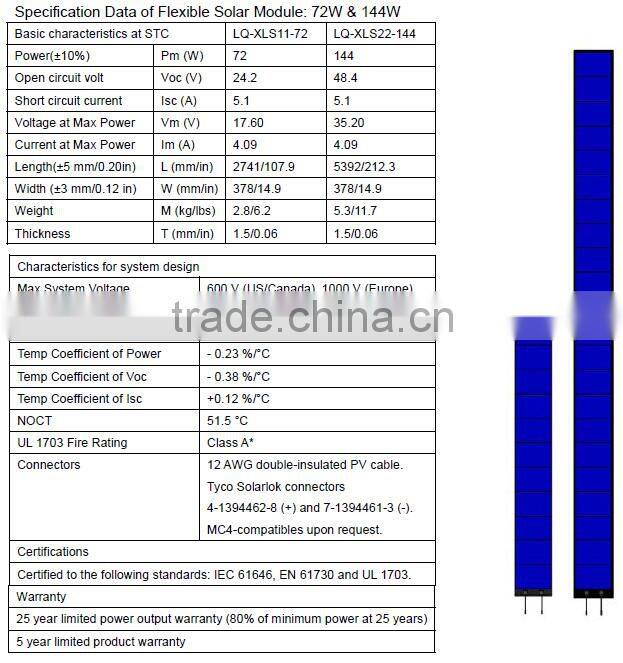

Place of Origin: | Shandong, China | Brand Name: | JN-UNISOLAR | Model Number: | LQ-S11-72 |
Material: | Amorphous Silicon | Size: | 2741MM*378*1.5MM, 2741MM*378MM | Number of Cells: | 11 |
Max. Power: | 72W |
Product Description

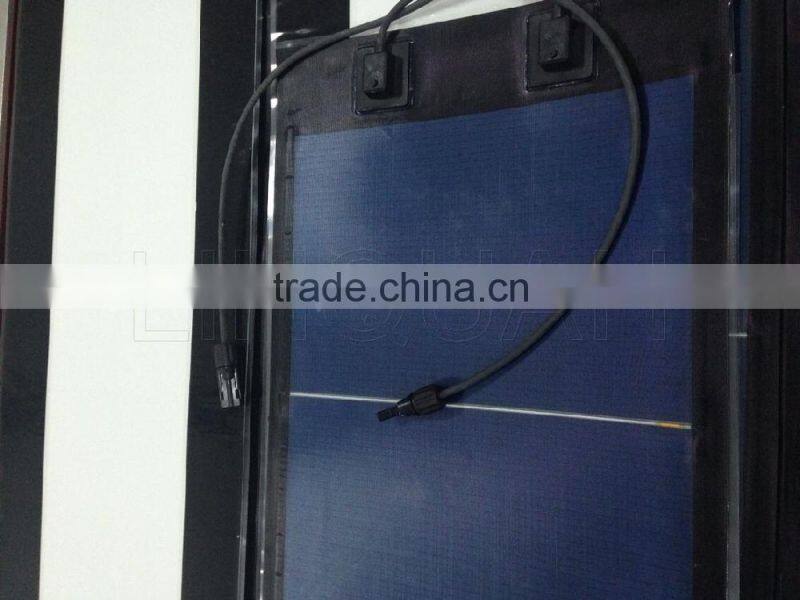

72W amorphous silicon flexible solar panels
PRODUCT DESCRIPTION flexible solar panels:
With back adhesive tape or non-adhesive film back, offers a wide options of installation methods for customers.
The flexible solar panels are specifically designed for rooftop installations.
These products all use the bandgap-tuned triple-junction thin-film silicon solar cells.
We also welcomes inquiries for custom sized product.
Our flexible manufacturing process can allow us to offer custom product at relative low minimum volumes.
Our thin film flexible solar modules can be utilized for either on-grid or off-grid applications and they come backed by our 25 year power-output warranty.
Our flexible solar panels are produced using the innovative and patented manufacturing process
and are designed to deliver high energy efficiency at a low cost for years to come.
TECHNOLOGY:
-Product Design
Roll-up flexible solar panels on stainless steel plates are manufactured by a roll-to-roll process.Which allows the company to produce triple-junction thin film silicon solar cells on rolls of thin stainless steel substrates, three feet wide and up to one mile long.
The long stainless steel web is guided through a series of vacuum chambers for the deposition of nine semiconductor
layers using a plasma enhanced chemical vapor deposition process, and back-reflector and top electrode layers using a sputtering process. The combined thickness of the layers for the triple-junction solar cell is approximately one hundredth of the thickness of a typical sheet of paper.
Therefore, only a small amount of silicon is used.
We have made advancements to the manufacturing process that allows it to market these products at a very attractive
price point. However, the basic technology used in the cells and packaging techniques used in the modules are well proven,
predictable and have an operating history of over ten years in the field.
-Process
The core of flexible solar panels ’s technology are the semiconductor compositions called thin-film silicon (tf-Si) which are used to convert sunlight into electricity.
These materials are ideal solar energy technologies for many applications for the following reasons:
1. Efficient absorption of sunlight with ~1 µm thick film (vs 180 µm Si wafer)
2. Low manufacturing cost
3. Produced at low temperatures with short energy payback time
4. Can be used with low-cost substrates such as plastic, glass, and metal
5. Proven manufacturing process and product durability
6. More energy output per rated Watt
7. No toxic substance in the product
8. No supply shortage
9. Multi-junction device structure for higher conversion efficiency
To produce tf-Si modules, we utilize its proprietary high-speed, low-cost roll-to-roll manufacturing process. This automated process allows us to transform a roll of steel 3 feet wide by a mile long into highly-efficient solar cells. As the metal foil is rolled, plasma-enhanced chemical vapor deposition systems and a magnetron sputter deposition system apply a chemical compound creating high-quality thin-film silicon solar cells.
Once the solar cells are created, the milelong roll then moves to the module manufacturing stage where the individual modulesare fabricated into finish product.
During this significantly automated process, the solar cells are cut to specs, wired, encapsulated, and packaged,
which ultimately results in durable, flexible, lightweight, and powerful solar modules.
ADVANTAGES OF flexible solar panels:

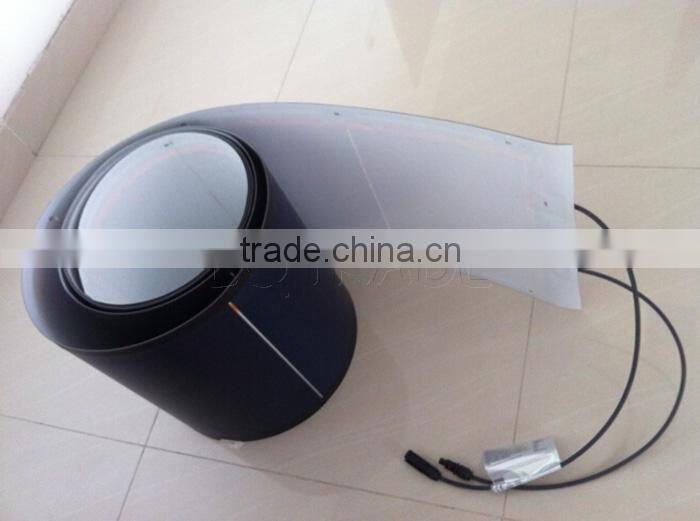

1. Flexible
Flexible solar modules are produced utilizing a thin stainless steel substrate and flexible lamination polymers which equate to a thickness of ~1.5 mm. This allows our modules to be used for a wide variety of applications.
2. Lightweight
Flexible solar modules(~.5 lbs/sq. ft) are roughly three times lighter than rigid glass based PV modules, which means they can easily be installed on rooftops that may not be able to take the weight of glass modules and their support structures without the need for costly roof reinforcement modifications.
3. High Performance
Thin film amorphous silicon based PV modules offer better power performance in actual outdoor conditions vs. some other
solar technologies that currently dominate the market.
4. Durable
Our flexible solar panels are flexible and lightweight and do not utilize glass which make
them very durable and resilient to most weather conditions.

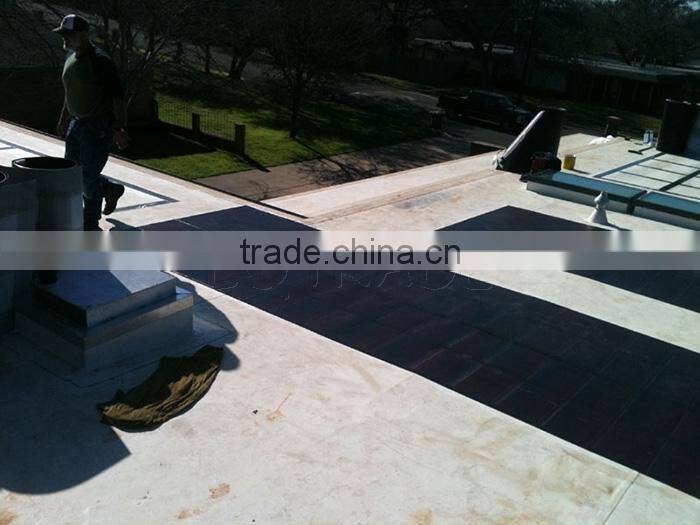

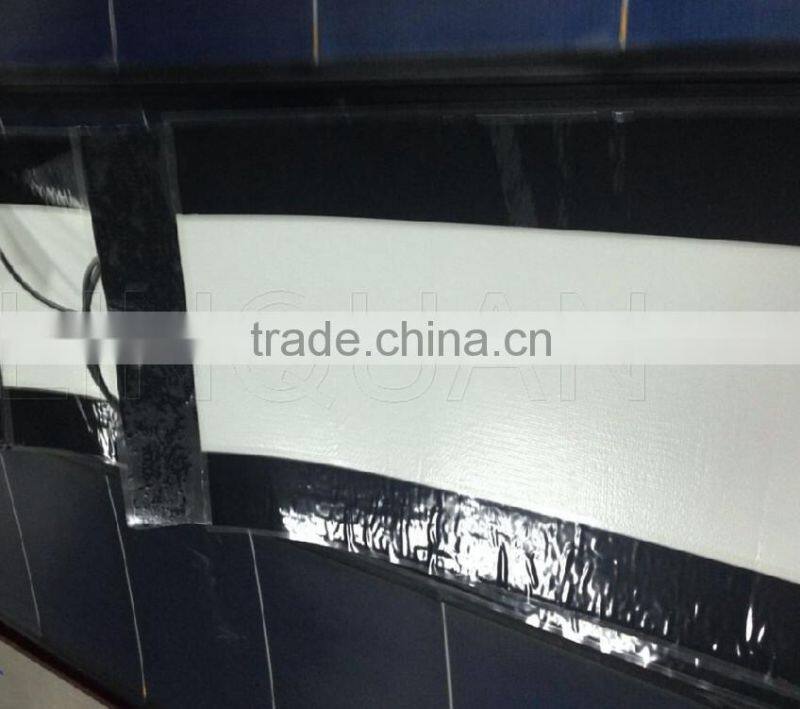

5. Easy to Install
Our flexible solar panels
can be integrated into a building’s roofing membrane or rolled on and adhered which allowsfor easy installation
and also eliminates the need for roof penetrating racking structures.
Below is a comparison of a typical thin-film CdTe glass panel (~5 to ~6.8 mm thick) and our flexible, thin-film silicon module on stainless steel (~1 mm total thickness).

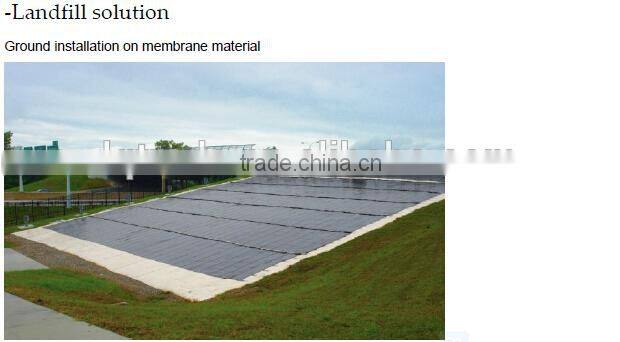

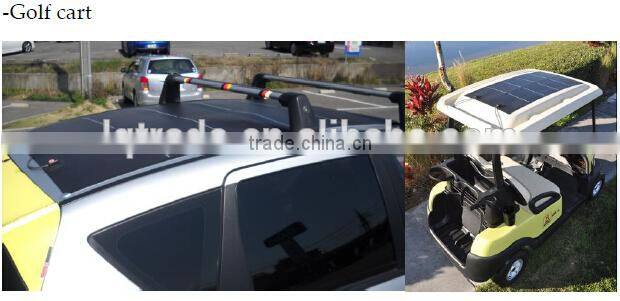

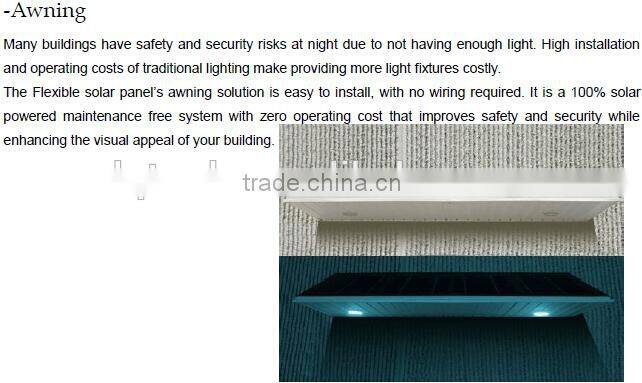

APPLICATION & SOLUTION for flexible solar panels:
