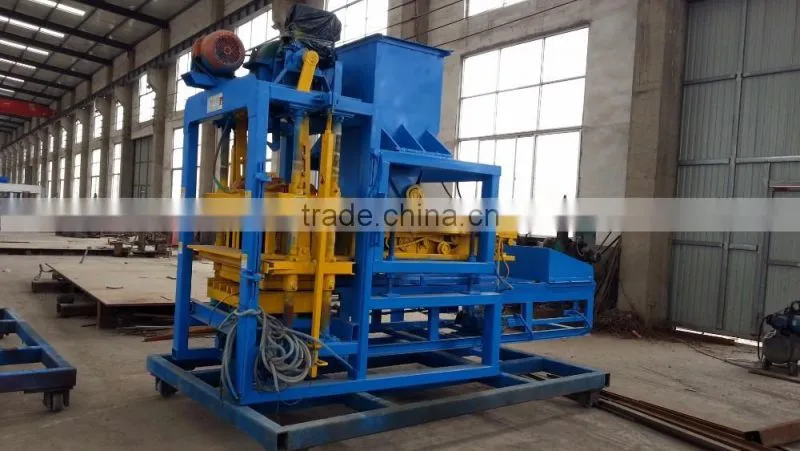

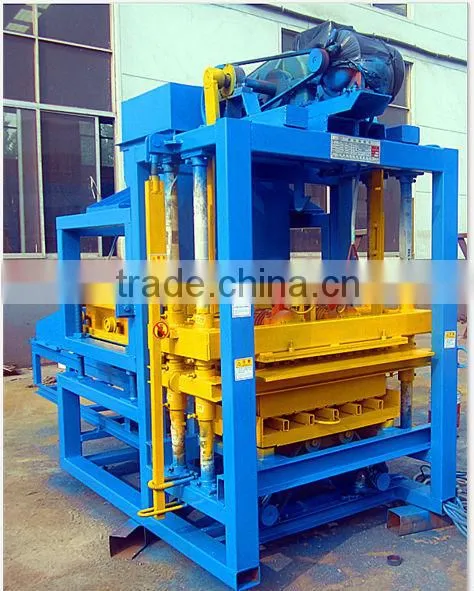

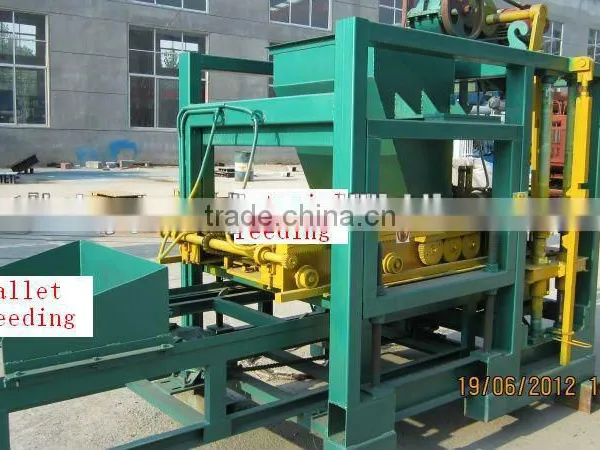

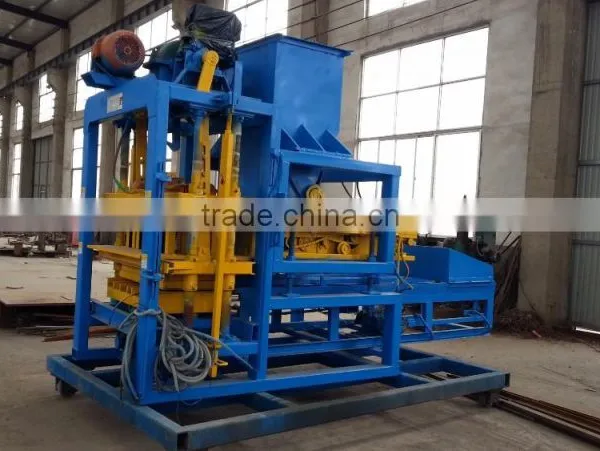

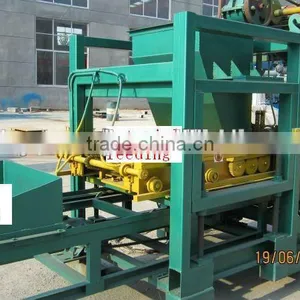

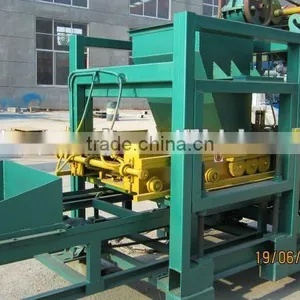

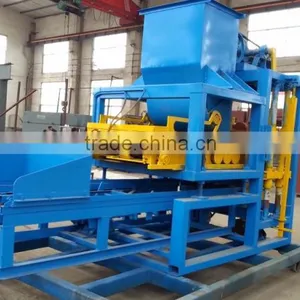

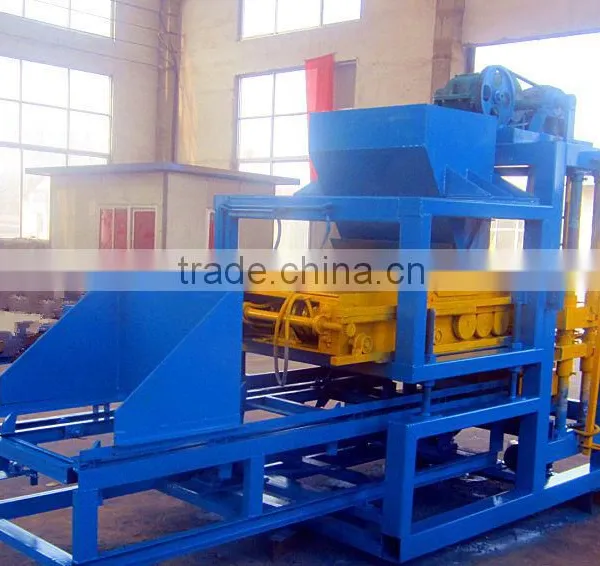

Help CenterSemi or Automatic Operation QT4-25 Concrete Block Making Machine Huarun Tianyuan Factory
Related Products
-
Qt4-26D Widely Used Concrete Block Making Machine/block Making Machine ukUS$ 1 - 9,000MOQ: 1 Set -
QTJ4-26C Interlocking Cement Block Making Machine for SaleUS$ 1 - 6000MOQ: 1 Set
-
QTJ4-35 Widely Used Concrete Block Making Machine for Sale in UsaUS$ 1 - 9,000MOQ: 1 Set
-
Qt4-26D High Quality Concrete Block Making Machine /Small Brick Making MachineUS$ 1 - 9,000MOQ: 1 Set
-
High Strength Easy Operation QTJ4-26C Vibrated Block Making MachineNegotiableMOQ: 2 Sets

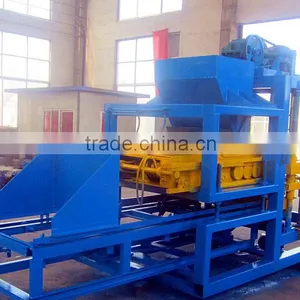

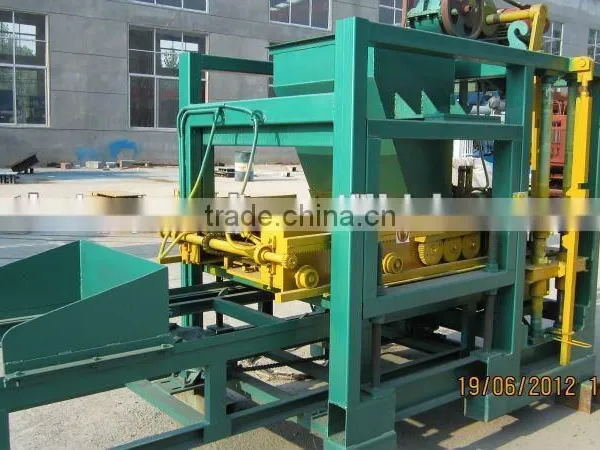

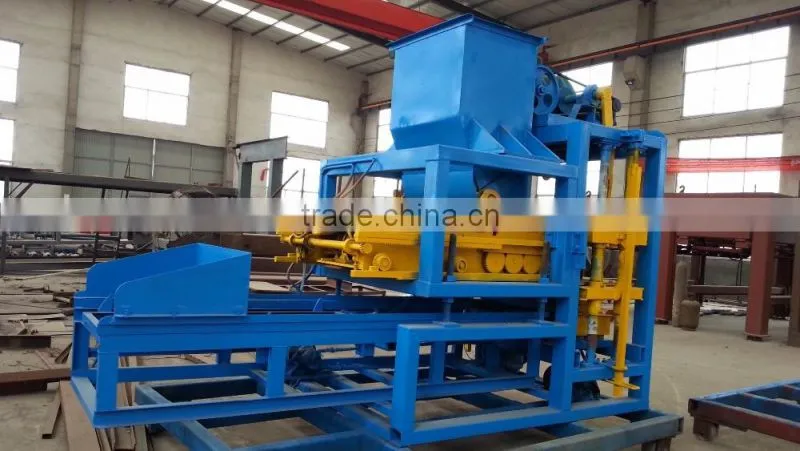

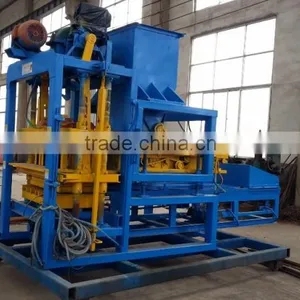

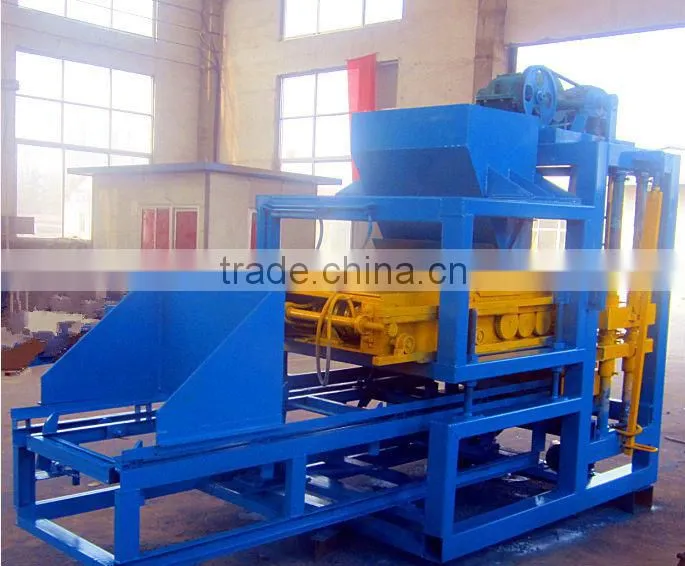

1- Molding machine QTJ4-25 .
2- Advantage of molding machine,
1- Automatic with Siemens PLC control system and Touch-operating Panel, use less labor.
- Semi automatic is more easy installment and operation.
2-It has material feeder, pallet feeder, Block receiver, its capacity is more high than the other semi mechanical machines.
3- It could make many kinds hollow blocks and interlocking wall bricks by changing different molds.
4- Quality Insurance:
PLC and Motors from Siemens Brand, Switch from Siemens or CHTN.
Molds are made of Manganese steel, long lifetime.
5- Certificate: ISO quality control, CE (MD+LVD).- European Quality.
3- Productivity of molding machine, .
Brick/Block |
Size |
Pc/Mold |
Pcs/Hour |
Block |
390x190x190mm |
4 |
480 |
Block |
390x140x190mm |
5 |
600 |
Block |
390x90x190mm |
8 |
960 |
Solid Brick |
240x115x53mm |
21 |
2520 |
Paver Brick |
200x100x60mm |
14 |
840 |
4- Technical parameter
1-Main machine Dimmension: 3100x2000x2500mm.
2-Vibration Form: Platform Vibration & Uper Vibration.
3-Vibration Frequency: 4500-5000r/min.
4-Pallet Size: 850x550mm.
5-Molding Cycle: 25-40s.
6-Electric Power: 17.25Kw.
7-Main Machine Weight: 5Ton.
8-Material Consumption: 40-70Ton/day.
9-Electric Consumption: 35Kw.h/day.
10-Water Consumption: 3ton/day.
11-Worker: (4-5person).
5- Loading and our factory
6- Brick molds picture
7- Brick machine types.
We have many types of concrete brick making machine.
The bigger types are QTY12-15, QTY10-15, QTY8-15.
The middle types are QTY6-15A, QTY6-15B, QTY6-15C, QTY4-15A, QTY4-15B, QTY4-15C, QTY4-20C, QTY3-15.
The small types are QTJ4-25, QTJ4-26C, QTJ4-26D, QTJ4-35, QTJ4-40.
Please kindly choose according to actual requirements.
*Huarun Tianyuan Factory
1* We are the professional manufacturer of AAC Block Plant& Concrete Brick Block machine & Expanded Perlite Slab Molding Machine & EPS Insert Concrete Hllow Block Machine, & Fireproof door core making machine, with high technology research develop teams, more than 15years experience in this fields, cover 80000sqm and more than 400 staffs.
2* Our products with CE/ISO certification had been sold to more than 106 countries, and well received high acceptance.
3* We had successfully designed the Slope protection brick machines for South-to-North water diversion project, this is the biggest water diversion project in China Government.
4* We had successfully designed EPS(polystyrene) insert concrete hollow block machines. For chinese North-East building company.
5* We had successfully designed thermal insulation Expaned Perlite Slab molding machines for outside wall heat insulation. We are top leader in Chinese markets, share more than 95% markets.
6* We ensure our products quality and best after sales service.
We will do the best with clients' advice and susgestion.
Packing:
Nude in container. Or in plastic bag as per clients needs.
Shipping:
Big machines
(QTY12-15, QTY10-15, QTY8-15, QTY6-15A/B/C, QTY4-15A/B/C, QTY4-20C)
1: From mixer to stacker need one 40ft high container.
2: If need silo and batching machine too, it will need total 3x40ft high containers.
Small machines( QTY3-15, QTJ4-25)
1: From mixer to Block receriver, need one 20ft container.
2: If with stacker, it will need one 40Gp.
Small machines(QTJ4-40 QTJ4-26C/D, QTJ4-35).
Loading size is from 8cbm to 17cbm, in LCL or 20Gp.
7*24hours online service.
@:Designing ,technical support and project;
@Engineer available for overseas installation and adjustment;
@All necessary documents and drawings and videos for free;
@Warranty one year after delivery.
@ 24hours Online service for all life time.
1: Keep the machine in dry environment.
2: Before the first production, please fill hydraulic oil into the tank, keep the oil level higher than 80/180degree. And pay more attention to the oil Pressure.
3: Please check the Sensor position before each shift, and tighten them again.
4: After each shift, please cleaning all the equipments, and lubricating each running parts.
5: Please cut off the Total Power when User maintaining the machine.
6: When need to change mold, please discharge or install them slowly and keep the Up mold foot safety. Please do it as our video.
7: If need technical help, please call 0086-539-3551999, 24hours online service.
Or please chat by Trade manager: cntianyuanzj
Or Send Email: tianyuanzj at .
WhatsApp: 008615006593716
