red brick making machine in india

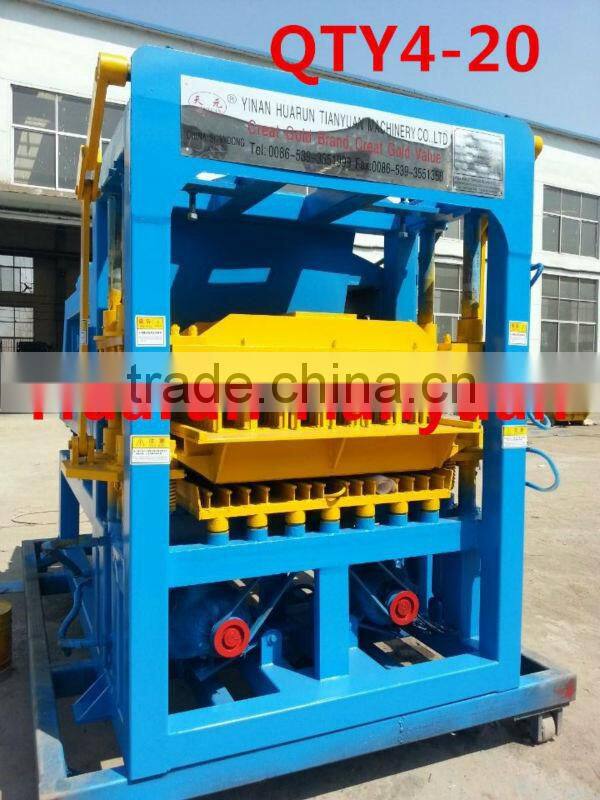

1-Molding machine picture /   house plans QT4-20C red brick making machine in india cost paving brick mould

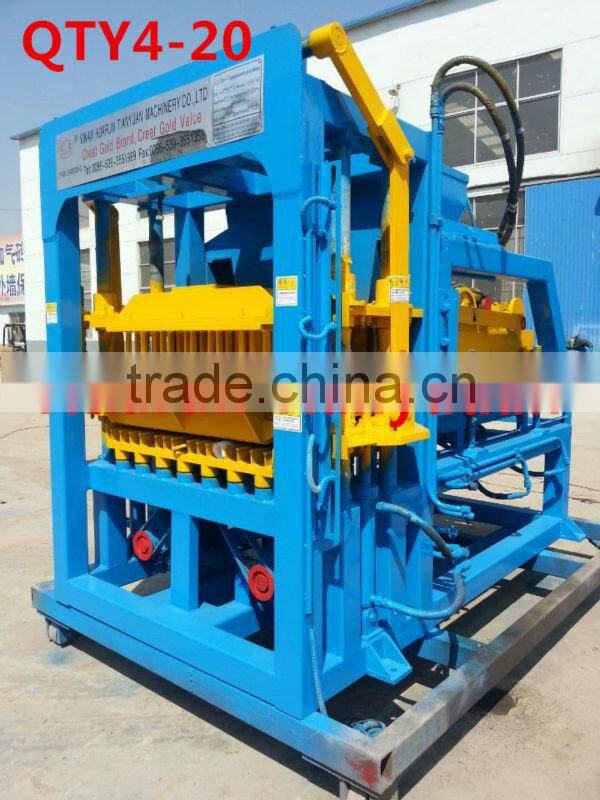

2-  QTY 4-20C cement brick making machine

3-  QTY 4-20C cement brick making machine Paremeter

1-Main machine Dimmension: 3500x1800x2800mm.

2-Rated Pressure: 60Mpa.

3-Vibration Form: Platform Vibration.

4-Vibration Frequency: 4500-5000r/min.

5-Pallet Size: 1020x570mm.

6-Molding Cycle: 12-25s.

7-Electric Power: 25.7Kw.

 8-Main Machine Weight: 4Ton.

 9-Material Consumption: 90-120Ton/day.

 10-Electric Consumption: 66Kw.h/day.

 11-Water Consumption: 5ton/day.

 12-Worker: (4-8person).

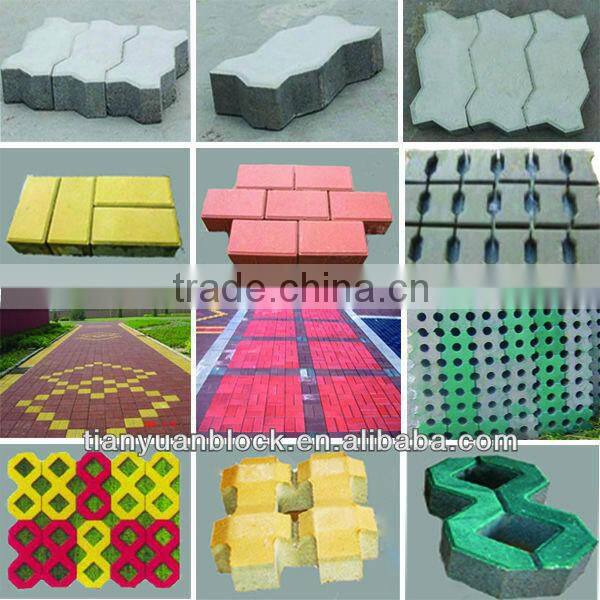

4-      QTY 4-20C cement brick making machine brick mold picture:

We could design the molds as per clients' requirements.

5-Brick machine types.

We have many types of concrete brick making machine.

The bigger types are QTY12-15, QTY10-15, QTY8-15.

The middle types are QTY6-15A, QTY6-15B, QTY6-15C, QTY4-15A, QTY4-15B, QTY4-15C, QTY4-20C, QTY3-15.

The small types are QTJ4-25, QTJ4-26C, QTJ4-26D, QTJ4-35, QTJ4-40.

Please kindly choose according to actual requirements.

Packing:

Nude in container. Or in plastic bag as per clients needs.

Shipping:

Big machines

(QTY12-15, QTY10-15, QTY8-15, QTY6-15A/B/C, QTY4-15A/B/C, QTY4-20C)

1: From mixer to stacker need one 40ft high container.

2: If need silo and batching machine too, it will need  total 3x40ft high containers.

Small machines( QTY3-15, QTJ4-25)

1: From mixer to Block receriver, need one 20ft container.

2: If with stacker, it will need one 40Gp.

Small machines(QTJ4-40 QTJ4-26C/D, QTJ4-35).

Loading size is from 8cbm to 17cbm, in LCL or 20Gp.

*Company information

1*  We are the professional manufacturer of AAC Block Plant& Concrete Brick machine & Expanded pearlite slab molding machine & EPS insert concrete hollow block machine, with high technology research develop teams, more than 15years experience in this fields, cover 80000sqm and more than 400 staffs.

2*  Our products with CE/ISO certification had been sold to more than 106 countries, and well received high acceptance.

3*  We had successfully designed the Slope protection brick machines for South-to-North water diversion project, this is the biggest water diversion project in China Government.

4*  We had successfully designed EPS(polystyrene) insert concrete hollow block machines. For chinese North-East building company.

5*  We had successfully designed thermal insulation expaned pearlite plare molding machines for outside wall heat insulation. We are top leader in Chinese markets, share more than 95% markets.

6*  We ensure our products quality and best after sales service.

We will do the best with clients' advice and susgestion.

Warmly welcome to visit our factory!

And thanks for your kind enquiry!

If need more information, please kindly contact us !

7*24hours online service.

@:Designing ,technical support and project;

@Engineer available for overseas installation and adjustment;

@All necessary documents and drawings and videos for free;

@Warranty one year after delivery.

@ 24hours Online service for all life time.

1: Delivery : 20days after advanced payment.

2: Keep the machine in dry environment.

3: After each shift, please cleaning all the equipments, and lubricating each running parts.

4: If need technical help, please call 0086-539-3551999, 24hours online service.
