Tianyuan QT4-40 making concrete block,hollow blocks machine,brick machine factory
- 120 Set / Sets per Month
- qingdao
- Hand press block making machine QTJ4-50
- QTY10-15 ecological concrete bricks making machine
- QTJ5-20 hollow bricks machine indian price
- QTJ5-20 hollow brick machine,interlocking brick machine price
- QTY10-15 hydraulic full automatic brick making machine for India
- QTJ5-20 hollow brick machine,eco brick making machine
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Concrete |
Processing: | Brick Molding Machine | Method: | Other, mechanical | Automatic: | No |
Capacity: | 2000 blocks daily | Place of Origin: | Shandong, China | Brand Name: | Tianyuan Brand |
Model Number: | QTJ4-40 | Voltage: | 220/380/400/450V | Power: | 9.7kw |
Dimension(L*W*H): | 2050x1660x1900mm | Certification: | ISO | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Contact: Catherine Xu
Mobile/whatsapp: 86-155 5091 9697
Skype:catherinexu728
Email: tianyuan28 at
Specifications
1:manual flyash brick machine making
2: exclusive design
3: ISO CE
4: Japan valves
5: 2 moulds free
QTJ4-40 manual flyash brick making machine--Tianyuan brand

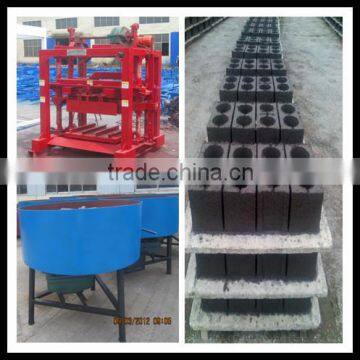

This type machine can produce all kinds of hollow blocks and solid bricks and paving bricks, only by changing different moulds
A: Production capacity of qtj 4-40
B: Technical parameters of qtj4-40
Main machine size | 1700x1700x2000mm |
| Pallet size | 850x450mm |
Main machine power | 11.2kw |
| Weight | 1.2Ton |
Forming cycle | 40seconds |
| Voltage | 380v/3phase |
C: other information of QTJ4-40 qtj4-40 :
1. Area: Workshop area: 30-50m2, all factory area 1000m2, the bigger, the better.
2. Workers : 3-4.
3. Ratio of raw material:
cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4.hollow block weight:
(390*190*190) :17KG,(190*140*190):13.5KG,(390*90*190):10KG
5. raw material consumption per day: 30-40T
6. water consumption per day: 3%-5% of raw material Weight.
D.hollow block machine guarantee:
Our hollow block making machine is of one year guarantee,during the period we could supply spare parts if they are broken.
E.hollow block machine production pressure:
Hollow blocks can reach 8-10Mpa,Solid bricks can reach 10-12Mpa,so they have a high pressure,can be used widely.
1.We are competent enterprise.
Established in 1999, Our company covers an area of 80,000 square meters and has more than 420 technical staff members, including 20 senior engineers and 40 assistant engineers.We have 6 productione lines,which have enough productivity to satisfy products needs from home and abrod.

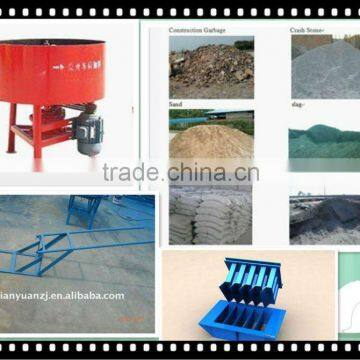

moulds and blocks

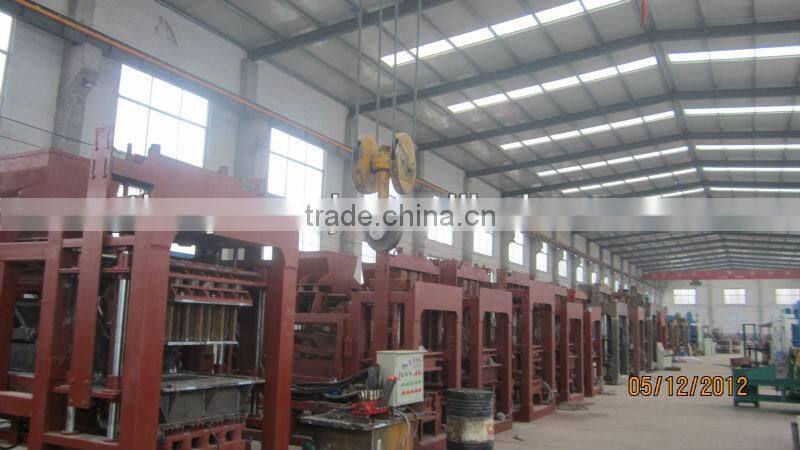

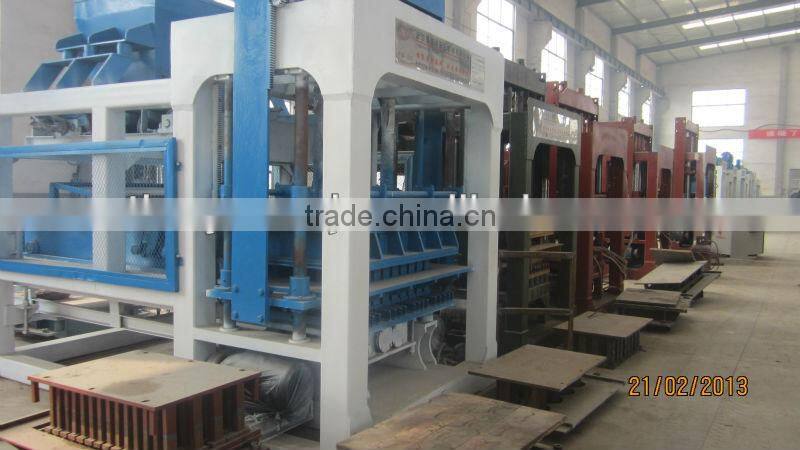

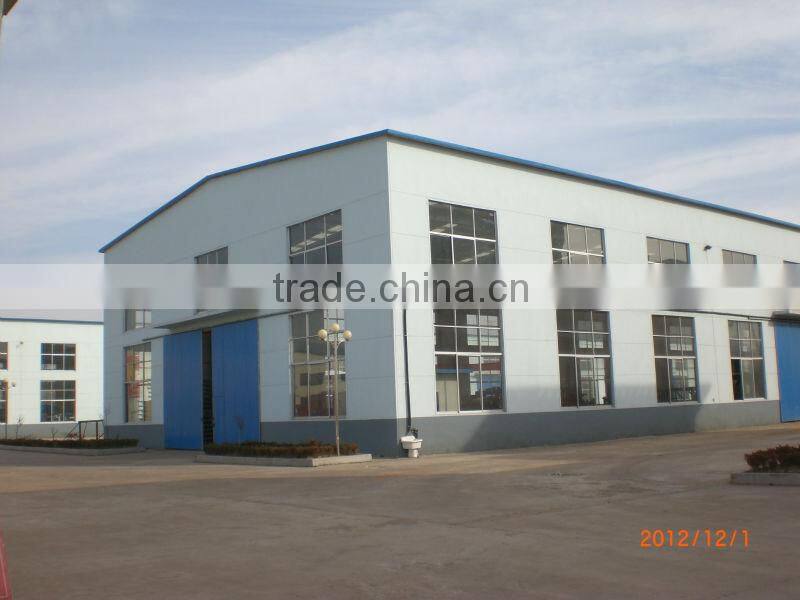

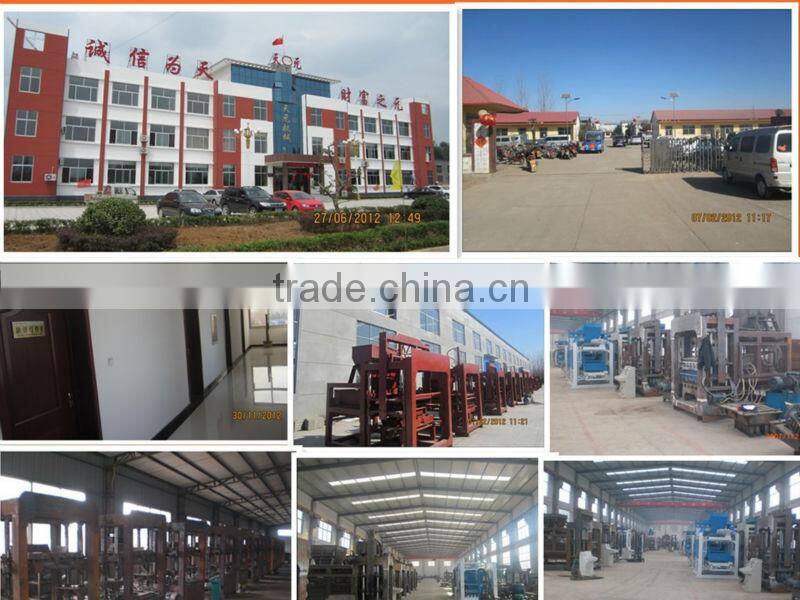

our factory and office
2.We are reliable enterprise.
3.We are trusted by the masses enterprise.
So far,we have exported block machines to over 80 countries. Whether domestic or oversea customers,they all satisfy with our products and prices.
4.We have good after sale service.
We have one year guarantee after operation,and spare parts for free with each model machine.
