On Sales Small Semi QTJ4-40 Crushed Stone Cement Block Brick Making Machine

On Sales Small Semi QTJ4-40 Crushed Stone Cement Block Brick Making Machine thumbnail-1
On Sales Small Semi QTJ4-40 Crushed Stone Cement Block Brick Making Machine thumbnail-2
On Sales Small Semi QTJ4-40 Crushed Stone Cement Block Brick Making Machine thumbnail-3
On Sales Small Semi QTJ4-40 Crushed Stone Cement Block Brick Making Machine thumbnail-4
On Sales Small Semi QTJ4-40 Crushed Stone Cement Block Brick Making Machine photo-1
On Sales Small Semi QTJ4-40 Crushed Stone Cement Block Brick Making Machine photo-2

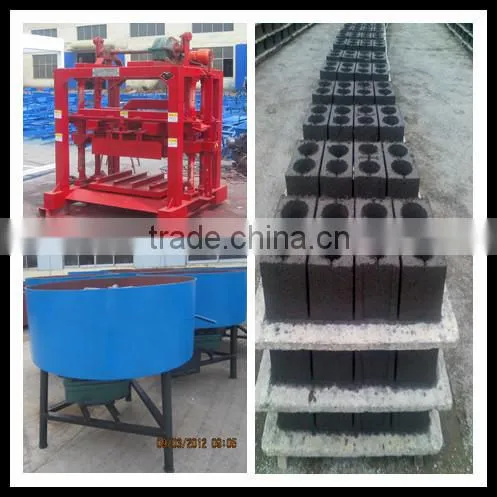

On Sales Small Semi QTJ4-40 Crushed Stone Cement Block Brick Making Machine photo-3

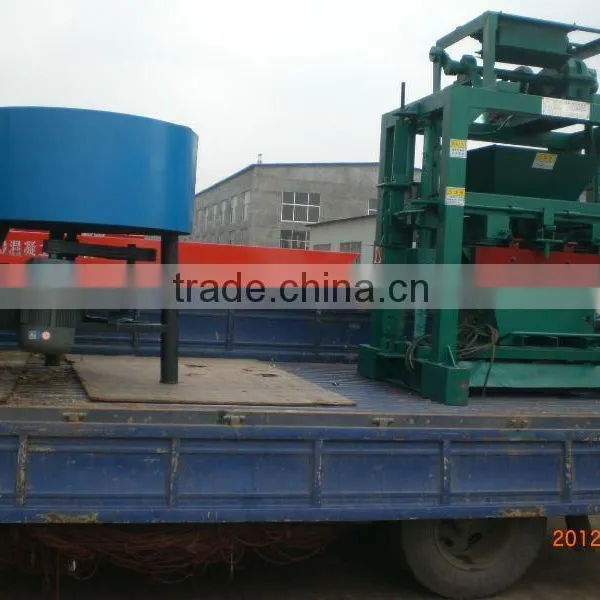

On Sales Small Semi QTJ4-40 Crushed Stone Cement Block Brick Making Machine photo-4
US$ 3,100 - 3,100 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Hollow Block Making Machine
Brick Raw Material:
Concrete
Contact Supplier Request Quote Chat Now
Yinan Huarun Tianyuan Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Hollow Block Making Machine
Brick Raw Material Concrete
Processing Brick Molding Machine
Method Other, mechanical
Automatic No
Capacity 2000pcs
Place of Origin Shandong, China
Brand Name Huarun tianyuan
Model Number QTJ4-40
Voltage industrial voltage
Power 9.3kw
Dimension(L*W*H) 1.5x1.2x2m
Certification iso, ce
Warranty 1year
After-sales Service Provided Engineers available to service machinery overseas
QTJ4-40

1-Molding machine picture,    QT4-40

On sales small semi QTJ4-40 crushed stone cement block brick making machine



  On sales small semi QTJ4-40 crushed stone cement block brick making machine

2- Advantage of molding machine,

1-  Semi automatic is more easy installment and operation.

2- The materials feeding from above hopper, easy to control the feeding quantity, it has block conveyor which welded with the molding machine.

3- It could make many kinds hollow blocks and interlocking wall bricks by changing different molds.

4- Quality Insurance:

  PLC and Motors from Siemens Brand, Switch from Siemens or CHTN.

  Molds are made of Manganese steel, long lifetime.

5- Certificate: ISO quality control, CE (MD+LVD).- European Quality.



3- Productivity of molding machine,



Brick/Block

Size

Pc/Mold

Pcs/Hour

Block

390x190x190mm

4

240

Block

390x140x190mm

5

300

Block

390x90x190mm

8

480

Solid Brick

240x115x53mm

18

1080

Solid Brick

240x115x75mm

12

720





4- Technical parameter of molding machine,

 Movable brick making machine/manual brick machine

1-Main machine Dimmension: 1600x1600x1800mm.

2-Vibration Form: Platform Vibration & Uper Vibration.

3-Vibration Frequency: 4500-5000r/min.

4-Pallet Size: 850x450mm.

5-Molding Cycle: 40-60s.

6-Electric Power: 9.7Kw.

7-Main Machine Weight: 1.2Ton.

8-Material Consumption: 30-40Ton/day.

9-Electric Consumption: 10Kw.h/day.

10-Water Consumption: 1.5ton/day.

 12-Worker: (3-4person).

5- Loading and our factory,

On sales small semi QTJ4-40 crushed stone cement block brick making machine

On sales small semi QTJ4-40 crushed stone cement block brick making machineOn sales small semi QTJ4-40 crushed stone cement block brick making machine

6- Brick molds picture

On sales small semi QTJ4-40 crushed stone cement block brick making machine

7- Brick machine types

We have many types of concrete brick making machine.

The bigger types are QTY12-15, QTY10-15, QTY8-15.

The middle types are QTY6-15A, QTY6-15B, QTY6-15C, QTY4-15A, QTY4-15B, QTY4-15C, QTY4-20C, QTY3-15.

The small types are QTJ4-25, QTJ4-26C, QTJ4-26D, QTJ4-35, QTJ4-40.

Please kindly choose according to actual requirements.



Packaging & Shipping

Packing:

Nude in container. Or in plastic bag as per clients needs.



Shipping:

Big machines

(QTY12-15, QTY10-15, QTY8-15, QTY6-15A/B/C, QTY4-15A/B/C, QTY4-20C)

1: From mixer to stacker need one 40ft high container.

2: If need silo and batching machine too, it will need  total 3x40ft high containers.

Small machines( QTY3-15, QTJ4-25)

1: From mixer to Block receriver, need one 20ft container.

2: If with stacker, it will need one 40Gp.

Small machines(QTJ4-40 QTJ4-26C/D, QTJ4-35).

Loading size is from 8cbm to 17cbm, in LCL or 20Gp.

Our Services

7*24hours online service.

@:Designing ,technical support and project;

@Engineer available for overseas installation and adjustment;

@All necessary documents and drawings and videos for free;

@Warranty one year after delivery.

@ 24hours Online service for all life time.



Company Information

*Huarun Tianyuan Factory

1*  We are the professional manufacturer of AAC Block Plant& Concrete Brick Block machine & Expanded Perlite Slab Molding Machine & EPS Insert Concrete Hllow Block Machine, & Fireproof door core making machine, with high technology research develop teams, more than 15years experience in this fields, cover 80000sqm and more than 400 staffs.

2*  Our products with CE/ISO certification had been sold to more than 106 countries, and well received high acceptance.

3*  We had successfully designed the Slope protection brick machines for South-to-North water diversion project, this is the biggest water diversion project in China Government.

 4*  We had successfully designed EPS(polystyrene) insert concrete hollow block machines. For chinese North-East building company.

 5*  We had successfully designed thermal insulation Expaned Perlite Slab molding machines for outside wall heat insulation. We are top leader in Chinese markets, share more than 95% markets.

 6*  We ensure our products quality and best after sales service.

 We will do the best with clients' advice and susgestion.

On sales small semi QTJ4-40 crushed stone cement block brick making machine

On sales small semi QTJ4-40 crushed stone cement block brick making machineOn sales small semi QTJ4-40 crushed stone cement block brick making machineOn sales small semi QTJ4-40 crushed stone cement block brick making machine

FAQ

1: Keep the machine in dry environment.

2: Before the first production, please fill hydraulic oil into the tank, keep the oil level higher than 80/180degree. And pay more attention to the oil Pressure.

3: Please check the Sensor position before each shift, and tighten them again.

4: After each shift, please cleaning all the equipments, and lubricating each running parts.

5: Please cut off the Total Power when User maintaining the machine.

6: When need to change mold, please discharge or install them slowly and keep the Up mold foot safety. Please do it as our video.

7: If need technical help, please call 0086-539-3551999, 24hours online service.

   Or please chat by Trade manager: cntianyuanzj

   Or Send Email: tianyuanzj at .

   WhatsApp: 008615006593716
