Home > Products > Expanded Perlite products making Machine > expanded Perlite fireproof insulation brick and making machines BWY-G
expanded Perlite fireproof insulation brick and making machines BWY-G
- 60 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- XIEXING XQY2000 Hydraulic pressure molding machine for sale
- XQY3-10 semi automatic cement block making machine
- XIEXING XQY3000A Hydranlic pressure block forming machine for sale
- Top quality and hot sale competitive price XQY3-10 manual block making machine
- Hot-saling and high efficiency XQY3-10 manual block making machine in india
- Hydraulic pressure curbstone interlocking block machine
Product Details
Condition: | New | Type: | Other, heat insulation wall board | Brick Raw Material: | Other, perlite |
Processing: | Other, wall board making machine | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 9600pcs/shift | Place of Origin: | Shandong, China | Brand Name: | Tianyuan |
Model Number: | BWY-G | Voltage: | industrial voltage/3phase | Power: | 15kw |
Dimension(L*W*H): | 3500x2200x3000mm | Certification: | ISO | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

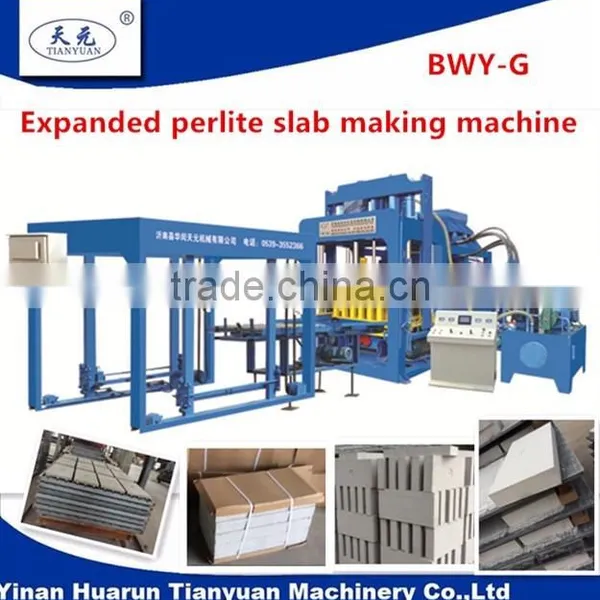

expanded Perlite fireproof insulation brick and making machines BWY-G

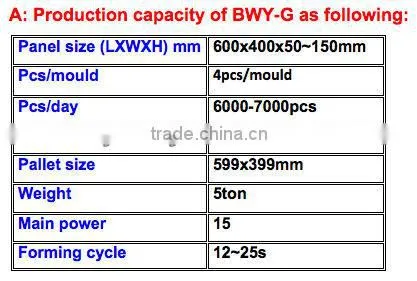

B: Technical parameters of Perlite wall board machines BWY-G:
Main machine size | 3500x2200x3000mm |
| Pallet size | 1150x850mm |
Main machine power | 52.65kw |
| Weight | 12Ton |
Rated pressure | 20Mpa |
| Mixer | 1.4x6m |
Vibration forece | 45kn |
| Belt conveyor | 8m |
Forming cycle | 12-15seconds |
| Voltage | 380v/3phase |
C:other information of BWY-G Perlite wall board machines:
1. Area: Workshop area: 150-200m2, all factory area 3000m2, the bigger, the better.
2. Workers : five or eight.
3. Ratio of raw material:cement 5%-10%, perlite 70%-80% ,others are foam agent.
4.hollow block weight:(597*397*50) :2.5KG
5. raw material consumption per day:15-24T
D.guarantee for BWY-G Perlite wall board machines
Our heat insulation board making machine is of one year guarantee,during the period we could supply spare parts if they are broken.
*Huarun Tianyuan Factory
1* We are the professional manufacturer of AAC Block Plant& Concrete Brick Block machine & Expanded Perlite Slab Molding Machine & EPS Insert Concrete Hllow Block Machine, & Fireproof door core making machine, with high technology research develop teams, more than 15years experience in this fields, cover 80000sqm and more than 400 staffs.
2* Our products with CE/ISO certification had been sold to more than 106 countries, and well received high acceptance.
3* We had successfully designed the Slope protection brick machines for South-to-North water diversion project, this is the biggest water diversion project in China Government.
4* We had successfully designed EPS(polystyrene) insert concrete hollow block machines. For chinese North-East building company.
5* We had successfully designed thermal insulation Expaned Perlite Slab molding machines for outside wall heat insulation. We are top leader in Chinese markets, share more than 95% markets.
6* We ensure our products quality and best after sales service.
We will do the best with clients' advice and susgestion.
1> Certification of ISO 9001. CE(MD+LVD)
2> We have inspections every year by National Quality Technical Supervise Department.
3> Our Quality Inspection Department make test of each machine before loading.
7*24hours online service.
@:Designing ,technical support and project;
@Engineer available for overseas installation and adjustment;
@All necessary documents and drawings and videos for free;
@Warranty one year after delivery.
@ 24hours Online service for all life time.
1: Keep the machine in dry environment.
2: Before the first production, please fill hydraulic oil into the tank, keep the oil level higher than 80/180degree. And pay more attention to the oil Pressure.
3: Please check the Sensor position before each shift, and tighten them again.
4: After each shift, please cleaning all the equipments, and lubricating each running parts.
5: Please cut off the Total Power when User maintaining the machine.
6: When need to change mold, please discharge or install them slowly and keep the Up mold foot safety. Please do it as our video.
7: If need technical help, please call 0086-539-3551999, 24hours online service.
Or please chat by Trade manager: cntianyuanzj
Or Send Email: tianyuanzj at .
WhatsApp: 008615006593716
