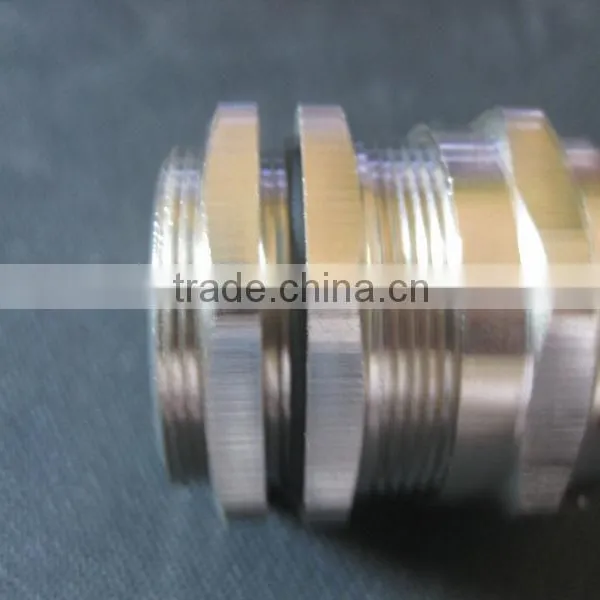

M25*1.5 EMC Metal Cable Gland

M25*1.5 EMC Metal Cable Gland thumbnail-1
M25*1.5 EMC Metal Cable Gland thumbnail-2
M25*1.5 EMC Metal Cable Gland thumbnail-3
M25*1.5 EMC Metal Cable Gland thumbnail-4
M25*1.5 EMC Metal Cable Gland thumbnail-5
M25*1.5 EMC Metal Cable Gland thumbnail-6
M25*1.5 EMC Metal Cable Gland photo-1

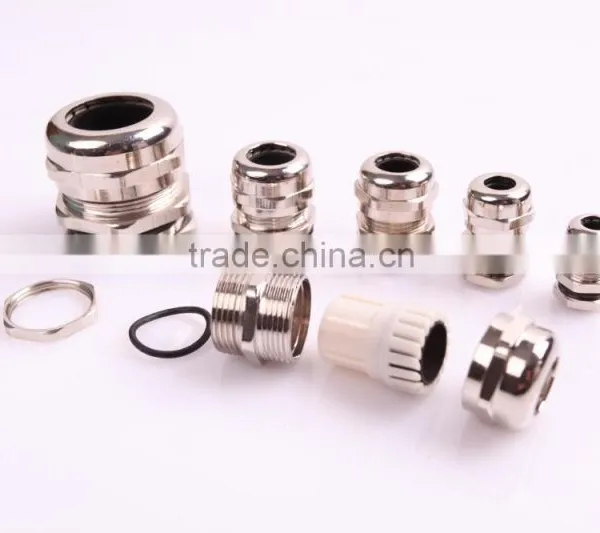

M25*1.5 EMC Metal Cable Gland photo-2
M25*1.5 EMC Metal Cable Gland photo-3

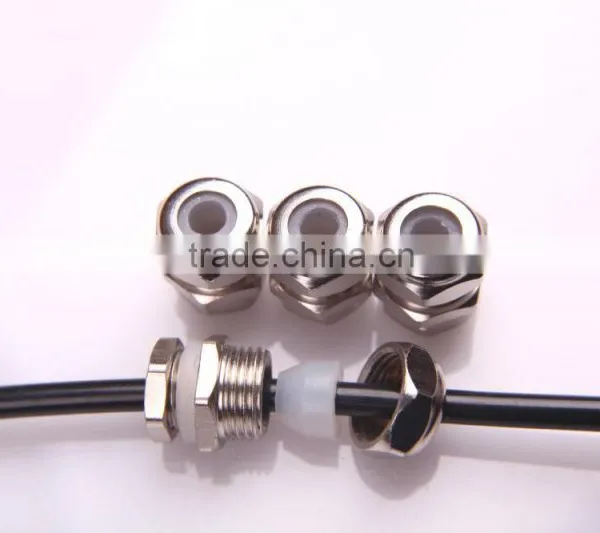

M25*1.5 EMC Metal Cable Gland photo-4
M25*1.5 EMC Metal Cable Gland photo-5

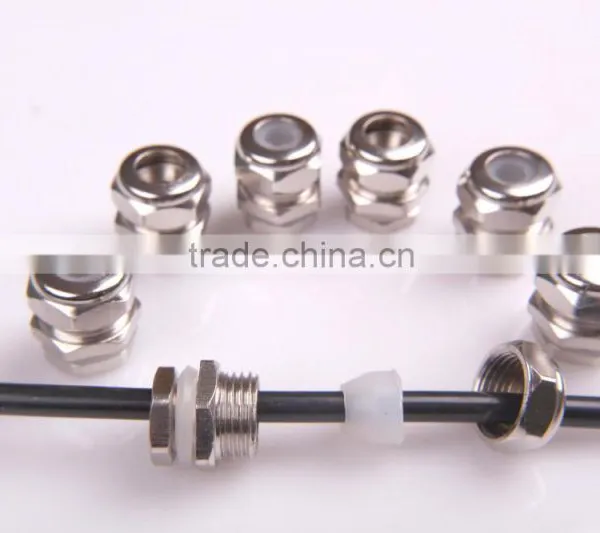

M25*1.5 EMC Metal Cable Gland photo-6
US$ 0.1 - 10 MOQ: 900 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JADE
Model Number:
M25*1.5
Contact Supplier Request Quote Chat Now
Yueqing Jade Electric Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name JADE
Model Number M25*1.5
Protection Level IP68
Size M25*1.5
Material Other, Copper

M25*1.5 terminal lugs
1.Material stainless steel

2.Claw Nickel plastic(PA)
3.Sealing NBR
4.0-Sealing ring NBR
5.Protection level IP68-10bar pressure(fixed installation and with 0-sealing ring)
6.Ambient temperature -40°C-100°C.temporary to 120°

 Character Special design of clamping claw and clamping ring,wide clamping range,high stretching resistance,wate proof,dustproof,salt resistant,resistant for weak acid,alcohol,oil,grease and gengral solvent

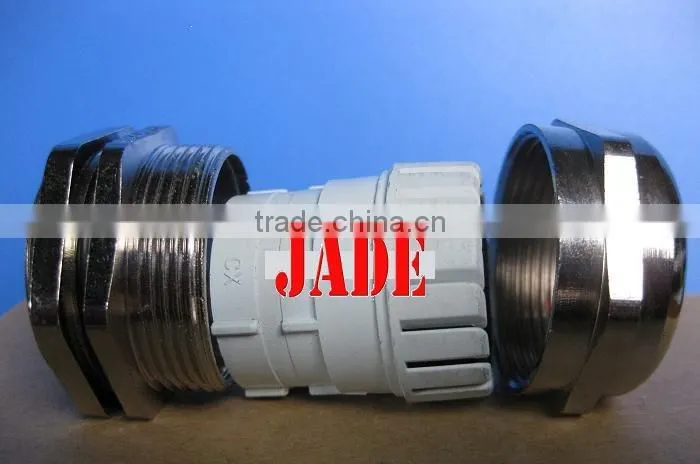

  M25*1.5 EMC metal cable gland

Specification of thread Cable Range Outer diameter of thread Mounting hole diameter Thread length Thread lenght(langthened type) Joint length Wrench diameter
M12×1.5 6.5-3 12mm 12-12.2 7mm 10mm 19mm 14mm
M14×1.5 8-4 14mm 14-14.2 7mm 10mm 19mm 18mm
M16×1.5 8-4 16mm 16-16.2 8mm 10mm 20mm 18mm
M18×1.5 10-5 18mm 18-18.2 8mm 10mm 21mm 20mm
M20×1.5 12-6 20mm 20-20.2 8mm 15mm 22mm 22mm
M22×1.5 10-14 22mm 22-22.2 8mm 15mm 23mm 24mm
M24×1.5 10-14 24mm 24-24.2 9mm 15mm 25mm 24/27mm
M25×1.5 10-14 25mm 25-25.2 9mm 15mm 25mm 24/27mm
M25×1.5 18-13 25mm 25-25.2 9mm 15mm 27mm 30/27mm
M27×1.5(2) 18-13 27mm 27-27.2 9mm 15mm 27mm 30mm
M28×1.5(2) 18-13 28mm 28-28.2 9mm 15mm 27mm 30mm
M30×1.5(2) 18-13 30mm 30-30.2 9mm 15mm 29mm 30/32mm
M32×1.5(2) 22-15 32mm 32-32.2 10mm 15mm 29mm 35mm
M33×1.5(2) 22-15 33mm 33-33.2 10mm 15mm 29mm 35mm
M36×1.5(2) 25-18 36mm 36-36.2 10mm 15mm 31mm 40mm
M37×1.5(2) 25-18 37mm 37-37.2 10mm 15mm 31mm 40mm
M40×1.5(2) 25-18 40mm 40-40.2 11mm 15mm 31mm 40/45mm
M40×1.5(2) 30-22 40mm 40-40.2 11mm 15mm 35mm 45mm
M42×1.5(2) 30-22 42mm 42-42.2 11mm 15mm 35mm 45mm
M47×1.5(2) 33-25 47mm 47-47.2 11mm 15mm 37mm 50mm
M48×1.5(2) 33-25 48mm 48-48.2 11mm 15mm 37mm 50mm
M50×1.5(2) 38-32 50mm 50-50.2 12mm 15mm 37mm 57/55mm
M54×1.5(2) 38-32 54mm 54-54.2 12mm 15mm 38mm 57mm
M60×1.5(2) 44-37 60mm 60-60.2 13mm 15mm 38mm 65mm
M63×1.5(2) 44-37 63mm 63-63.2 13mm 15mm 38mm 65mm
M64×1.5(2) 44-37 64mm 64-64.2 13mm 15mm 38mm 65/68mm
M72×1.5 52-42 72mm 72-72.2 15mm 20mm 42mm 77mm
M75×1.5 52-42 75mm 75-75.2 15mm 20mm 42mm 77mm
M80×1.5 62-55 80mm 80-80.2 15mm 20mm 45mm 90mm
M88×1.5 70-65 88mm 88-88.2 15mm 20mm 45mm 94mm
M100×1.5 84-78 100mm 100-100.2 15mm 20mm

.

 M25*1.5 EMC metal cable gland
