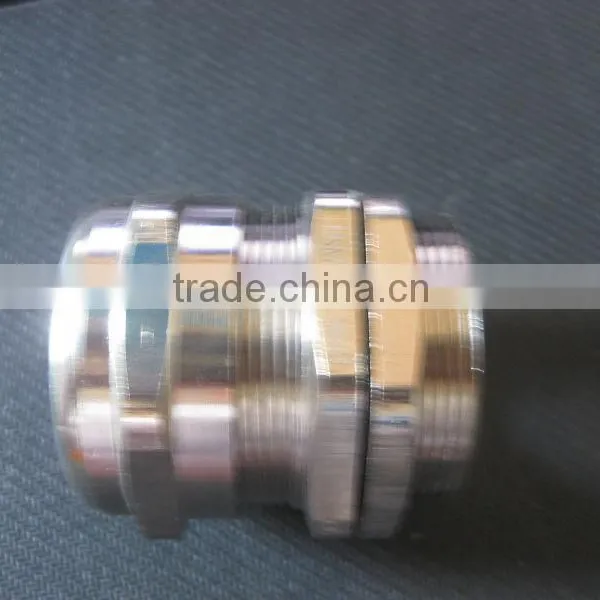

SS316 Steel Cable Gland

Name: SS316 Steel Cable Gland
Brand: jade
SKU: 126561361
Availability: InStock

US$ 1 - 20 MOQ: 900 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

jade

Model Number:

M32*1.5

Yueqing Jade Electric Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name jade

Model Number M32*1.5

Protection Level IP68

Size M16*1.5

Material Other, SS316

Specifications

SS316 stainless steel cable gland,
1.Materials:SS316
2.Suitable temperature:-40C+150C
3.Protective performa:IP68

SS316,SS304 Stainless steel cable gland, metal gland.

SIZE: M12*1.5,M16*1.5,M20*1.5,M25*1.5,M25*1.5,M32*1.5,M40*1.5.......

MATERIAL: stainless steel

NUT: M16*1.5,M20*1.5,,,,.....

Materials:SS316Suitable temperature:-40C+150C
Flame retardant: DIN NF BS TB

Protective performance: IP68

Specification of thread	Cable Range	Outer diameter of thread	Mounting hole diameter	Thread length	Thread lenght(langthened type)	Joint length	Wrench diameter
M12×1.5	6.5-3	12mm	12-12.2	7mm	10mm	19mm	14mm
M14×1.5	8-4	14mm	14-14.2	7mm	10mm	19mm	18mm
M16×1.5	8-4	16mm	16-16.2	8mm	10mm	20mm	18mm
M18×1.5	10-5	18mm	18-18.2	8mm	10mm	21mm	20mm
M20×1.5	12-6	20mm	20-20.2	8mm	15mm	22mm	22mm
M22×1.5	10-14	22mm	22-22.2	8mm	15mm	23mm	24mm
M24×1.5	10-14	24mm	24-24.2	9mm	15mm	25mm	24/27mm
M25×1.5	10-14	25mm	25-25.2	9mm	15mm	25mm	24/27mm
M25×1.5	18-13	25mm	25-25.2	9mm	15mm	27mm	30/27mm
M27×1.5(2)	18-13	27mm	27-27.2	9mm	15mm	27mm	30mm
M28×1.5(2)	18-13	28mm	28-28.2	9mm	15mm	27mm	30mm
M30×1.5(2)	18-13	30mm	30-30.2	9mm	15mm	29mm	30/32mm
M32×1.5(2)	22-15	32mm	32-32.2	10mm	15mm	29mm	35mm
M33×1.5(2)	22-15	33mm	33-33.2	10mm	15mm	29mm	35mm
M36×1.5(2)	25-18	36mm	36-36.2	10mm	15mm	31mm	40mm
M37×1.5(2)	25-18	37mm	37-37.2	10mm	15mm	31mm	40mm
M40×1.5(2)	25-18	40mm	40-40.2	11mm	15mm	31mm	40/45mm
M40×1.5(2)	30-22	40mm	40-40.2	11mm	15mm	35mm	45mm
M42×1.5(2)	30-22	42mm	42-42.2	11mm	15mm	35mm	45mm
M47×1.5(2)	33-25	47mm	47-47.2	11mm	15mm	37mm	50mm
M48×1.5(2)	33-25	48mm	48-48.2	11mm	15mm	37mm	50mm
M50×1.5(2)	38-32	50mm	50-50.2	12mm	15mm	37mm	57/55mm
M54×1.5(2)	38-32	54mm	54-54.2	12mm	15mm	38mm	57mm
M60×1.5(2)	44-37	60mm	60-60.2	13mm	15mm	38mm	65mm
M63×1.5(2)	44-37	63mm	63-63.2	13mm	15mm	38mm	65mm
M64×1.5(2)	44-37	64mm	64-64.2	13mm	15mm	38mm	65/68mm
M72×1.5	52-42	72mm	72-72.2	15mm	20mm	42mm	77mm
M75×1.5	52-42	75mm	75-75.2	15mm	20mm	42mm	77mm
M80×1.5	62-55	80mm	80-80.2	15mm	20mm	45mm	90mm
M88×1.5	70-65	88mm	88-88.2	15mm	20mm	45mm	94mm
M100×1.5	84-78	100mm	100-100.2	15mm	20mm	45mm	110mm
