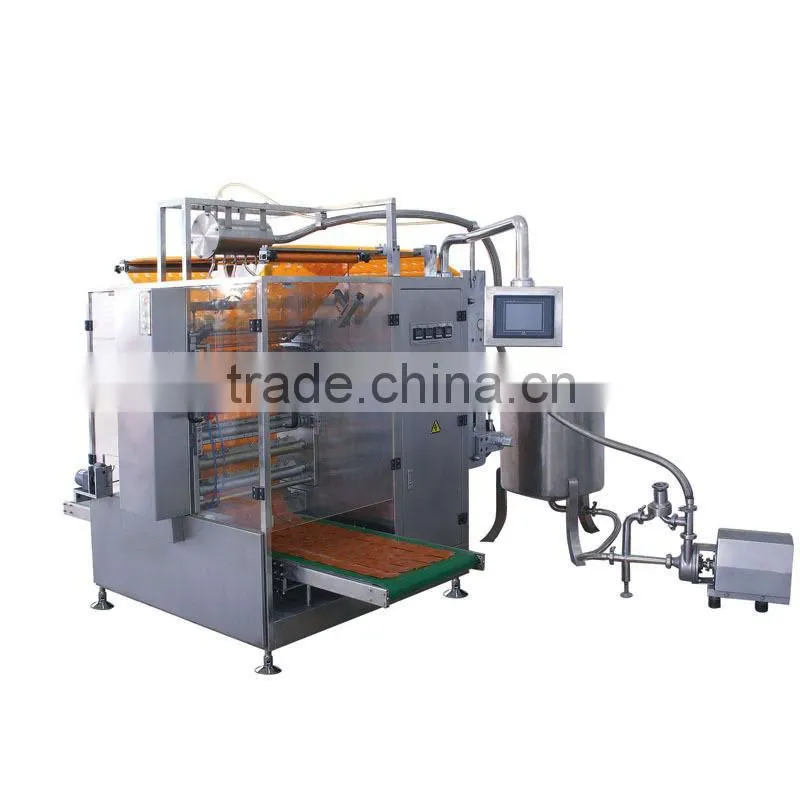

Detergent Tomato Paste Sachet Honey Stick Filling
Butter Packing Machine
Features:
1. Advanced performance, high power, low noise, compact structure, Operate steadily , easy to
maintain, and has a long life span.
2. Adopt five shaft servo motor in step driver, man-machine interface touch adjustment,controlled
by PLC, it is precise in automatic in step positioning.
3. A high degree of automatic.Machine can finish packing at one time from longitudinal sealing,
longitudinal cutting, transverse sealing, filling, embossing,notch cutting, cutting Dotted line,
transverse cuttingto outputting finished sachets.
4. High precision whole rolling type heat sealing roller are adopted as sealing mould. 4-side sealing, multi-line sachets form. Because liquid material will easily leak in sealing side, an extra
smooth unstriated sealing roller is setup to ensure sealing sides compact and tightly. With high
packing speed, smooth bag shape, delicate and beautiful, packaging with high efficiency.
5. Fast and convenient to adjust, it can step-less adjust pouch length without changing the mould.And can adjust the functions as longitudinal sealing, transverse sealing, filling, embossing,
Dotted line cutting and transverse cutting through man-machine interface.
6. Accurate in measurement, According to liquid material, specifically designed of centrifugal
liquid pump for filling, measuring control adopt high precise electro-magnetic valve, each valve
match with voltage regulator, each line's dosage can be adjusted easily and accurately.
7. A PLC is used for automatic control, Each actuating mechanism adopt servo motor to driver,
it is precise in automatic in step positioning, reliable performance, convenient to operate, and
fully automatic.
8. Photoelectric tracking system is adopted to ensure correct printing and with automatic counting
function.
9. Adaptability of the package film. the sealing temperature of machine is with automatic control,
and with high control accuracy (± 1C °). Suitable for most complex film packing film in home
and abroad, as PET/AL/PE,PET/PE,NY/AL/PE,NY/PE and so on.
10. Extra function set up, for example, sachet cutting can can choose dotted line knife, flat cutting
knife or abnormal shape knife. And can choose different kinds of alarm requirements and so on.
Main technological parameter:
four-side seal |
|
Bag length: |
50-300mm (adjustable)
|
Bag width: |
35-105mm |
Packing dosage: |
5-100ml |
Packaging speed: |
30-60times/min (depend on pouch size and material) |
Applicable film: |
PET/AL/PE, PET/PE, NY/PE, NY/AL/PE |
Max film width: |
900mm |
Mac film diameter: |
Φ300mm |
Film core diameter: |
Φ75mm |
Power voltage: |
380V/ 50HZ |
Total power: |
12KW |
G.W. |
1500Kg |
Package size: |
1650*1500*2200mm(L*W*H) |

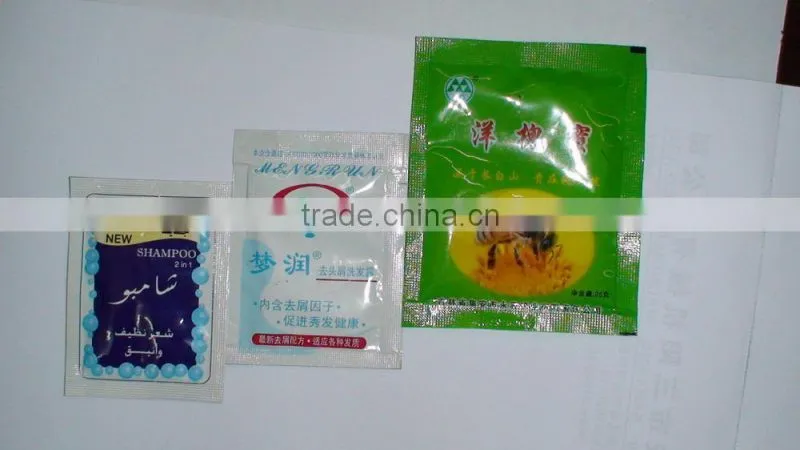

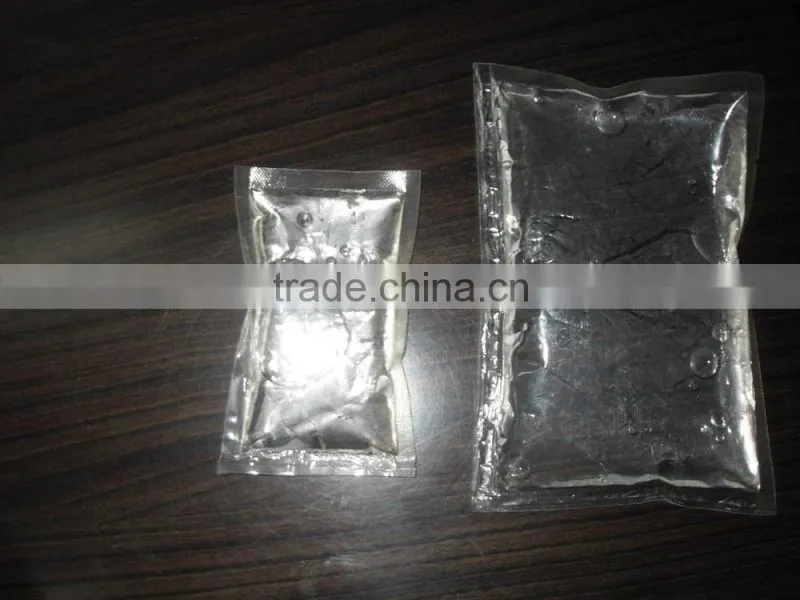

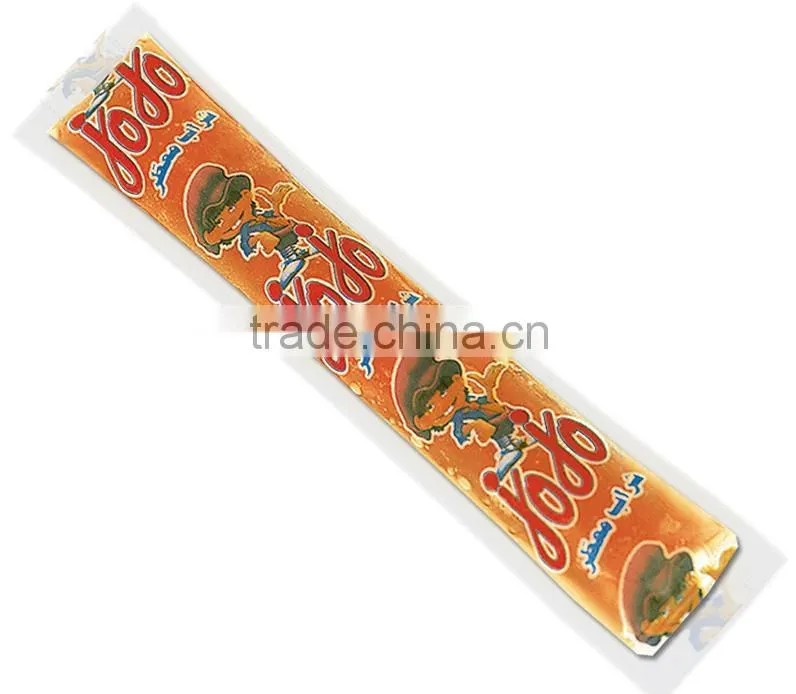

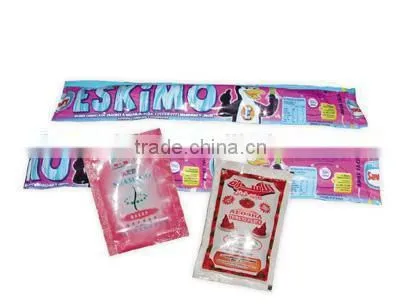

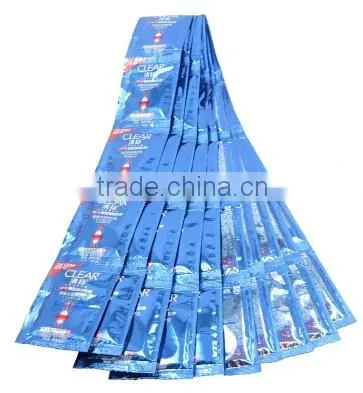

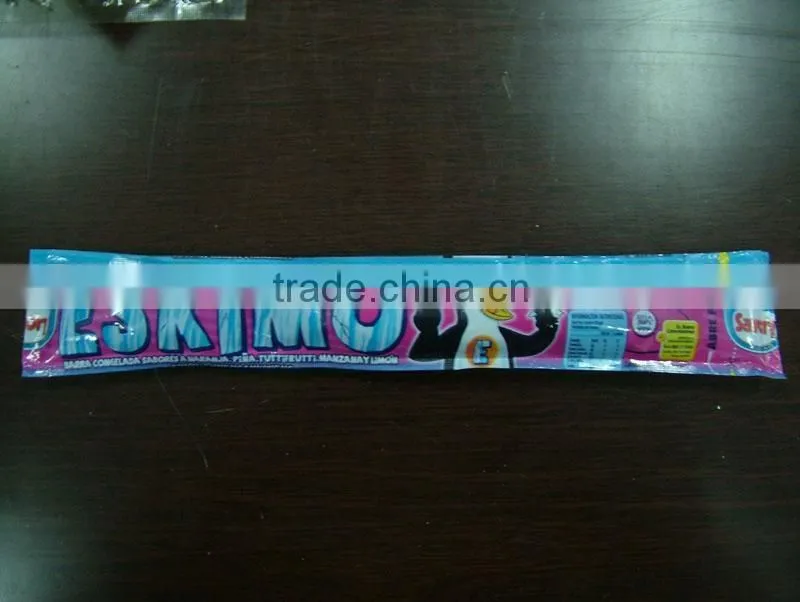

Suitable for packing liquid material in the pharmacy(medicine), food, daily chemical and other
industries,automatic packing into sachet with Measurement requirement, such as ice lolly, soy
sauce, vinegar, wine, medicine (water), chemical agent (water) and much more.
1. Any questions in technical can contact us by e-mail and deal with it.
2. Spare parts replacement and repair service.
3. Engineer can be distributed into overseas required.

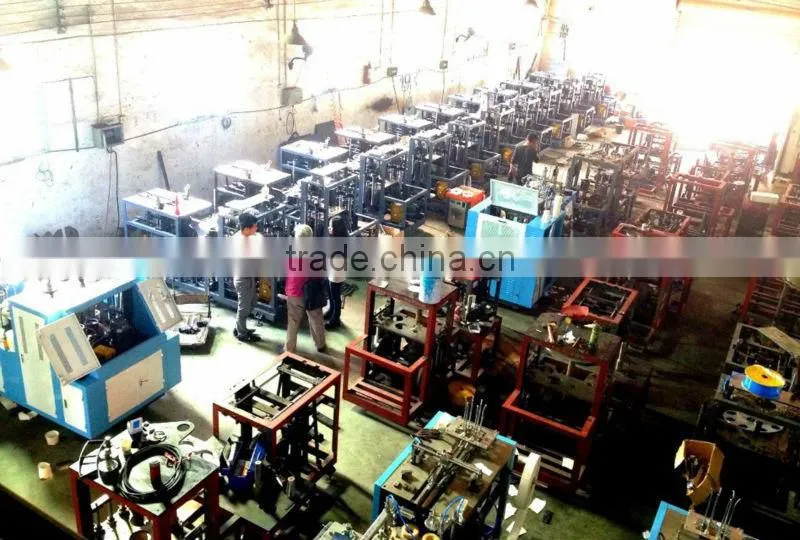

Wenzhou Jienuo Machinery & Technology Co., Ltd. is a manufacturing and trading company
which is mainly engaged in development, production and related services for pharmaceutical
industry, food industry, cosmetics industry, stationery industry, etc.
We have been the manufacturer of packing machines for 10 years. If you are interested in our automatic packing machines, please contact me without hesitation. we will give you the best
price.
Company: Wenzhou Wenzhou Jienuo Machinery & Technology Co. Ltd
Tel : 0577-66856266
Mobile/Whatsapp:86-18305876992
Fax: 0577-66856268
QQ: 2592339509
Skype:linyawei16
Q1.What's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usuallyoffer fob ningbo price .but we also accept other way like L/C , wetern union ,and do CFR&CIF
etc.
Q2.Does it easy to operate and what can i do if it doesn't work?
First ,our machine is stable and easy to operate by one man ,what you do is just learn some
basic thing like how to operate PLC .And we will sent you manual and video ,we suggest
you to come to visit ourfactory to learn more thing by yourself , and if there is something goes
wrong, you can call us ,video-chat ,email us .And we will give solutions within 36 hrs .Our
engineer also can be distributed to overseas as you required.
We provide you with sincerely service, if you have interest,contact us NOW!!!
