tungsten cemented carbide Eccentric wedge buttons for tricone bit
- 1 Ton / Tons per Month
- Qingdao Jinan
- T/T D/P D/A Credit Card
Product Details
| Place of Origin: | Shandong, China | Brand Name: | XINYU | Model Number: | Customized on request |
| Condition: | New |
Product Description
tungsten cemented carbide Eccentric wedge buttons for tricone bit

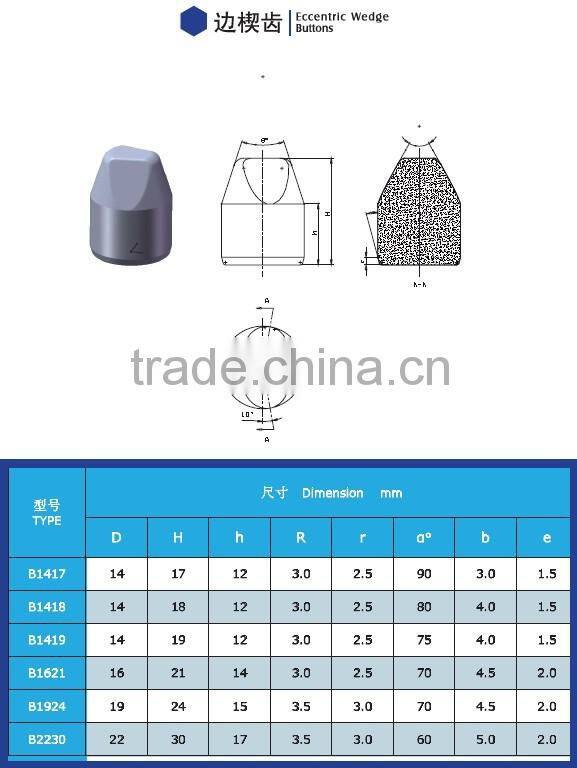

Products Dimension
Eccentric wedge buttons
Material: YG6 YG6C YG8 YG8C YG11 YG11C YG13 YG13C YG16.
Size: as the customer drawing and request.
Lead time: 7-15 days after payment 30% deposit.
Shipping terms: EXW FOB CIF and so on.
After sale service: 24 hours e-mail, mobile, skype on line.
Grades,Properties And Applicatins Recommended
Grades | Density(g/cm³) | Hardness(HRA) | T·R·S(N/mm2) | Application |
YG4C | 15.00 | 89.5 | 1800 | Mainly used as small buttons for percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG6 | 14.80 | 89.5 | 1700 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG8 | 14.70 | 88.5 | 2300 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG8C | 14.70 | 88.0 | 2300 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG9C | 14.50 | 87.0 | 2400 | Mainly used as the inserts and buttons for rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
YG11C | 14.40 | 86.5 | 2450 | Mainly for the inserts and buttons of heavy rock drill bits and rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
YG13C | 14.30 | 86.0 | 2500 | Mainly used as the inserts and buttons of tricone bits rotary-percussive bits and heavy rock drill bits to cut medium-hard and hard formations. |
YG15 | 14.00 | 86.5 | 2500 | It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations. |
YG16 | 14.10-14.30 | 87.5 | 2400 | It is mainly used for making cemented carbide substrate tips to be used in PDC cutters for excavating coal and oil field PDC bits. |
YG20 | 13.40-13.70 | 85.0 | 2254 | Mainly for the stamping dies used in the conditions of heavy impact load and large strees. |
Advantage
1.Free sample
2.Direct factory produce and sale
3.All kinds of grades are available
4.Custom made available
5.Precision processing and strict product inspection
6.Advanced Equipment and professional technicians
7.Gurantee the bulk quality are in accordance with the samples
8.ISO 9001-2008 Quality Control System
9.100% virgin tungsten carbide powder
10.High speed cutting, wears well & long service life
11.High hardness, high strength, wear resistance
12.12years professional experience
