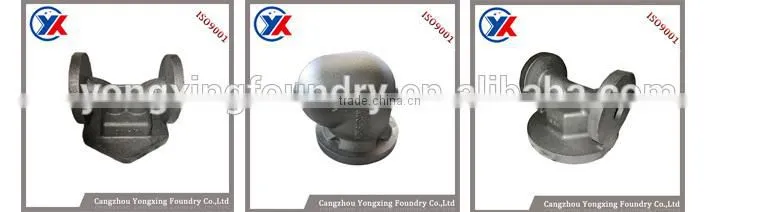

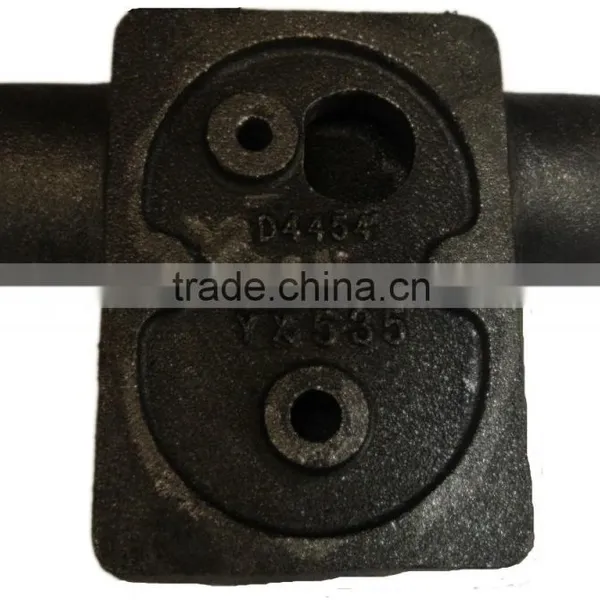

Help CenterCustomized Ductile Iron Cast Casting Machine Parts , Cast Iron Spare Parts,water Valve Body Made in China
Related Products
-
China OEM Precision Sand Casting Iron Cast Water Valve Cover Casting ,valve Body CastingUS$ 1,300 - 2,200MOQ: 8 Tons -
Hot Sale Low Price China OEM Iron Cast Barrel of Pump, Pump Casing Made in ChinaUS$ 1,300 - 2,500MOQ: 10 Tons
-
Gold Supplier Manufacture Grey Iron and Nodular Iron Cast Casting Barrel of PumpUS$ 1,300 - 2,500MOQ: 10 Tons
-
OEM Hot Sale Valve Parts, Iron Casting Valve Body, Iron Cast ValveUS$ 1,300 - 2,500MOQ: 10 Tons
-
High Quality Hot Sale Valve Parts, New Valve Parts Made in ChinaUS$ 1,300 - 2,200MOQ: 5 Tons

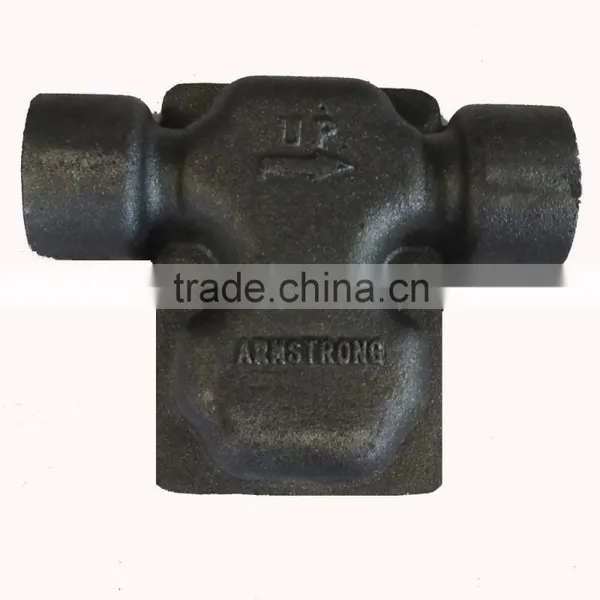

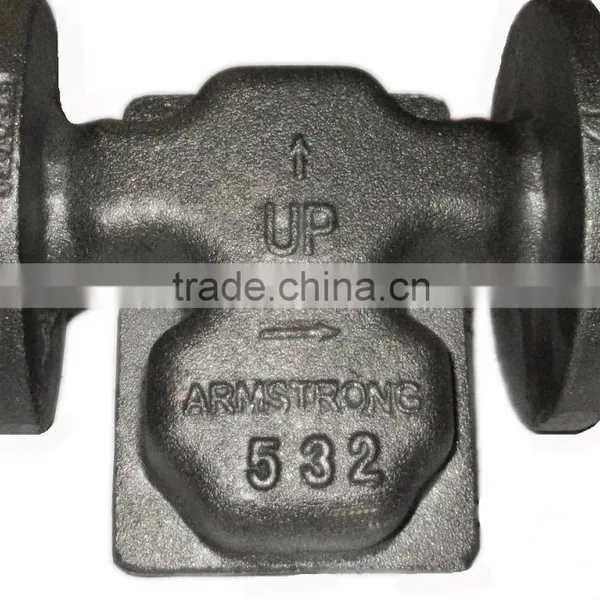

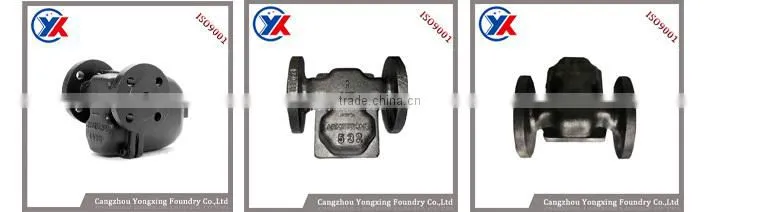

Float & Themostatic Steam Traps
AIC SERIES FLOAT & THERMOSTATIC STEAM TRAPS
For pressure to 465 psig (32 bar) Capacities to 60,000 lb/hr (27 500 kg/hr) Material:cast iron
Armstrong AIC Series F&T traps are designed for industrial service from 0 to 465 psig (32 bar). They featrue all the benefits of Armstrong F&T traps, such as operation against back pressure, continuous drainage, high-capcity venting of air and CO2, long life and dependable service and enjoys the convenience of in-line connections. Armstrong AIC Series are available with screwed connections (NPT and BSPT) of DIN flanged (DIN standard face-to-face dimension).
Armstrong AIC Series F&T traps are the perfect solution for applications where there is a need to vent air and non-condensable gases quickly at start-up.
JD/KD SERIES FLOAT & THERMOSTATIC STEAM TRAPS
For pressure to 2.1MPa Capacities to 64400 kg/hr Material: ductile cast iron
The simple, yet rugged, ductile iron construction of the JD & KD Series Ultra-Capacity F&T steam traps offer long, trouble-free service. All floats, valves and seats and lever mechanisms are constructed of stainless steel.
The integral thermostatic air vent is a balanced-pressure phosphor-bronze bellows caged in stainless steel. It is designed especially for demanding industrial applications where highly efficient, uninterrupted service is essential. This balanced-pressure type of air vent will respond to the pressure-temperature curve of steam at any pressure from zero to 300 psig (21 bar). Thus-up to 300 psig (21 bar)-air is vented at slightly below steam temperature.
L/M SERIES FLOAT & THERMOSTATIC STEAM TRAPS
For pressures to 250 psig (17 bar Capacities to 208,000 lb/hr (94348 kg/hr) Material:ductile cast iron
The simple, yet rugged, cast iron construction of the L & M Series Ultra-Capacity F&T steam traps offer long, trouble-free service. All floats, valves and seats, and lever mechanisms are constructed of stainless steel.
The integral thermostatic air vent is a balanced-pressure phosphor-bronze bellows caged in stainless steel. It is designed especially for demanding industrial applications where highly efficient, uninterrupted service is essential. This balanced-pressure type of air vent will respond to the pressure-temperature curve of steam at any pressure from zero to 250 psig (17 bar). Thus-up to 250 psig (17 bar)-air is vented at slightly below steam temperature.
ICS SERIES FLOAT & THERMOSTATIC STEAM TRAPS
For pressures to 645 psig Capacities to 60,000 lb/hr (27215kg/hr) Material:ductile cast iron
Armstrong ICS Series float and thermostatic trap is suitable for differential pressure range is 0 to 3.2 MPa (465 psig) applications. ICS series of steel float and thermostatic steam trap design is simple, compact, ensure long-term, trouble-free operation.Even when the steam pressure from the maximum into the vacuum,ICS can still float and thermostatic steam traps discharge condensate continuously and emit large amounts of air and CO2.ICS connection in the form of Armstrong float and thermostatic steam trap flanged connections (150RF, 300RF, PN40RF) socket weld and threaded connection.
There connection diameter DN15 (1/2 ''), DN20 (3/4 ''), DN25 (1 ''), DN40 (1-1 / 2 '') and DN50 (2 '');
Maximum operating pressure range: 0.5 MPa (75 psig) to 3.2 MPa (465 psig)
Our Qualification
Technology
Casting simulation software can simulate the filling flow of the casting process, solidification process, temperature field and through this to predict casting defect, also can make evaluation on the involved parameters of casting process and process plan, so as to make corresponding process improvement, improve the yield and shorten the design cycle greatly. To reach the rapid response to customer's requirement truly.
Production Flow
Our Equipment
Packaging&Shipping
1. Only use wooden pallet + wrap film + packing tape
2. Only use wooden ( products in bulk) + packing tape
3. wooden pallet + carton + plastic bag for each product + packing tape
4.The wooden box + carton + each product packaged with plastic bags
5. wooden cage + wrap film + packing tape
6. wooden cage + carton + plastic bag for each product + packing tape
Why Choose Us?
1. Gold supplier on alibaba.
2. Founded in 1985, has 30 years experience in casting.
3. Advanced management, high quality products with competitive factory price!
4. What material customer needs what material we will produce, produce the casting as per customer's requirement.
5.Good service, the customization and trial order are both accepted.
Please do not hesitate to inform us your requirement or any special idea. We work hard for win-win.
FAQ
1. Are you a factory or trading company?
We are a factory with designing, manufacturing, marketing and exporting together with our office.
2. How can I get product information, which I want?
You may visit https://img13.fr-trading.com/productlist.html and tell us item No. of the products,which you want.And then, we will offer you more information about these
products.You may offer us your product requests at first, and then, we will recommend some existing products or talk with you how to develop your products.
3. Can you stamp the customers' own logo and their own package?
Yes, of course acceptable.
4. What type of materials does your factory use for?
We offer all kinds of cast iron parts, including gray cast iron: HT300,HT250,HT200,HT150; nodular cast iron:QT400-18,QT400-15,QT500-7,QT600-5,QT700-2,QT450-12,QT600-3 etc.
5. How we make the parts comply to customer's requirement?
Using our coordinate measuring machine, tensile testing machine, spectrograph and other testing equipments to make all the goods qulified.
