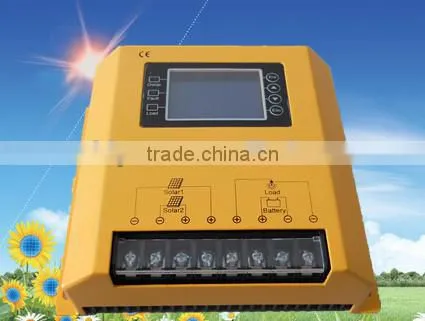

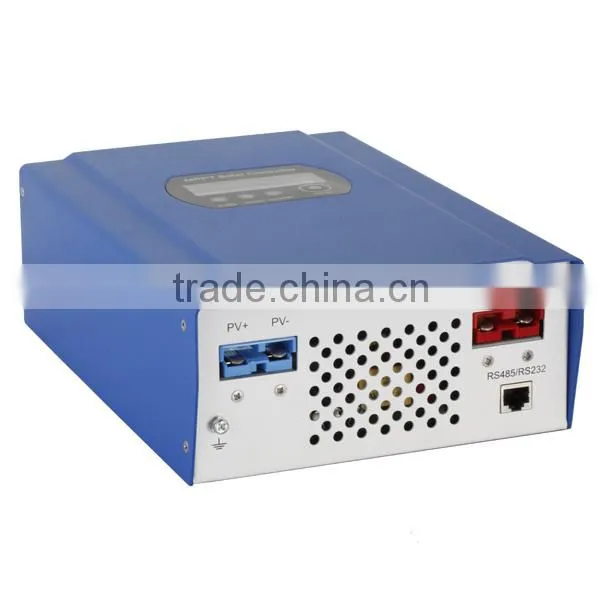

2016 Best 12V 24V 50A PWM Solar Power Controller/Solar Controller
System voltage |
12VDC/ 24VDC |
Max. battery current |
10A |
Battery voltage range |
9-36V |
Input voltage Max. |
|
100VDC Tracer-1210 | |
| |
|
Rated input power
|
120W 12V system |
240W 24V system |
Battery charging
Battery charging setting |
Parameter setting |
Charging mode |
Four stages |
Temp. compensation |
-5mV/°C/2V(25°C) |
Temp. compensation range |
-30°C-+60°C |
Battery voltage setting(25°C)
Charging Parameter | |||
Battery charging setting |
Gel |
Sealed |
Flooded |
High Volt Disconnect |
16V; x2/24V |
16V; x2/24V |
16V; x2/24V |
Charging limits voltage |
15.5V; x2/24V |
15.5V; x2/24V |
15.5V; x2/24V |
Equalization voltage |
—— |
14.6V; x2/24V |
14.8V; x2/24V |
Boost voltage |
14.2V; x2/24V |
14.4V; x2/24V |
14.6V; x2/24V |
Float voltage |
13.8V; x2/24V |
13.8V; x2/24V |
13.8V; x2/24V |
Boost return voltage |
13.2V; x2/24V |
13.2V; x2/24V |
13.2V; x2/24V |
Low voltage reconnect |
12.6V; x2/24V |
12.6V; x2/24V |
12.6V; x2/24V |
Under voltage recover |
12.2V; x2/24V |
12.2V; x2/24V |
12.2V; x2/24V |
Under voltage warning |
12V; x2/24V |
12V; x2/24V |
12V; x2/24V |
Low voltage disconnect |
11.1V; x2/24V |
11.1V; x2/24V |
11.1V; x2/24V |
Boost duration |
2hours |
2hours |
2hours |
Equalize duration |
—— |
2hours |
2hours |
Electronic protection functions:
1.Electronic protection functions
2.Overcharge protection
3.Deep discharge protection
4.Automatic electronic fuse
5.Battery overcharge shutdown
