Flexible Solar Panel

Specifications

1.Flexible Amorphous solar panel/PV Panel
2.Lightweight and flexible

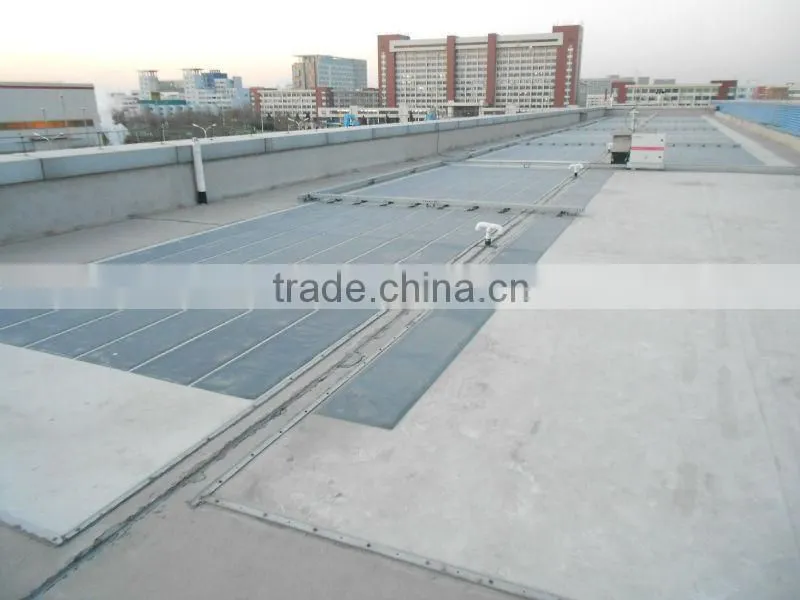

3.Roof-friendly solution requiring no penetrations

  Chinese High Efficiency Flexible Amorphous Solar Panel


Flexible a-Si solar Panel
Model	PVL-33	PVL-72	PVL-136	PVL-144
Cell Number	5	11	22	22
Maximum Output (Wp)	33	72	136	144
Open Circuit Voltage(Voc)	10.5	23.1	46.2	46.2
Short Circuit Current(Isc)	5.3	5.3	5.1	5.3
Maximum Output Voltage(Vmpp)	7.5	16.5	33	33
Maximum Output Current(Impp)	4.36	4.36	4.1	4.36
Tolerance	±5%
Maximum System Voltage	DC600V
Standard testing condition	Irradiance 1000W/m²,AM1.5,module temperature 25°C
Temperature Characteristics
Temperature Coefficient of Pmax	-0.21%/°C
Temperature Coefficient of Voc	-0.38%/°C
Temperature Cofficient of Isc	-0.10%/°C
Temperature Cofficient of Imp	0.10%/°C
Temperature Cofficient of Vmp	-0.31%/°C
Mechanical Characteristics
Length * Width(mm)	1410 * 394	2849 * 394	5486 * 394	5486 * 394
Thickness(mm)(Without Junction Box)	4
Thickness(mm)(With Junction Box)	16
Net Weight(KG)	1.85	3.9	7.7	7.7

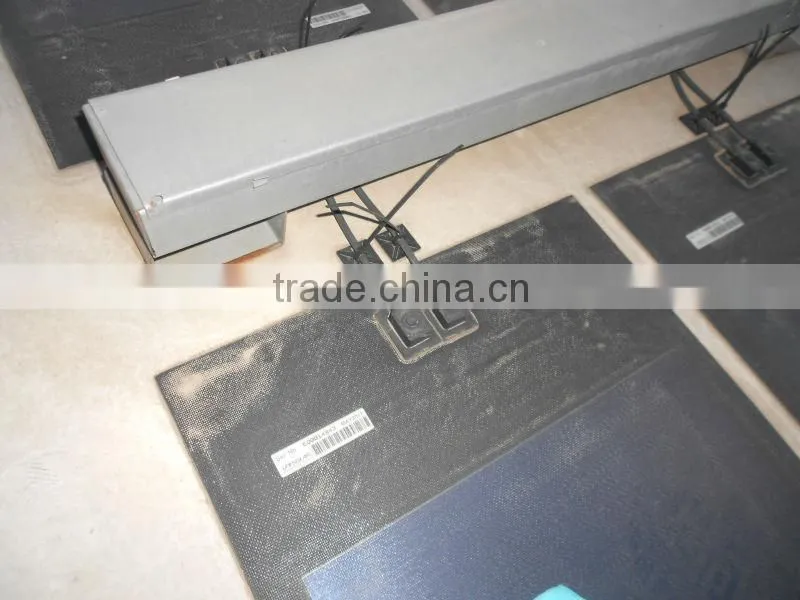

Junction Box	IP66 terminal housing with integrated strain relief
Connectors	Polarized, weatherproof latching connectors with 4mm²halogen-free cables
Bypass Diodes	Connected across every solar cell
Front Surface	Durable ETFE high light-transmissive polymer
Adhesive	Peel and stick pressure sensitive adhesive adhesive (PSA)
Cell Type	Multi-junction amophous silicon solar cells 356mm x 239mm



  Certification and Warranty
UL 1703 Listed by underwriters Laboratories for electrical and fire safety (Class A Max. Slope 2812, Class B Max. Slope 3/12, Class C Unlimited Slope fire ratings) for use in systems up to 600VDC



Key Attributes:
·Lightweight and flexible
·Roof-friendly solution requiring no penetrations

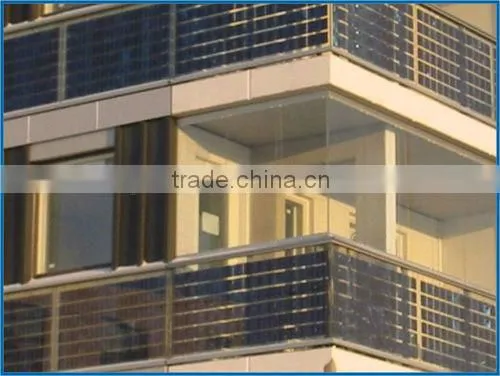

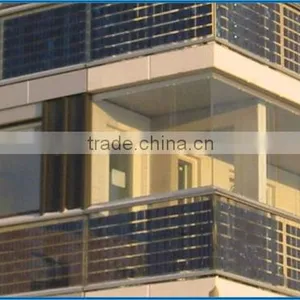

·BIPV & BAPV
Superior performance at hight temperatures
·Excellent performance even when partially shaded
·Built-in strain relief reduces installation labor and improves reliablilty
·Polarized, latching connectors

·Lead-free RoHS compliant design



Application Criteria:
Suitable for installtion on clean, dry approved substrates at ambient temperatures above 10°C



Roof Requirements:
Maximum slope of 60°
Install in areas free of water pooling
