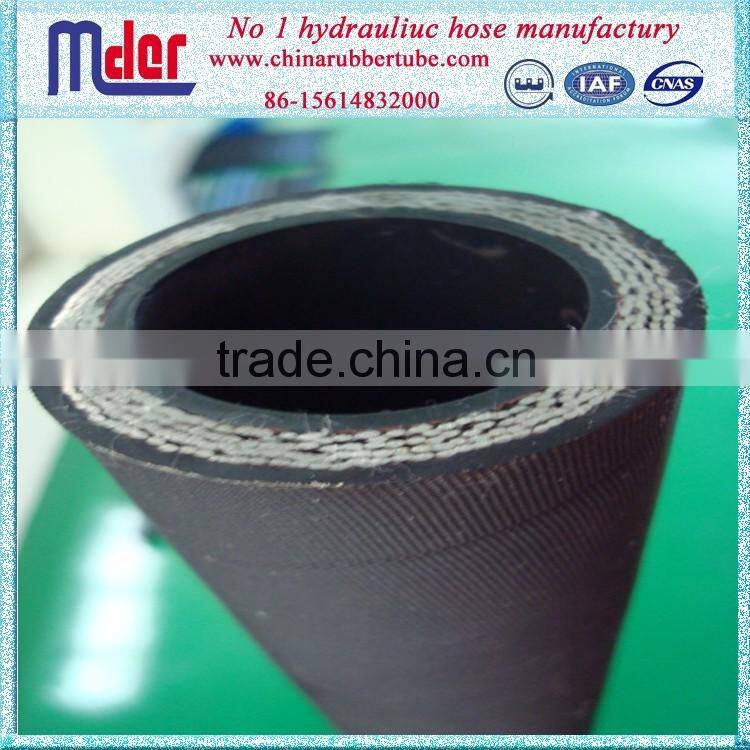

high quality 4sp spiraled hydraulic rubber hose manufacturers
Recommended for:High pressure hydraulic oil lines for applications with crude oils, fuel oils,lubricating oils and gasoline.
Tube:Black, oil resistant,oil resistant synthetic rubber
Reinforcement: four plies of spirally wrapped high tensile steel wire.
Cover:Black, oil and weather resistant synthetic rubber
Temperature: -40℃ -- +100℃(-40℉ -- +212℉)
| M-RS9 (SAE 100 R9) High pressure, four spiral steel wire reinforced hydraulic hose | ||||||||||||||||
| Type | SIZE | SIZE | ID | WD | OD | WP | BP | min BR | WT | |||||||
| A TYPE | AT TYPE | |||||||||||||||
| mm | inch | Min | Max | Min | Max | Min | Max | Max | Mpa | Psi | Mpa | Psi | Inch | mm | Kg/m | |
| RS9-06 | 10 | 3/8 | 9.3 | 10.1 | 16.9 | 18.0 | 20.6 | 22.2 | 21.1 | 31.5 | 4570 | 126 | 18270 | 4.92 | 125 | 0.70 |
| RS9-08 | 12.5 | 1/2 | 12.3 | 13.5 | 19.4 | 21.0 | 23.8 | 25.4 | 24.3 | 28 | 4060 | 112 | 16240 | 7.09 | 180 | 0.83 |
| RS9-12 | 19 | 3/4 | 18.6 | 19.8 | 26.6 | 28.2 | 30.6 | 32.2 | 31.9 | 21 | 3045 | 84 | 12180 | 9.45 | 240 | 1.30 |
| RS9-16 | 25 | 1 | 25.0 | 26.4 | 34.5 | 36.1 | 38.5 | 40.9 | 40.5 | 21 | 3045 | 84 | 12180 | 11.81 | 300 | 1.70 |
| RS9-20 | 31.5 | 1 1/4 | 31.4 | 33.0 | 43.3 | 45.6 | 49.2 | 52.4 | 50.7 | 17.5 | 2540 | 70 | 10150 | 16.54 | 420 | 3.08 |
| RS9-24 | 38 | 1 1/2 | 37.7 | 39.3 | 49.6 | 52.0 | 55.6 | 58.7 | 147 | 2030 | 56 | 8120 | 19.69 | 500 | 4.30 | |
| RS9-32 | 51 | 2 | 50.4 | 52.0 | 63.9 | 66.2 | 69.9 | 73.0 | 14 | 2030 | 56 | 8120 | 25.98 | 660 | 5.63 | |
Shipment:
packing:
Our Services
We can offer OEM Services
We can provide FREE SAMPPLE for our customers
We can crimp hose assembly for our customers.
We welcome clients to visit our factory leading to better understanding of our production.
FAQ
1.How to get free samples ?
A: Send your address ,your telphone number ,post code ,and express account number to our mail box .and told us which model of samples you need .
2.Who pay for the express cost ?
A: We can support you free samples each model 1-3 pcs ,and we do not pay for express cost .
3.How to pay ?
A:We support transfer money by all kinds of ways
skype: makanlee
whatsapp: 0086 15614832000
wechat: 15614832000
