Detail infomation
Nmae: cola inection crate mould
Mould material: 45#, 50#, P20, H13, 718, 2738, NAK80, S136, SKD61 etc.
Mould base: DME,LKM, HASCO ect
Cavity: Single/multi,as customer's requirement
Runner: Hot/cold
Design software: UG, PROE, CAD, CAXA ect.
Plastic material: PP, PC, PS, PE, PU, PVC, ABS, as customer's requirement
Mould life:as customer choose whice steel material
Delivery time: usually 40-50 days,as mould structure
Specification: depends on customer's requirements
Mould process step
mould name: cola inection crate mould
Step 1: Hold review meeting for mould.
Step 2: The mould drawing accoring the meeting result.
Step 3: Do the mould-flow, analysis gate location and injection status.
Step 4: Process the mould, each step will be inspected by the inspector. according the our stan dard or customer requirement.
Step 5: Testing the mould and the parameter will be recorded by the inspector.
Step 6: packing and delivery the mould to customer by air or sea.
Step 7: one-year after sell service.
Below is some record form for your reference:
1< mould review form >
2< mould inspection form >
3< mould test parameter form >
4< Mould Instructions >and so on.
Detail information of mould steel:
| Mould material | mould hardness | mould life |
| P20 | HRC 29-33 | 300000 shot |
| H13 | HRC >43 | 1000000 shot |
| 718 | HRC 30-36 | 500000 shot |
| S136 | HRC 48-52 | 500000 shot |
| 2344 | HRC >48 | 800000 shot |

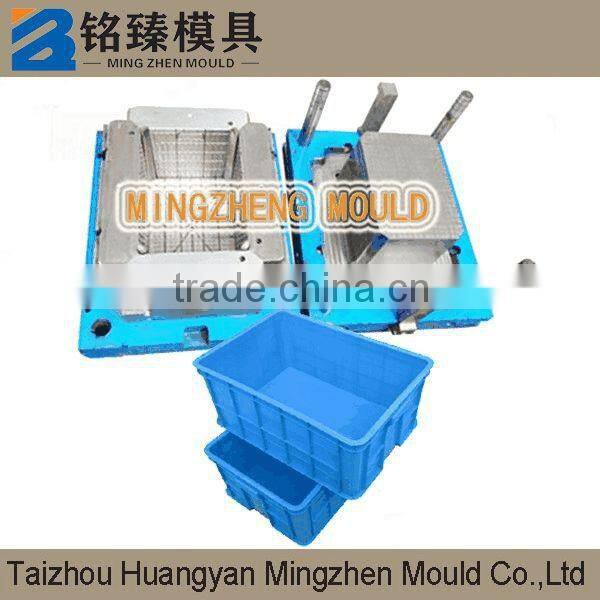

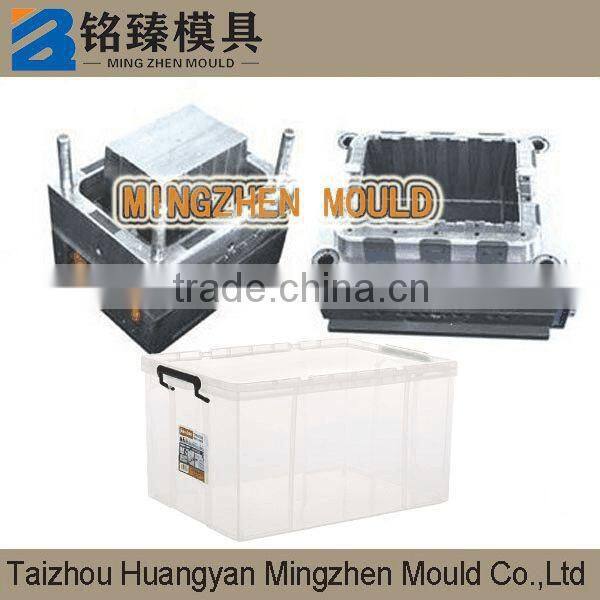

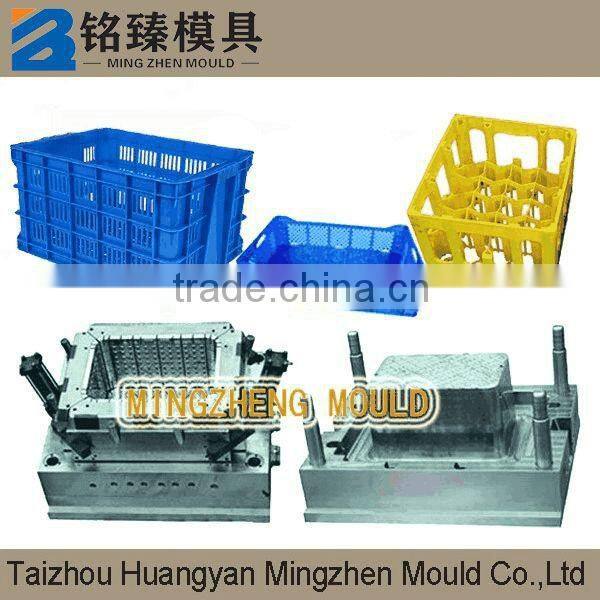

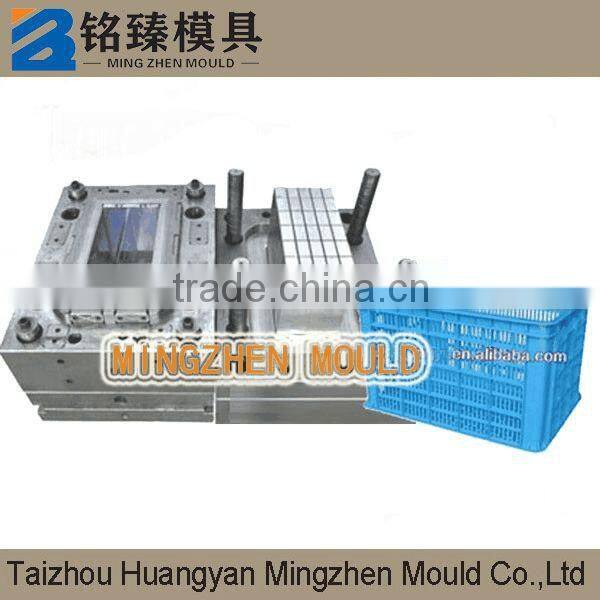

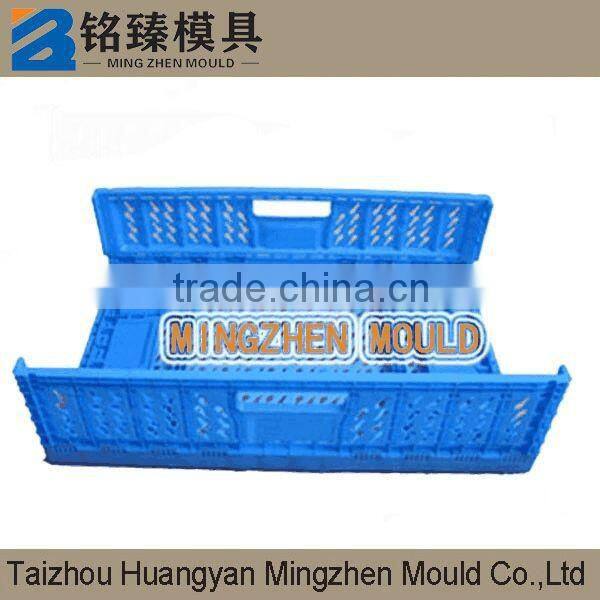

Mould Show
Anti-rust oil is painted first, then Plastic film, and finally wooden case outside.Shipping by sea or air,as custom require,7 days after sample approved
Free product design&mould design 2D/3D
Free sample delivery,3 times mould test
Every week update production informations.
Mould one year quarantee in normal condition use,Mould full-life technique support.
1:Which kind information need for cola inection crate mould
1),Sample photo with size or 2D/3D design
2),which plastic: PPor PE
3), Cavity quantity:single or multi
4), Runner type, cold or hot
5),Mould steel type,P20, 718, 2738,H13,S136,2316,an so on.
P20: mould life 300,000shots
718,2738: mould life 500,000shots (High polish)
H13,S136,2316: mould life 1,000,000(Hrc48-52)
6),Injection machine parameter or plate size(tie rod distance)
2:Delivery time of cola inection crate mould
3~15 days for mould design, 45~60 days for mould production after deposit payment and mould design confirmed
3:Payment Terms:TT, Western Union and so on
4:Shipping Type:By sea or air
5:Guarantee:One year guarantee
6.MingZhen mould advantage
| 1).Professional in make all kinds injection plastic mould |
| 2).High quality and competitive price. |
| 3).Continuance service and technical support. |
| 4).Rich experienced skilled workers. |
| 5).Professional moulding designer. |
| 6).High quality,reliability and long product life. |
| 8).Mature,perfect and excellence |
| 9).On-time delivery |
| |

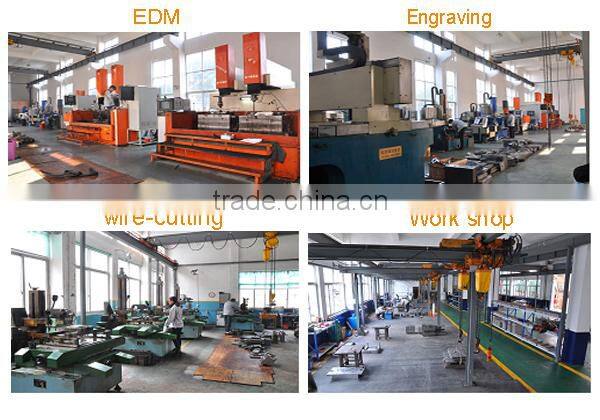

Company profile
