Help CenterUsed Tire Pyrolysis to Crude Oil Equipment With 35~60% High Oil Yield
Related Products
-
2014 the Most Popular Green Energy WASTE Plastic Refining to Oil PlantUS$ 25,000 - 45,000MOQ: 1 Set -
High Benefit New Design Most Advanced Pyrolysis Plant for Used PlasticsUS$ 32,000 - 50,000MOQ: 1 Set
-
New Design Fully Continuous 10T/D Free Installation 45% Oil Output High Benefit Waste Plastic Pyrolysis MachineUS$ 25,000 - 45,000MOQ: 1 Set
-
New Design Fully Continuous Free Installation 45% Oil Output High Benefit Waste Tyre Pyrolysis MachineUS$ 25,000 - 45,000MOQ: 1 Set
-
Advanced Technology Fully Continuous Latest Generation 45% Oil Output High Benefit Waste Tyre Pyrolysis to Oil PlantUS$ 25,000 - 45,000MOQ: 1 Set
Specifications
for all types of raw materialshigh oil yield
energy saving
Q345R/Q245R bolier plate
ISO&CE&TUV
introduction of products

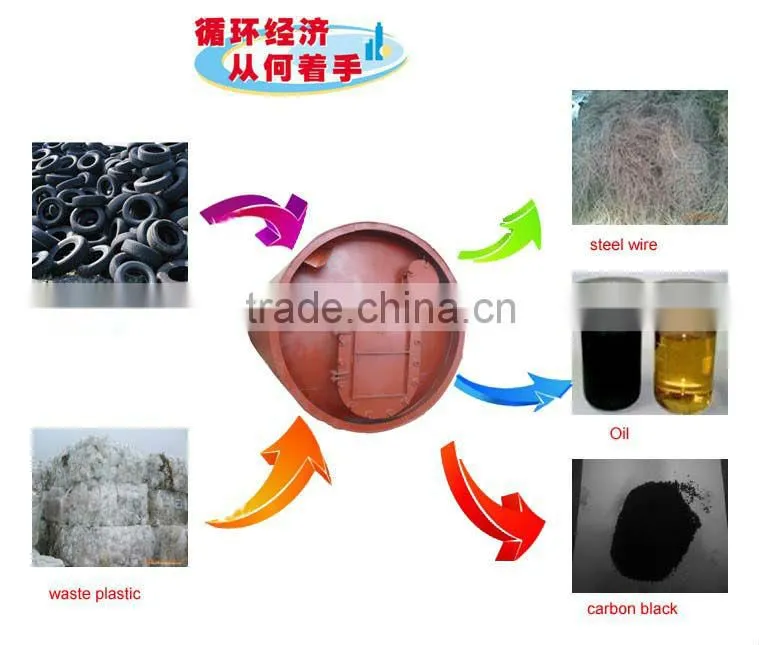

tyre pyrolysis machine oil output
Oil yield/day |
Used tyres,scrap tyres |
Big truck tyres |
45%--50% |
Car tyres |
40% |
||
Bicycles and motorcycles tyres |
30%--35% |
||
Waste plastics |
Fishing net,Safety net, farm-oriented film |
45%--50% |
|
Convenient bags , weave bags |
40% |
||
Off –cut of recycled paper mill |
20%--30% |

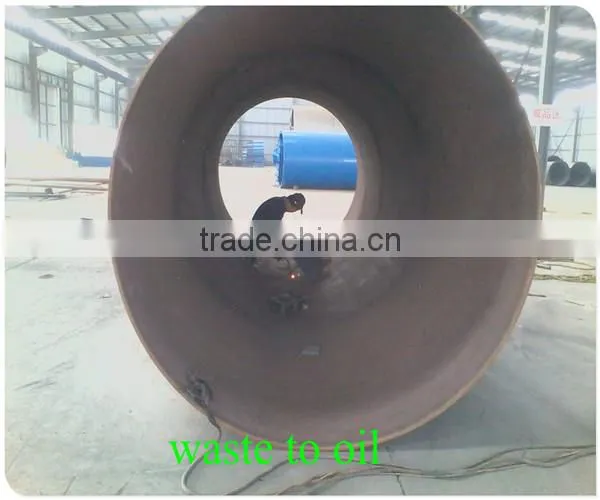

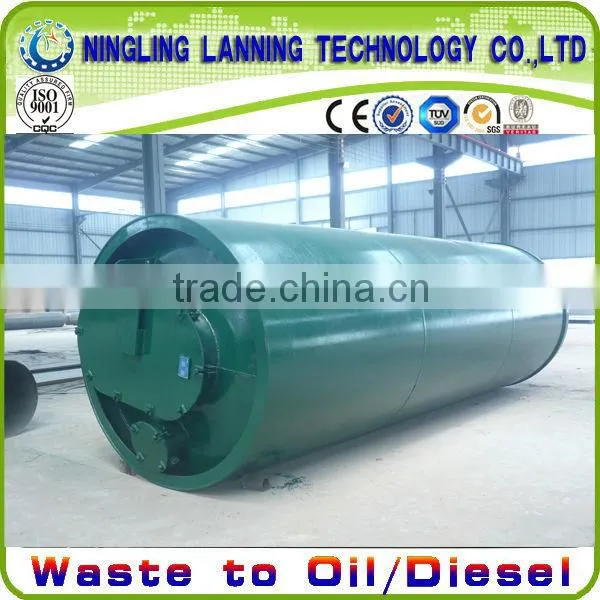

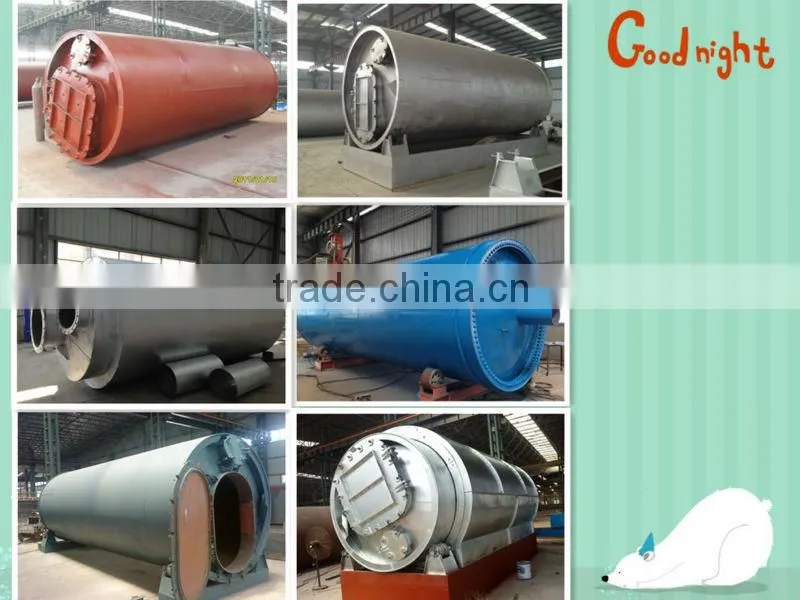

the main reactors
| material | Q345R bolier plate |
| thickness | 16mm |
| welding | weld both inside and outside with Automatic submerged arc welding machine |

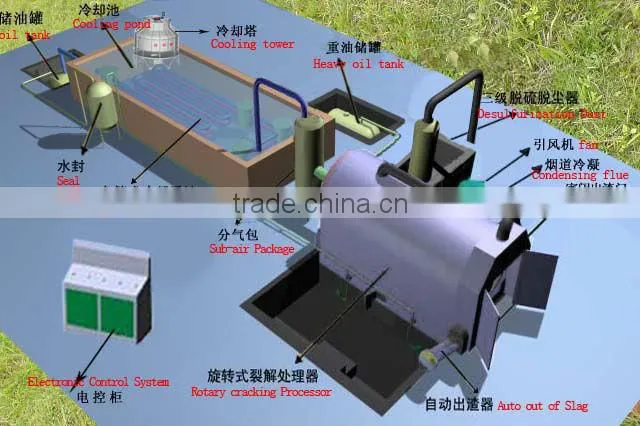

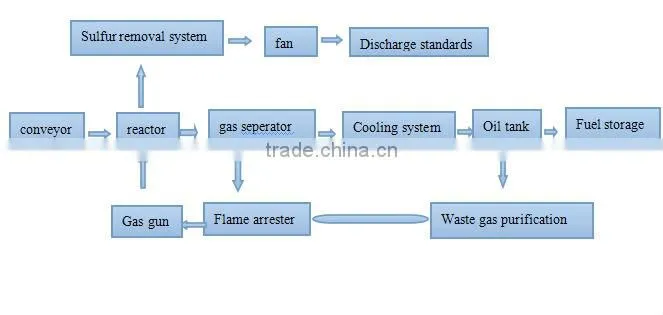

work flow
Working Process:
Firstly, make reactor rotate clockwise 0.4r/min, put raw material into reactor, close feeding door.
secondly, burned the fuel material(coal,or wood,or natural gas ,oil ) in the furnace. Reactor will be slowly heated, when the temperature reach around 180 oC, oil gas will come out .
then go to cooling system and liquid to oil.
Some incondensable gas which can't cooling down will be lead to furnace through a gas pipe. It will be used to heat reactor.
This can save your energy. Only the first 2 hours use energy for heating. After the first 2 hours mainly use gas, little energy is ok. After pyrolysis, all the oil gas come out from reactor, the temperature will fall down. Then make it rotate anticlockwise, carbon black discharging begin.
Lastly,when the temperature deduce to 50 oC, worker can opened the door of reactor take steel wire out

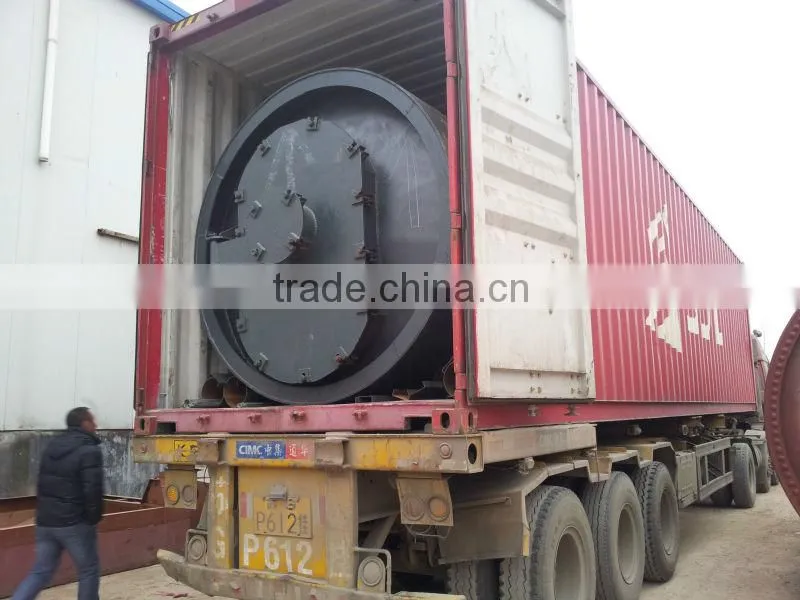

packaging and delievery
After-service
1. we will send our engineers to your factory to install the machine freely, guide your worker to operate the machine untill the production smoothly.
2.one year guarantee for the whole machine and lifelong maintenance.
3.24 hours technical supporrt by email.
our team

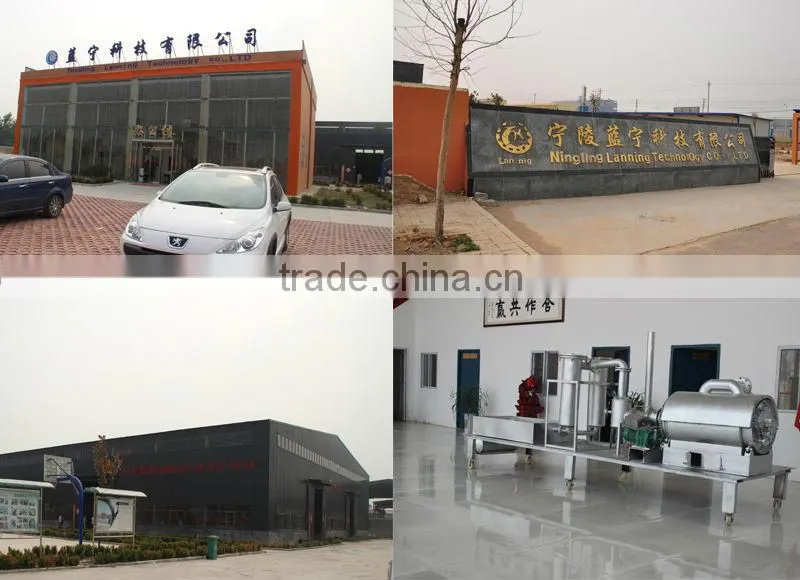

manufcturing shop

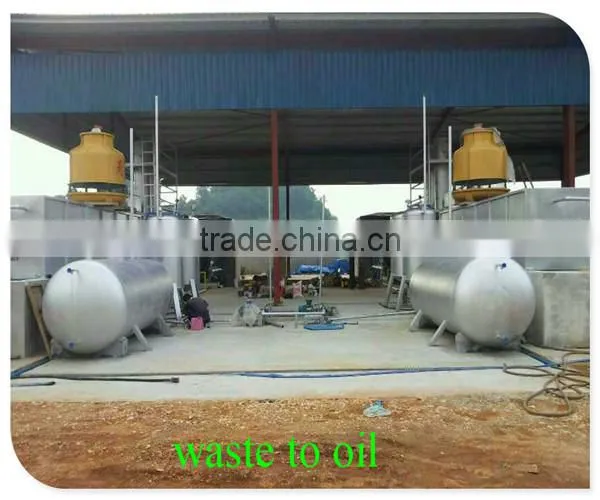

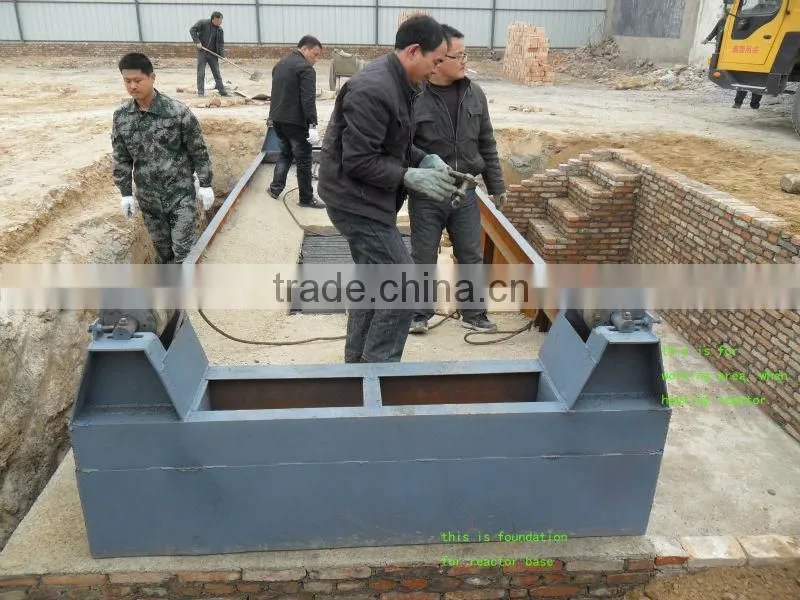

installed machine
we specialize in producing waste rubber refining machine,waste plastic refining machineand waste tyre refining machine.
the technology which produce oil by recycling waste tyres,plastics and rubbers has obtained environmental protection certificate and some mational patents.
so far,our products have been sold Southeast Asia,South Asia,North America and so on.what's more,our products are proved by the clients.
our certificates
our clients from all over the world
