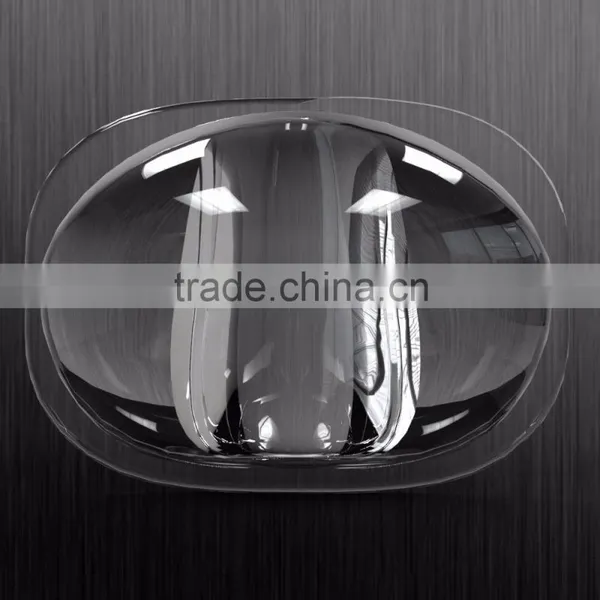

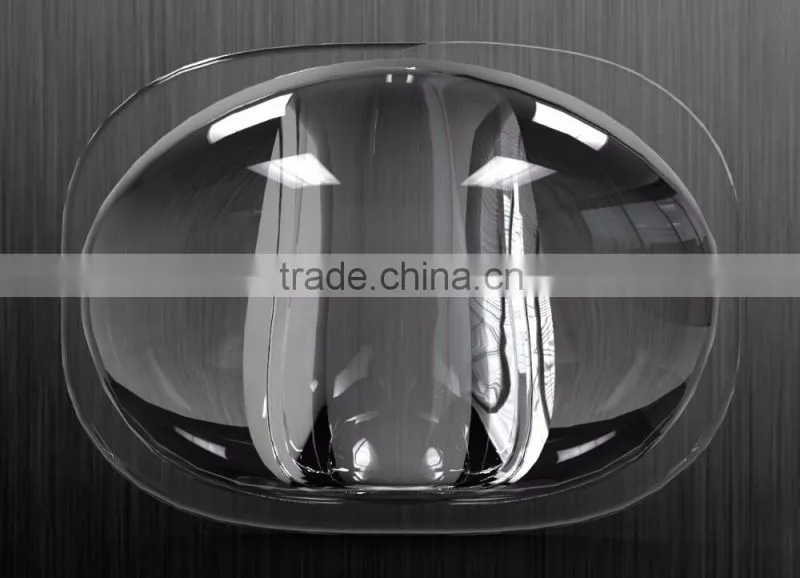

106mm Optical lens for street light
- 50000 Piece / Pieces per Month
- Qingdao
- T/T
- Optical Objective for Endoscope Repair and Maintenance
- Rod Lens for Storz Endoscope Repair and Maintanience
- Hysteroscpe Objective for Storz/ Stryker, etc. Endoscope Repair and Maintenance
- Cystoscpe Objective for Storz/ Stryker, etc. Endoscope Repair and Maintenance
- Laparoscope/ Arthroscope/ Hysteroscope Rod Lens for Storz Endoscope Repair and Maintanience
- Arthroscope Objective for Storz/ Stryker, etc. Endoscope Repair and Maintenance
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Kaich | Model Number: | KC106-2 |
Material: | Glass | Usage: | Optical | Structure: | Other, Concave-convex |
Shape: | Aspheric |
Product Description
Proffesional Optical Lens for Street Lighting
Specifications
Product type | KC106-2 | Product specification | 106*77*35.2mm |
Luminous angle | 148°×60°×15° | Road lighting solution | 50~200W |
Material | High Borosilicate3.3 | Transmittance | 91.8% |
Temperature resistance | -50℃~+520℃ | Dimensional tolerances | ±0.1 |
Product applications | Urban road lighting |
|
|
| Lav | Eav | U0 | UI | TI | Peripheral illumination coefficient |
Calculated actual values | 1.29 | 22 | 0.60 | 0.87 | 9 | 0.72 |
Value set by grade | ≥0.75 | ≥18 | ≥0.4 | ≥0.6 | ≤15 | ≥0.5 |
Satisfied/Not satisfied | √ | √ | √ | √ | √ | √ |

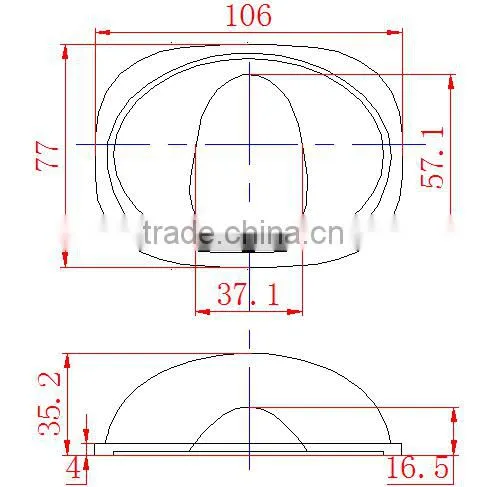

Dimensions

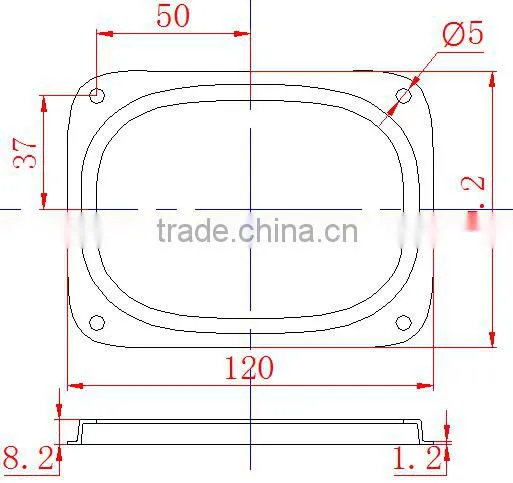

Glass lens Frame

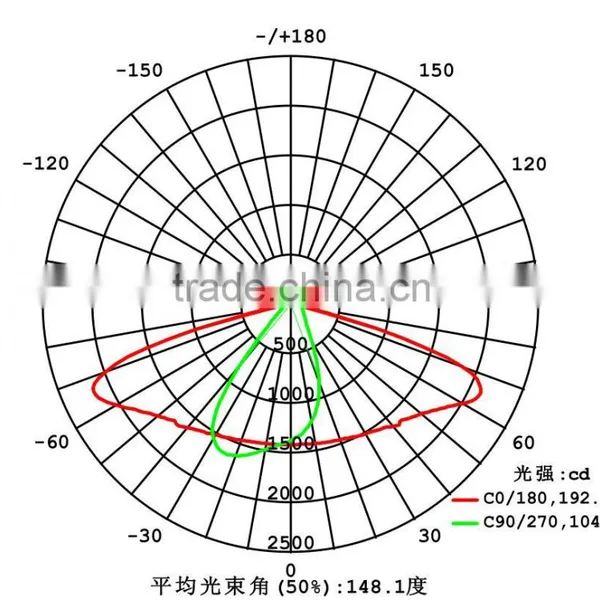

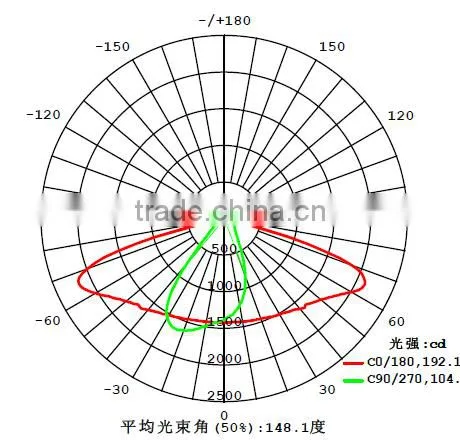

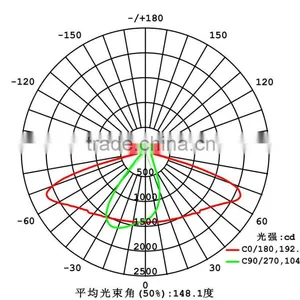

Light Distribution Curve

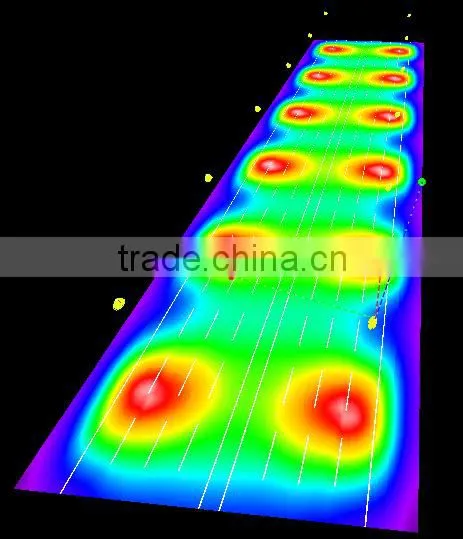

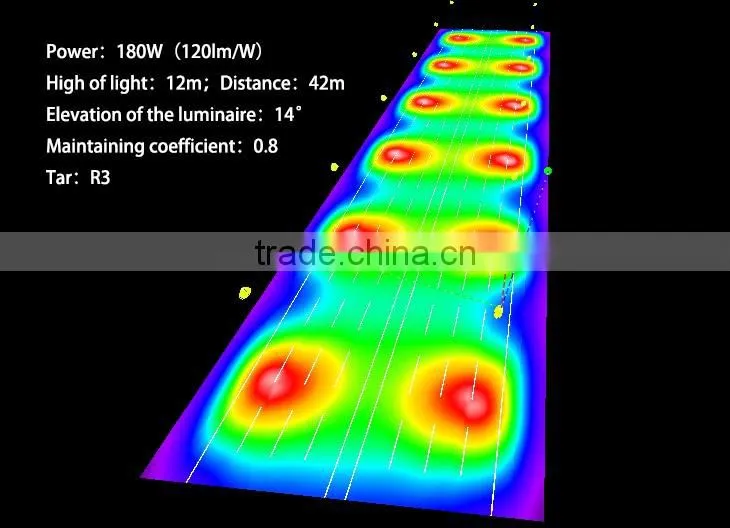

Road Lighting Simulation
Individual package & Express shipping within 10 days
Payment: 50% T/T as deposit, 50% T/T before lading
Lenses for LED street lighting (Much more models available)
Company Overview
Our Lensese are designed and developed by Kaich Optical Degisn Department, which belongs to Shandong Kaich Optical & Electronic Technology Co.,Ltd. With a 36-year field experience professional design team, our lenses have got several patents from diffrent countries and have been exported worldwide. Our lenses can be applied in LED street light, high bay light, tunnel light, LED car light and we provide customized turn-key serivce for specific purpose and circumstances.
Feel free to contact us for samples or inquiries.
